714 S (1690410) - AGCO 42" Garden Tractor, 14hp Kohler 42" Height Adjusting & Roller Group Parts Diagram

42" Garden Tractor, 14hp Kohler

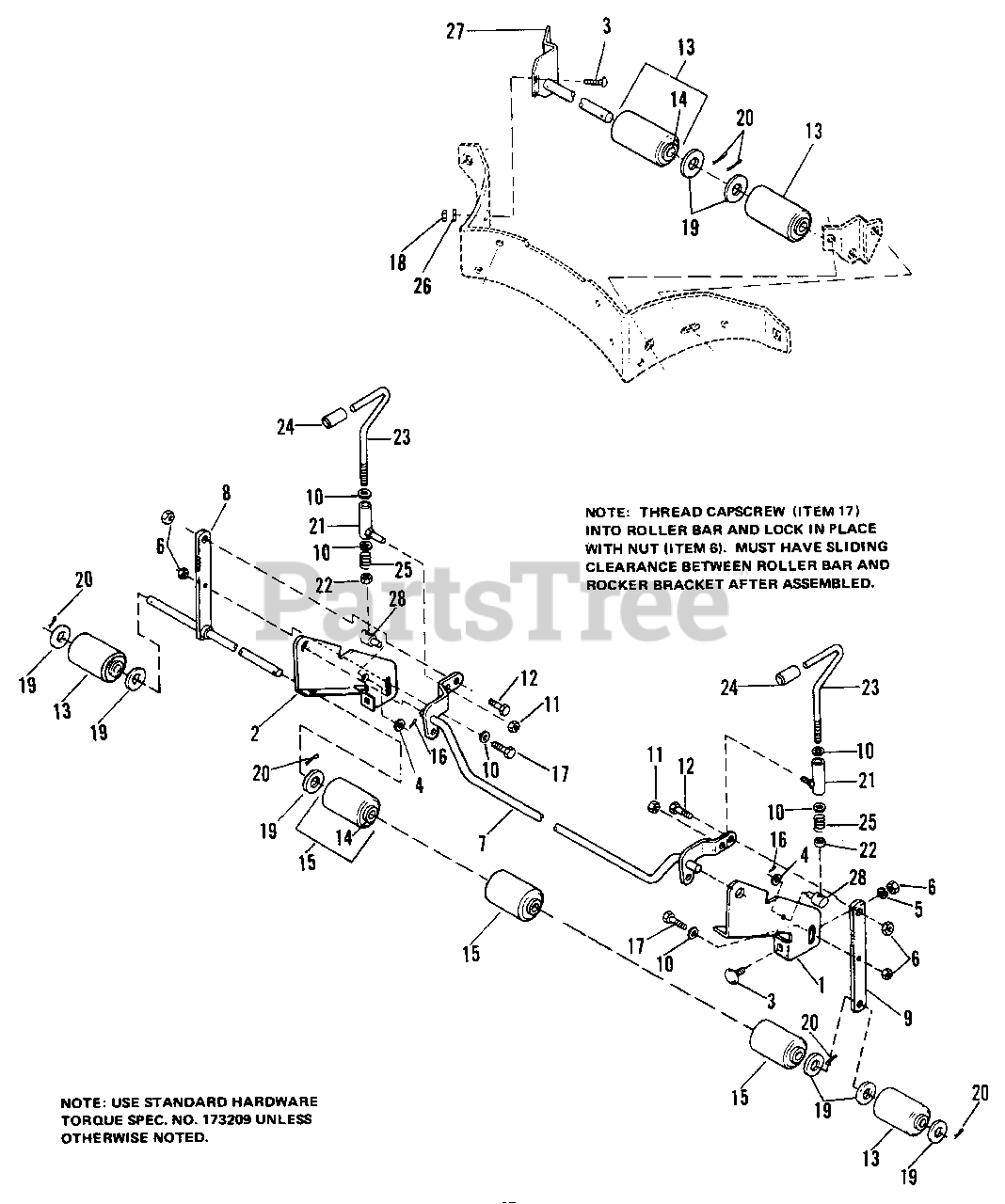

42" Height Adjusting & Roller Group Parts Diagram

  • Title

1

Simplicity 2172044SM

BRACKET, Roller, L.H.
(Superseded to 2172044ASM)

$30.99

$

Usually ships in 2-12 days

0

2

Simplicity 2172045ASM

BRACKET. Roller, R.H.

$34.99

$

Usually ships in 2-12 days

0

3

Simplicity 2820562

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

4

Simplicity 2824940

WASHER, Plain, 5/16

$

$

Not available

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

6

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

7

Simplicity 1651514SM

ROCKER ARM ASSY

$

$

Not available

8

Simplicity 1657894ASM

SHAFT ASSY, Roller

$286.99

$

Usually ships in 2-12 days

0

9

Simplicity 1657893A

BAR, Roller
(Superseded to 1657893ASM)

$35.99

$

Usually ships in 2-12 days

0

10

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1930645SM

NUT, Hex, Full Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

13

Simplicity 1668513SM

ROLLER ASSY

$10.99

$

In Stock, Qty 20+

0

14

Simplicity 2108419

BUSHING

$

$

Not available

15

Simplicity 2108432SM

ROLLER ASSY

$36.99

$

In Stock, Qty 6

0

16

Simplicity 2822000

PIN, Cotter. 3/32 x 5/8

$

$

Not available

17

Simplicity 2825204

CAPSCREW, Hex hd., 3/8-16 x 1

$

$

Not available

18

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

20

Simplicity 2818458

PIN, Cotter. 3/16 x 1

$

$

Not available

21

Simplicity 2108241SM

SOCKET ASSY
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

22

Simplicity 2817421

NUT, Hex, Jam, 3/8-16

$

$

Not available

23

Simplicity 1650394SM

HANDLE, Adjusting

$80.99

$

Usually ships in 2-12 days

0

24

Simplicity 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 2108360SM

SPRING

$5.49

$

In Stock, only 1 left!

0

26

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2108426SM

BRACKET & SHAFT ASSY
(Superseded to 2108426ASM)

$70.99

$

Usually ships in 2-12 days

0

28

Simplicity 2108512SM

PIVOT

$36.99

$

In Stock, only 2 left!

0
