71429 (XL 440 H) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) SPINDLE AND BLADE ASSEMBLY Parts Diagram

Lawn Tractor

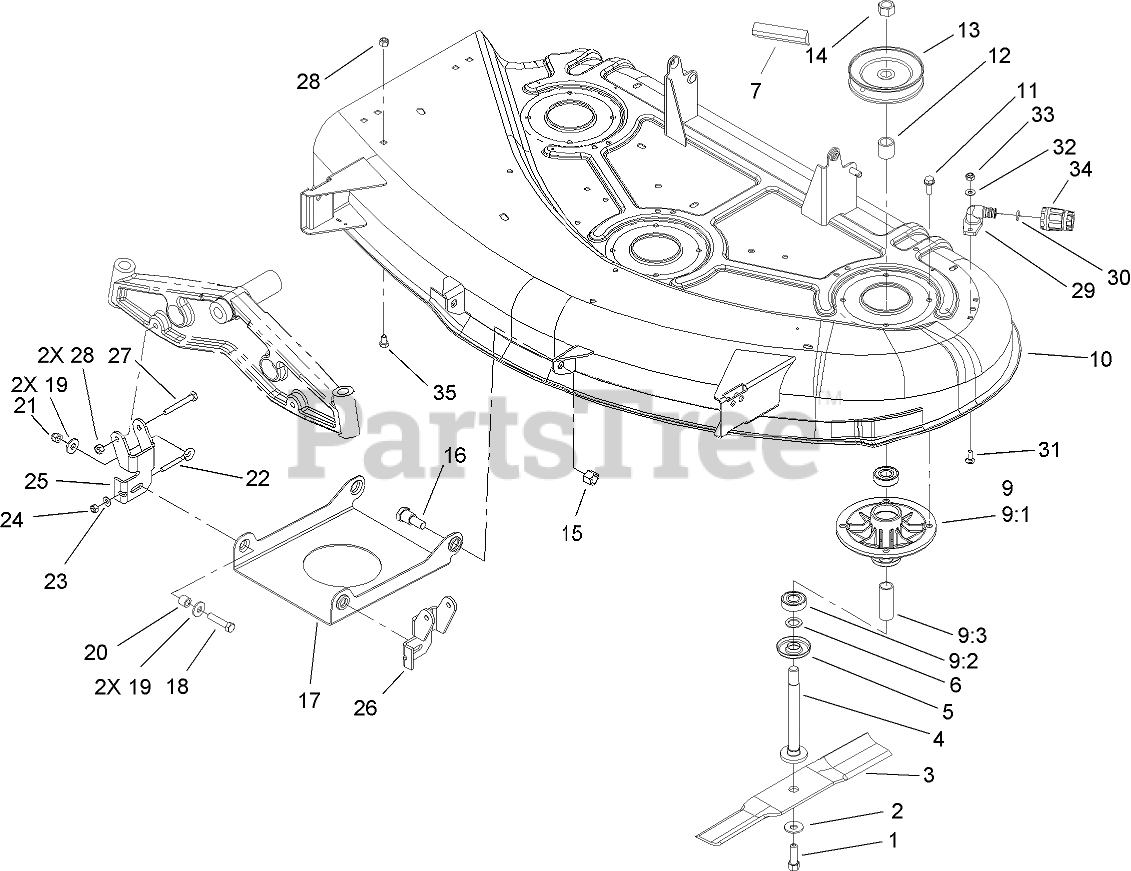

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

2

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$29.99

$

In Stock, Qty 18

0

4

Toro 80-4342

SHAFT-SPINDLE

$98.99

$

In Stock, only 2 left!

0

5

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 20+

0

6

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 20+

0

7

Toro 105-2473

V-BELT, 44IN DECK

$191.99

$

Usually ships in 3-6 days

0

9

Spindle ASM

Note: Not serviced separately

$

$

Not available

9:1

Toro 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 20+

0

9:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

9:3

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 20+

0

10

Toro 95-6107

DECK ASM

$

$

Not available

11

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

12

Toro 88-5360

SPACER

$9.99

$

In Stock, only 4 left!

0

13

Toro 107-1724

PULLEY ASM

$72.99

$

In Stock, only 1 left!

0

14

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 94-5823

BOLT-SHOULDER, HH
(Superseded to 130-8185)

$9.99

$

In Stock, only 4 left!

0

17

Toro 93-3881-03

PAN-DECK SUSPENSION, FRONT

$

$

Not available

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 20+

0

20

Toro 93-9847

SPACER

$9.49

$

In Stock, only 2 left!

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 61-9980

SCREW-ADJUSTING

$8.49

$

In Stock, only 1 left!

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 93-9849-03

BRACKET-RH

$33.99

$

Usually ships in 3-6 days

0

26

Toro 93-9848-03

BRACKET-LH

$33.99

$

Usually ships in 3-6 days

0

27

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 14

0

30

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 15

0

31

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

32

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

34

Toro 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, Qty 20+

0

35

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0
