715 - BCS America Two-Wheeled Tractor Electric Start (SN: 67963 - 84799) Parts Diagram

Two-Wheeled Tractor

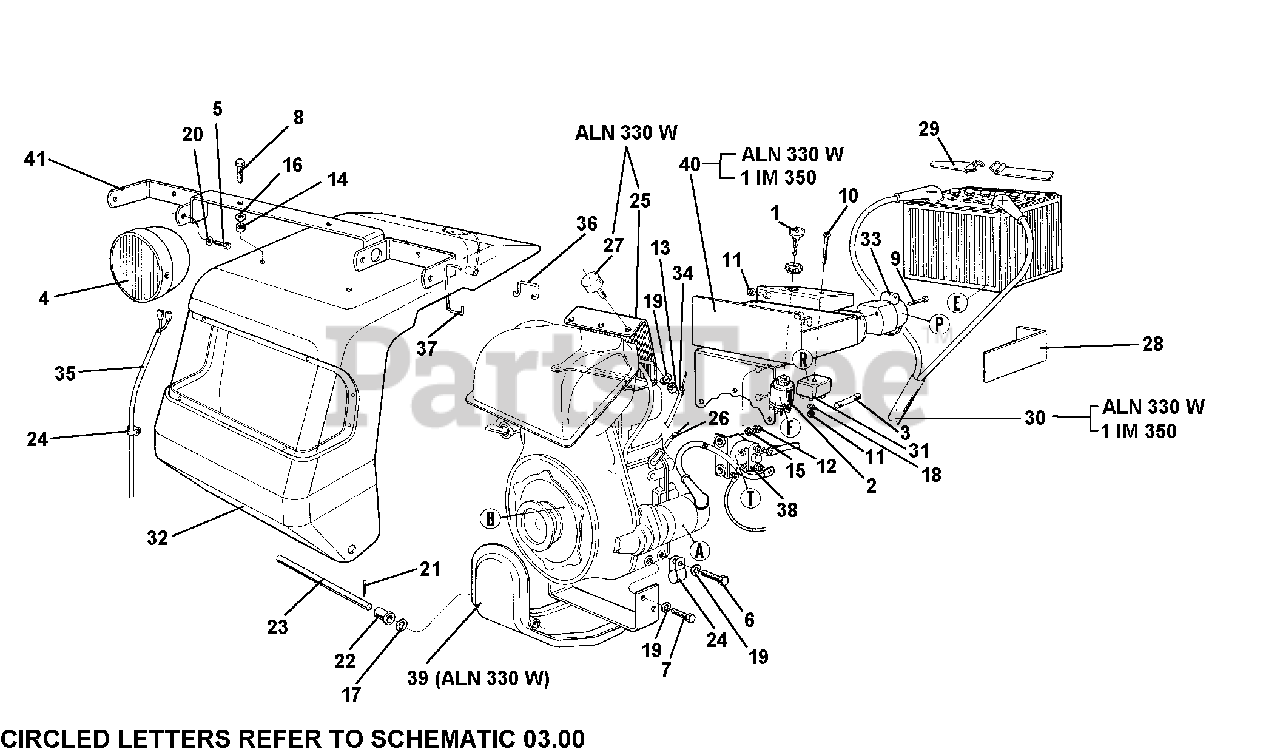

Electric Start (SN: 67963 - 84799) Parts Diagram

  • Title

1

BCS America 300.00276

KEY

$5.49

$

In Stock, only 1 left!

0

2

BCS America 300.00277

SWITCH

$127.99

$

Usually ships in 5-8 days

0

3

BCS America 300.00551

FUSE 6 X 25 25A

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 300.00701

LIGHT

$

$

Currently unavailable

5

BCS America 311.11091

SCREW TE M6 X 14

$1.49

$

In Stock, Qty 6

0

6

BCS America 311.11150

SCREW TE M8 X 12

$

$

Currently unavailable

7

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

8

BCS America 311.12151

SCREW M8 X 25

$1.49

$

Usually ships in 5-8 days

0

9

BCS America 311.52043

SCREW TCCEI M4 X 30

$

$

Currently unavailable

10

BCS America 311.61043

SCREW TC M4 X 30 UNI 6107

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 31211040

NUT M4

$0.99

$

In Stock, only 3 left!

0

12

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

13

BCS America 31211080

NUT M8

$0.99

$

In Stock, Qty 7

0

14

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

15

BCS America 314.11064

WASHER, FLAT 6.4

$0.99

$

In Stock, only 2 left!

0

16

BCS America 31411090

FLAT WASHER 9 X 24 UNI 6593

$1.49

$

Usually ships in 5-8 days

0

17

BCS America 314.11105

FLAT WASHER 10.5 X 21

$1.49

$

In Stock, only 1 left!

0

18

BCS America 314.23043

LOCK WASHER B 4.3

$0.99

$

In Stock, Qty 6

0

19

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

20

BCS America 314.31064

WASHER, LOCK AZ 6.4 DIN 6798

$0.99

$

Usually ships in 5-8 days

0

21

BCS America 34110030

PIN, COTTER A 3 X 20 UNI 1336

$1.49

$

In Stock, only 3 left!

0

22

BCS America 551.42109

BUSH

$2.99

$

Usually ships in 5-8 days

0

23

BCS America 56142110

PIN, COUPLING

$30.99

$

In Stock, only 1 left!

0

24

BCS America 561.42828

CLAMP ENGINE

$2.49

$

Usually ships in 5-8 days

0

25

BCS America 56148030

CONNECT. UPPER ELECTRIC ST.

$25.62

$

Usually ships in 5-8 days

0

26

BCS America 580.26224

CABLE & SHEATH, ACCEL.LOMBAR

$17.99

$

Usually ships in 5-8 days

0

27

BCS America 580.42131

RUBBER PAD

$24.99

$

Usually ships in 5-8 days

0

28

BCS America 580.43032

ANTISHOCK BAT

$32.06

$

Usually ships in 5-8 days

0

29

BCS America 580.43033

BATTERY STRAP

$21.36

$

Usually ships in 5-8 days

0

30

BCS America 580.43034

ELECTRIC START CABLES MC 715

$58.46

$

Usually ships in 5-8 days

0

31

BCS America 580.43036

RECTIFIER

$61.99

$

Usually ships in 5-8 days

0

32

BCS America 58043750

HOOD, PLASTIC, COMPLETE

$277.99

$

Usually ships in 5-8 days

0

33

BCS America 580.45826

7-POLE SOCKET

$59.99

$

Usually ships in 5-8 days

0

34

BCS America 580.48008

SHEATH CABLE

$12.99

$

Usually ships in 5-8 days

0

35

BCS America 580.48121

COVER CABLES

$38.99

$

Usually ships in 5-8 days

0

36

BCS America 580.48659

ELECTRIC STARTER HOOK

$

$

Currently unavailable

37

BCS America 580.48674

LONG HOOK

$9.99

$

Usually ships in 5-8 days

0

38

BCS America 581.00052

BOSCH RELAY 0332002160

$532.99

$

Usually ships in 5-8 days

0

39

BCS America 590.43023

HOOD LOWER COUPLING

$186.99

$

Usually ships in 5-8 days

0

40

BCS America 590.43025

BATT. SUPPORT COMPL.

$

$

Currently unavailable

41

BCS America 590.48117

LIGHT SUPPORT

$

$

Currently unavailable
