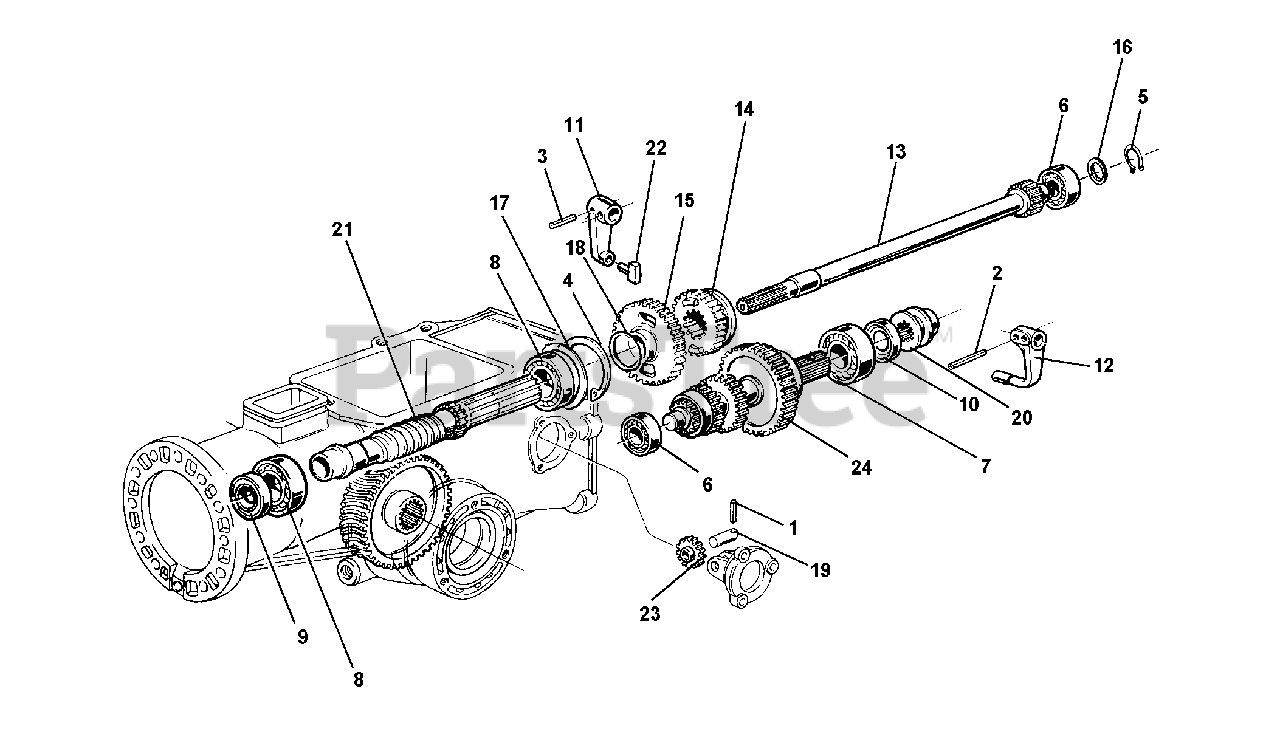

715 - BCS America Two-Wheeled Tractor Gears (SN: 79950 & Above) Parts Diagram

Two-Wheeled Tractor

Gears (SN: 79950 & Above) Parts Diagram

  • Title

1

BCS America 342.11025

PIN, LOCKING 2.5 X 22 DIN 1481

$3.49

$

Usually ships in 5-8 days

0

2

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

In Stock, Qty 5

0

3

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

In Stock, Qty 6

0

4

BCS America 351.11052

CIRCLIP, INTERN D-52

$1.99

$

In Stock, Qty 5

0

5

BCS America 351.21015

CIRCLIP

$0.99

$

Usually ships in 5-8 days

0

6

BCS America 371.11151

BEARING 15 X 35 X 11 6202

$10.99

$

In Stock, only 2 left!

0

7

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 1 left!

0

8

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 2 left!

0

9

BCS America 382.11501

SEAL, OIL 15 X 40 X 10 STANDARD

$10.99

$

In Stock, only 2 left!

0

10

BCS America 382.12001

SEAL, OIL 20 X 35 X 7 STANDARD

$9.99

$

In Stock, only 2 left!

0

11

BCS America 521.43171

LEVER, SPEED CHG SLDG GR

$49.99

$

Usually ships in 5-8 days

0

12

BCS America 523.43168

SLIDE LEVER

$86.99

$

In Stock, only 1 left!

0

13

BCS America 524.43112

CLUTCH SHAFT

$462.99

$

Usually ships in 5-8 days

0

14

BCS America 524.43155

SLIDING GEAR S.C.

$306.99

$

Usually ships in 5-8 days

0

15

BCS America 524.43156

GEAR, I SPEED

$187.99

$

Usually ships in 5-8 days

0

16

BCS America 561.43932

WASHER 15.1 X 25 X 2

$1.99

$

In Stock, only 1 left!

0

17

BCS America 563.48056

RING C-72

$2.99

$

Usually ships in 5-8 days

0

18

BCS America 563.48077

WASHER 25 X 32 X 2 C-72

$2.99

$

Usually ships in 5-8 days

0

19

BCS America 564.43074

PIN

$45.99

$

Usually ships in 5-8 days

0

20

BCS America 564.43164

SLIDER

$94.99

$

Usually ships in 5-8 days

0

21

BCS America 564.48057

WORM GEAR

$270.99

$

Usually ships in 5-8 days

0

22

BCS America 580.43086

SHOE

$10.99

$

In Stock, only 1 left!

0

23

BCS America 590.43071

REVERSE SPEED GEAR

$

$

Not available

24

BCS America 590.43159

P.T.O. SHAFT

$237.60

$

Usually ships in 5-8 days

0
