715 - BCS America Two-Wheeled Tractor Wheel Axel (SN: 40000 & Above) Parts Diagram

Two-Wheeled Tractor

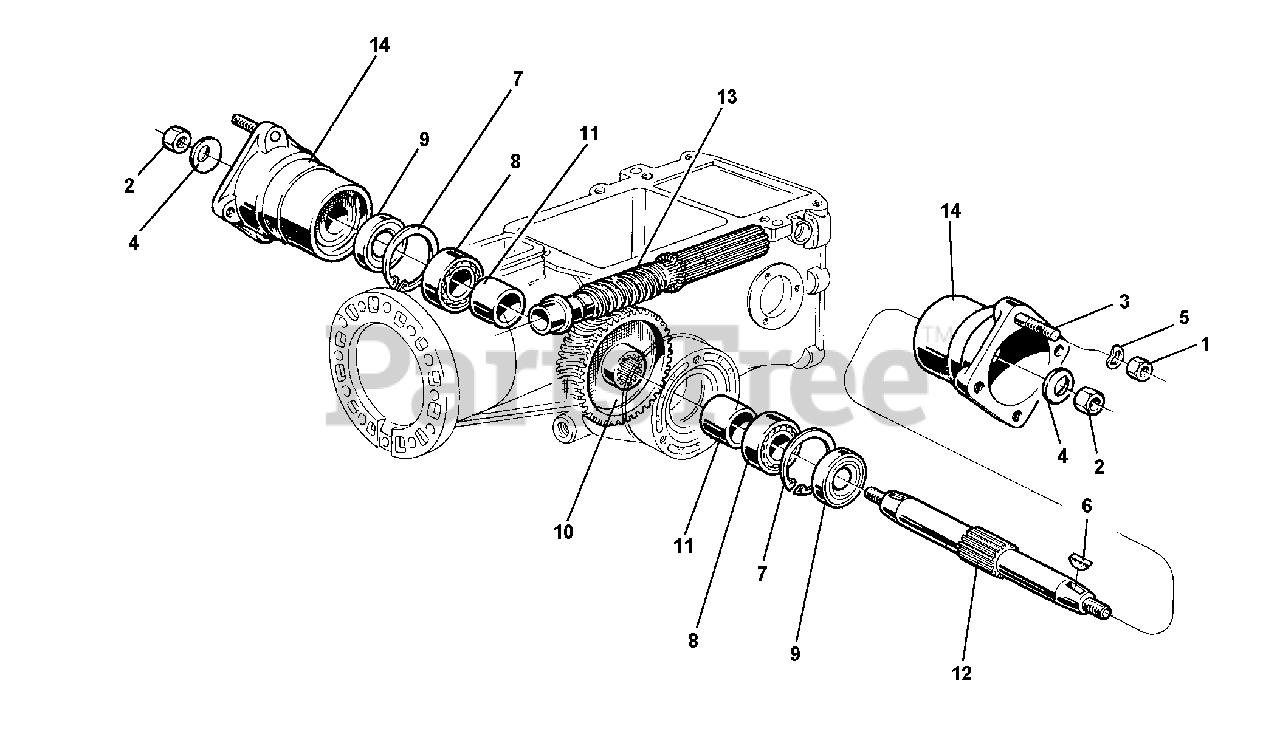

Wheel Axel (SN: 40000 & Above) Parts Diagram

  • Title

1

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 2 left!

0

2

31241120

NUT, SELF LOCKING M12

$

$

Not available

3

BCS America 313.12102

STUD M10 X 40 X 22 X 14

$2.49

$

In Stock, only 2 left!

0

4

BCS America 31421130

SUPER WASHER 12 DIN 6796

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

6

BCS America 34311060

KEY 6 X 10 UNI 6606

$3.49

$

Usually ships in 5-8 days

0

7

BCS America 351.11052

CIRCLIP, INTERN D 52

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

9

BCS America 382.12501

SEAL, OIL 25 X 52 X 10 STANDARD

$11.99

$

Usually ships in 5-8 days

0

10

BCS America 54143090

GEAR Z 49, RH POWER TILLER

$390.99

$

Usually ships in 5-8 days

0

11

BCS America 561.43059

SPACER

$12.99

$

Usually ships in 5-8 days

0

12

BCS America 563.43058

WHEEL SHAFT

$156.99

$

Usually ships in 5-8 days

0

13

BCS America 564.48057

WORM GEAR

$270.99

$

Usually ships in 5-8 days

0

14

BCS America 590.43063

HUB, WHEEL, WITH STUDS

$175.99

$

Usually ships in 5-8 days

0
