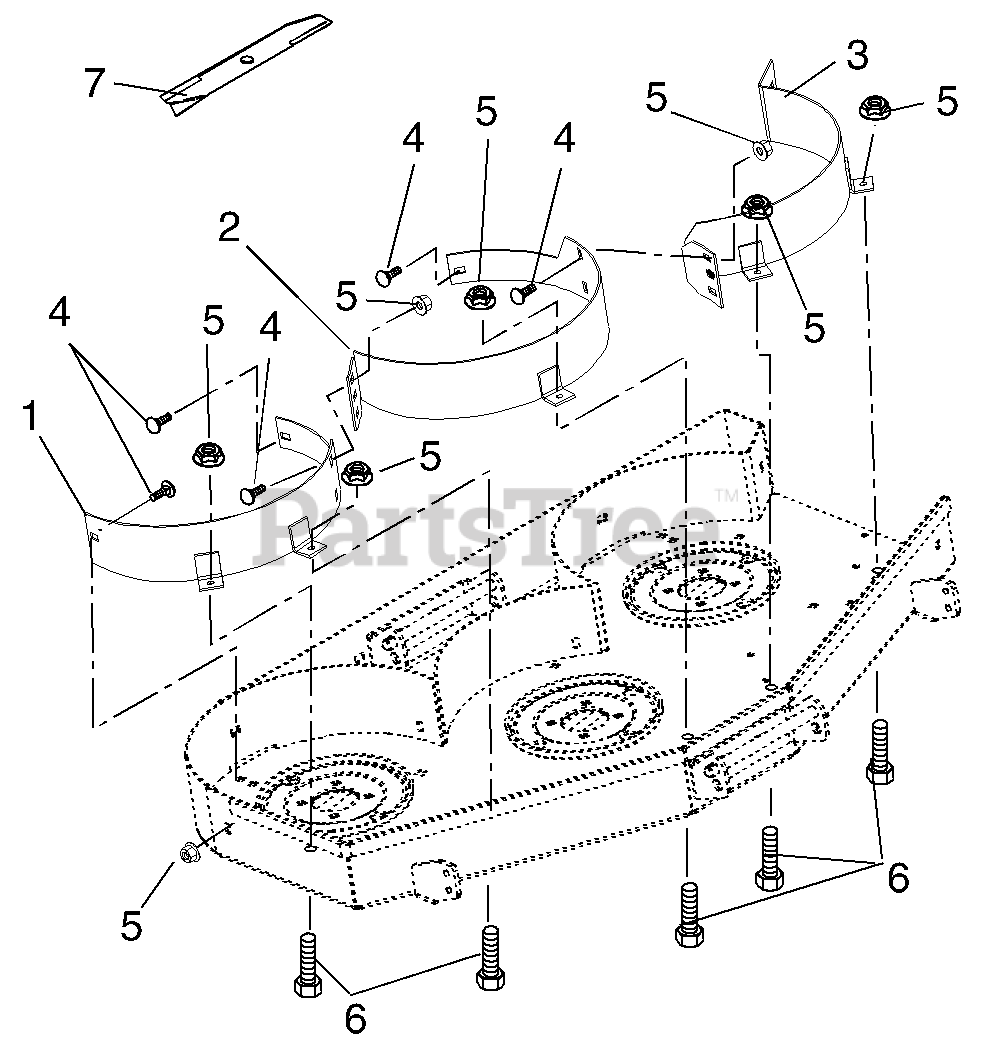

715026 - Gravely 48" Deck Mulching Kit ZT Series Mulching Kit 40-, 44-,48-,52-Inch Parts Diagram

48" Deck Mulching Kit ZT Series

Mulching Kit 40-, 44-,48-,52-Inch Parts Diagram

  • Title

1

Gravely 01576451

BAFFLE-MULCH-LEFT FRONT-40"

Note: Kit Number 715024

$67.99

$

Usually ships in 4-12 days

0

1

Gravely 01573051

BAFFLE-MULCH-LEFT FRONT-44"

Note: Kit Number 715025

$61.99

$

Usually ships in 4-12 days

0

1

Gravely 01574351

BAFFLE-MULCH-LEFT FRONT-48"

Note: Kit Number 715026

$63.99

$

Usually ships in 4-12 days

0

1

Gravely 01575351

BAFFLE-MULCH-LEFT FRONT-52"

Note: Kit Number 715027

$

$

Not available

2

Gravely 01576551

BAFFLE-MULCH-CENTER FRONT-40"

Note: Kit Number 715024

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 01573151

BAFFLE-MULCH-CENTER FRONT-44"

Note: Kit Number 715025

$50.99

$

Usually ships in 4-12 days

0

2

Gravely 01574451

BAFFLE-MULCH-CENTER FRONT-48"

Note: Kit Number 715026

$

$

Not available

2

Gravely 01575451

BAFFLE-MULCH-CENTER FRONT-52"

Note: Kit Number 715027

$

$

Not available

3

Gravely 01576651

BAFFLE-MULCH-RIGHT FRONT-40"

Note: Kit Number 715024

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 01573251

BAFFLE-MULCH-RIGHT FRONT-44"

Note: Kit Number 715025

$48.99

$

Usually ships in 4-12 days

0

3

Gravely 01574551

BAFFLE-MULCH-RIGHT FRONT-48"

Note: Kit Number 715026

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 01575551

BAFFLE-MULCH-RIGHT FRONT-52"

Note: Kit Number 715027

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 06227900

BLT-RDHDSQSHNK .31-18X.62 BKZC
(Superseded to 06212200)

Note: Kit Number All

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

Note: Kit Number All

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07068000

BLT SERHFWH .31-18X.62 GR5BKZC
(Superseded to 07047100)

Note: Kit Number All

$1.99

$

In Stock, only 3 left!

0

7

Gravely 01600500

BLADE-40" MULCHING (13.83)
(Superseded to 00272800)

Note: Kit Number 715024

$26.99

$

In Stock, Qty 20+

0

7

Gravely 01600000

BLADE-44" MULCHING (15.5)
(Superseded to 00272900)

Note: Kit Number 715025

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 04920600

BLADE - MULCHING (16.25)
(Superseded to 05244100)

Note: Kit Number 715026

$27.99

$

In Stock, Qty 17

0

7

Gravely 04917900

BLADE - MULCHING (18.00")
(Superseded to 00273100)

Note: Kit Number 715027

$26.99

$

In Stock, Qty 20+

0

Gravely 715024

Mulching Kit 40" Deck

$

$

Not available

Gravely 715025

Mulching Kit 44" Deck

$

$

Not available

Gravely 715026

Mulching Kit 48" Deck

$

$

Not available

Gravely 715027

Mulching Kit 52" Deck

$

$

Not available
