715043 - Ariens RER & Sport Zoom Hood Kit Engine Hood Kit Parts Diagram

RER & Sport Zoom Hood Kit

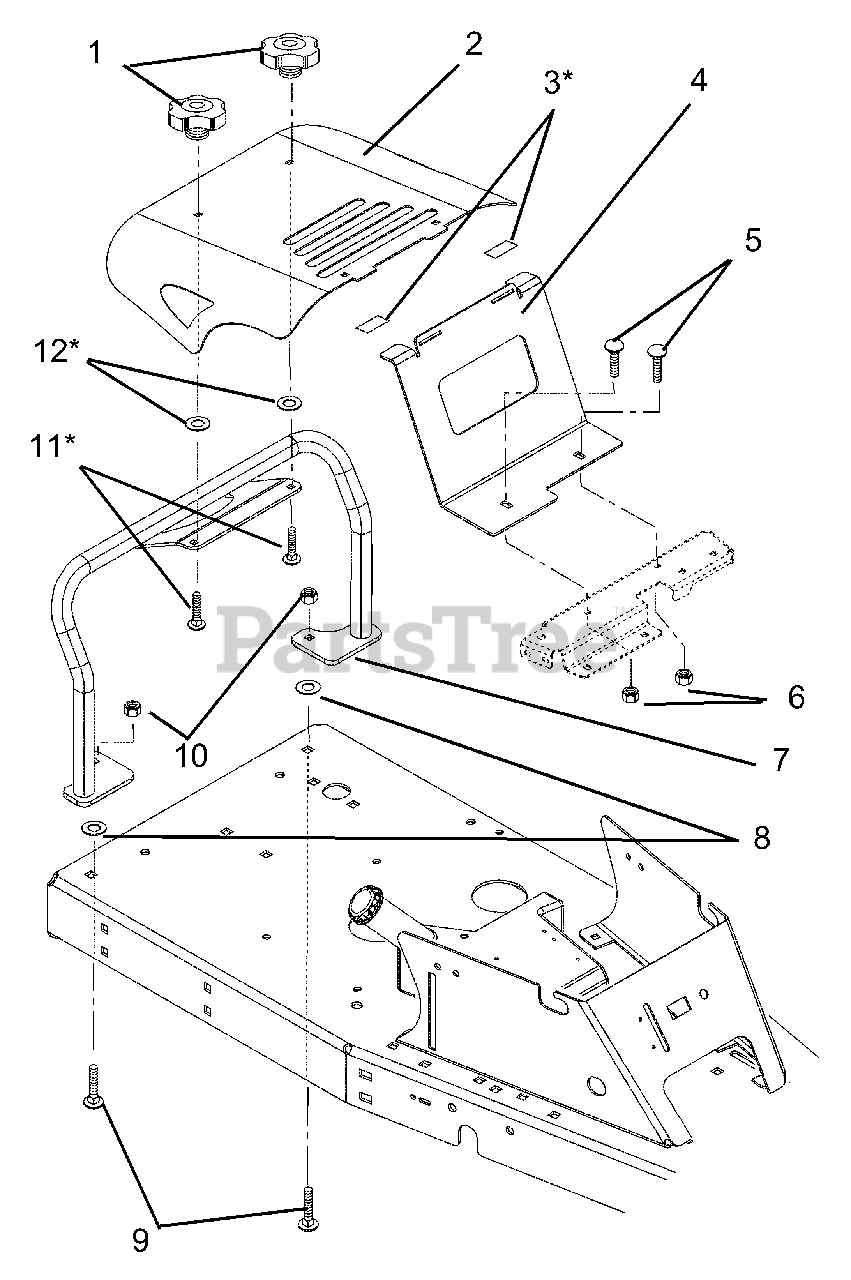

Engine Hood Kit Parts Diagram

  • Title

1

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

2

Ariens 02771459

ENGINE-HOOD ARIENS
(Superseded to 71504300)

Note: Kit number 71504300.

$

$

Not available

2

Ariens 02771453

HOOD ENGINE GRAVELY

Note: Kit number 71504400.

$

$

Not available

3

Ariens 00928300

TAPE-FOAM .12X1.00 VINYL

Note: Items come pre-assembled.

$

$

Not available

4

Ariens 02771551

BRACKET-HOOD SUPPORT

$

$

Not available

5

Ariens 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 02771651

WLDM'T TUBE

$

$

Not available

8

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

Note: Items come pre-assembled.

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 06514900

NUT-PUSH .312

Note: Items come pre-assembled.

$0.99

$

In Stock, Qty 20+

0
