715045 - Ariens Zoom Anti-Scalp Kit Anti-Scalp Kit 71504500 Parts Diagram

Zoom Anti-Scalp Kit

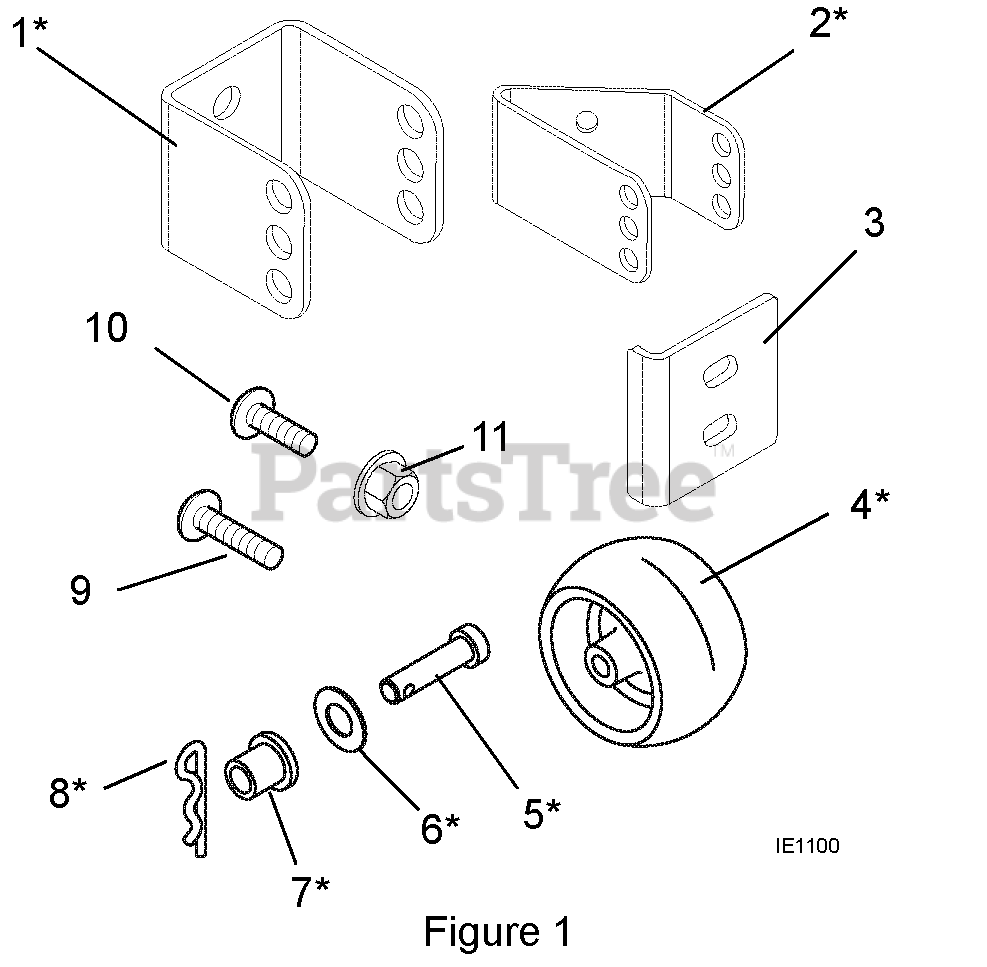

Anti-Scalp Kit 71504500 Parts Diagram

  • Title

1

Ariens 01605651

BRACKET, ANTI-SCALP

Note: These items are pre-assembled.

$

$

Not available

2

Ariens 01605751

BRACKET, ANTI-SCALP

Note: These items are pre-assembled.

$

$

Not available

3

Ariens 01606200

BKT, ANTI-SCALP FILLER 28"

Note: (28" Decks Only)

$

$

Not available

4

Ariens 02745400

ROLLER

Note: These items are pre-assembled.

$14.99

$

In Stock, Qty 14

0

5

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

Note: These items are pre-assembled.

$5.99

$

In Stock, only 1 left!

0

6

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

Note: These items are pre-assembled.

$0.99

$

In Stock, Qty 14

0

7

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

Note: These items are pre-assembled.

$1.49

$

In Stock, Qty 11

0

8

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: These items are pre-assembled.

$0.99

$

In Stock, Qty 14

0

9

Ariens 07069300

BLT-BTHD-SOCKET .38-16 X 1.00

Note: (28" Decks Only); These items are pre-assembled.

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 07069200

BLT-BTHD-SOCKET .38-16X.75

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 71504500

KIT, ANTI-SCALP

$

$

Not available
