715054 - Gravely 48" Deck Mulching Kit ZT Series Mulching Kit 40-, 44-, 48-, And 52-Inch Parts Diagram

48" Deck Mulching Kit ZT Series

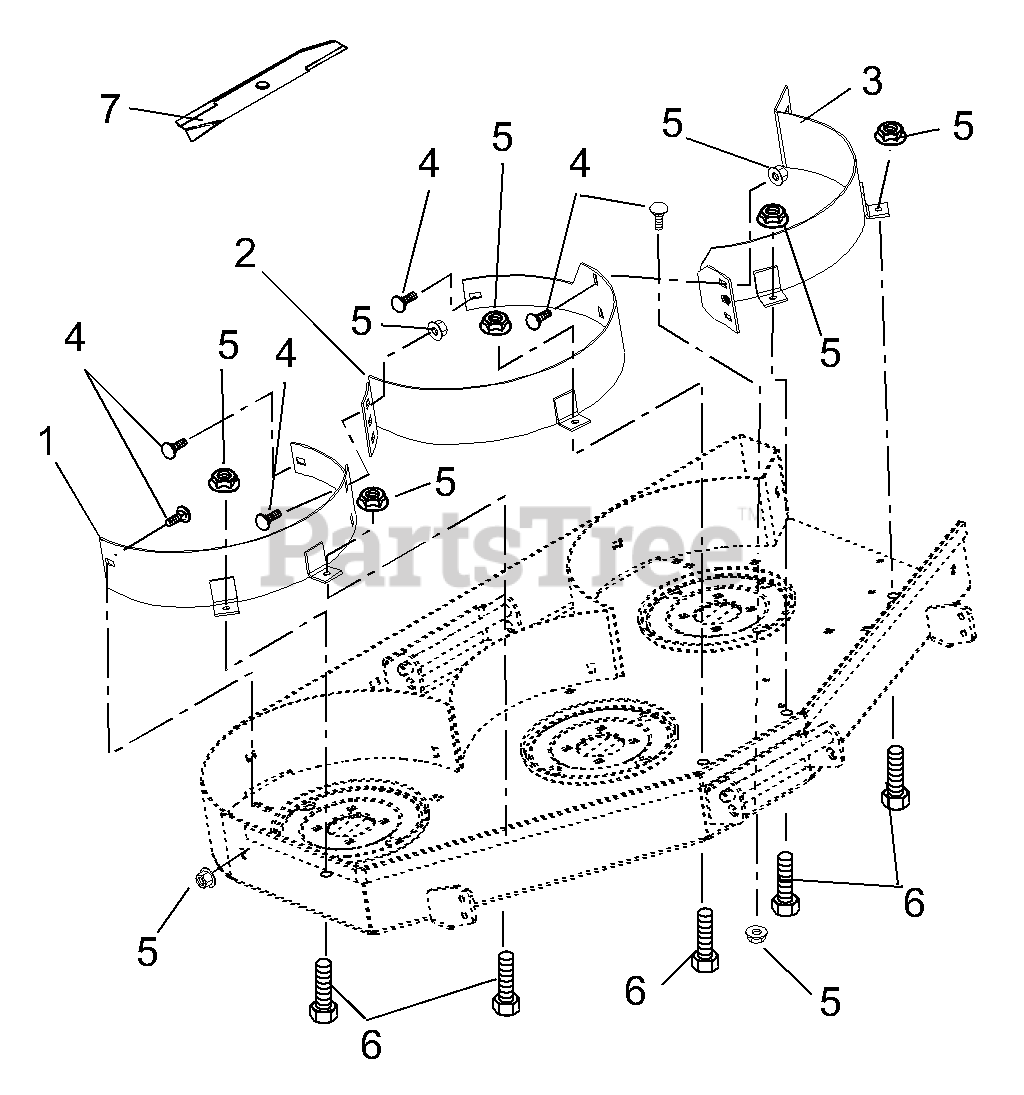

Mulching Kit 40-, 44-, 48-, And 52-Inch Parts Diagram

  • Title

1

Gravely 01576451

40-Inch Left Hand Mulch Baffle

Note: Kit Number 715052

$66.99

$

Usually ships in 4-12 days

0

1

Gravely 01573051

44-Inch Left Hand Mulch Baffle

Note: Kit Number 715053

$60.99

$

Usually ships in 4-12 days

0

1

Gravely 01574351

48-Inch Left Hand Mulch Baffle

Note: Kit Number 715054

$62.99

$

Usually ships in 4-12 days

0

1

Gravely 01575351

52-Inch Left Hand Mulch Baffle

Note: Kit Number 715055

$63.99

$

Usually ships in 4-12 days

0

2

Gravely 01576551

40-Inch Center Mulch Baffle

Note: Kit Number 715052

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 01573151

44-Inch Center Mulch Baffle

Note: Kit Number 715053

$48.99

$

Usually ships in 4-12 days

0

2

Gravely 01574451

48-Inch Center Mulch Baffle

Note: Kit Number 715054

$

$

Not available

2

Gravely 01575451

52-Inch Center Mulch Baffle

Note: Kit Number 715055

$

$

Not available

3

Gravely 01576651

40-Inch Right Hand Mulch Baffle

Note: Kit Number 715052

$83.99

$

In Stock, only 1 left!

0

3

Gravely 01573251

44-Inch Right Hand Mulch Baffle

Note: Kit Number 715053

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 01574551

48-Inch Right Hand Mulch Baffle

Note: Kit Number 715054

$75.99

$

Usually ships in 4-12 days

0

3

Gravely 01575551

52-Inch Right Hand Mulch Baffle

Note: Kit Number 715055

$17.99

$

In Stock, only 1 left!

0

4

Gravely 06227900

5/16" x 5/8" Round Head Square Neck Bolt
(Superseded to 06212200)

Note: All

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06544400

5/16" Flange Locknut
(Superseded to 06545400)

Note: All

$1.49

$

In Stock, Qty 19

0

6

Gravely 07068000

5/16" x 5/8" Hex Bolt
(Superseded to 07047100)

Note: All

$1.49

$

In Stock, only 3 left!

0

7

Gravely 00272800

40-Inch Mower Mulching Blade

Note: Kit Number 715052

$25.99

$

In Stock, Qty 14

0

7

Gravely 00272900

44-Inch Mower Mulching Blade

Note: Kit Number 715053

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 00273000

48-Inch Mower Mulching Blade
(Superseded to 05244100)

Note: Kit Number 715054

$26.99

$

In Stock, Qty 18

0

7

Gravely 00273100

52-Inch Mower Mulching Blade

Note: Kit Number 715055

$25.99

$

In Stock, Qty 20+

0

Gravely 715052

Kit Number

$

$

Not available

Gravely 715053

Kit Number

$

$

Not available

Gravely 715054

Kit Number

$

$

Not available

Gravely 715055

Kit Number

$

$

Not available
