715063 - Gravely Mini-ZT Headlight Kit ZT Series Mini-Zoom / Mini-ZT Headlight Kit 71506300 Parts Diagram

Mini-ZT Headlight Kit ZT Series

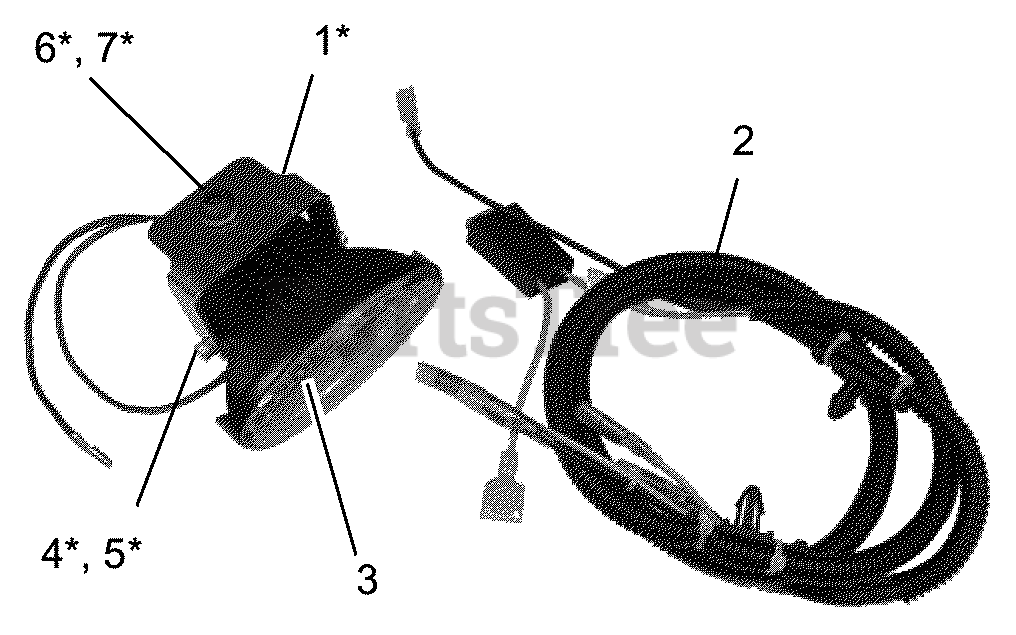

Mini-Zoom / Mini-ZT Headlight Kit 71506300 Parts Diagram

  • Title

1

Gravely 01603100

Light Bracket Weldment

Note: Assembled to (item 3).

$41.99

$

Usually ships in 4-12 days

0

2

Gravely 00379200

Mini-Z Headlight Harness
(Superseded to 00379201)

$39.99

$

In Stock, only 1 left!

0

3

Gravely 01588200

Light, Consumer Ride-On

$

$

Not available

4

Gravely 06311200

4 mm x 1 mm Regular Cone Lock Washer

Note: Assembled to (item 3).

$

$

Not available

5

Gravely 05980400

4 mm x .07 mm x 8 mm Socket Head Cap Screw

Note: Assembled to (item 3).

$1.99

$

In Stock, only 2 left!

0

6

Gravely 06308600

5/16" x 5/64" Lock Washer
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07008100

5/16"-18 x 1/2" Grade 5 Button Head Cap Screw

Note: Assembled to (item 3).

$2.49

$

Usually ships in 4-12 days

0

Gravely 71506300

Mini-Zoom / Mini-ZT Headlight Kit

$

$

Not available
