715068 - Ariens 40" Side Discharge Kit

40" Side Discharge Kit

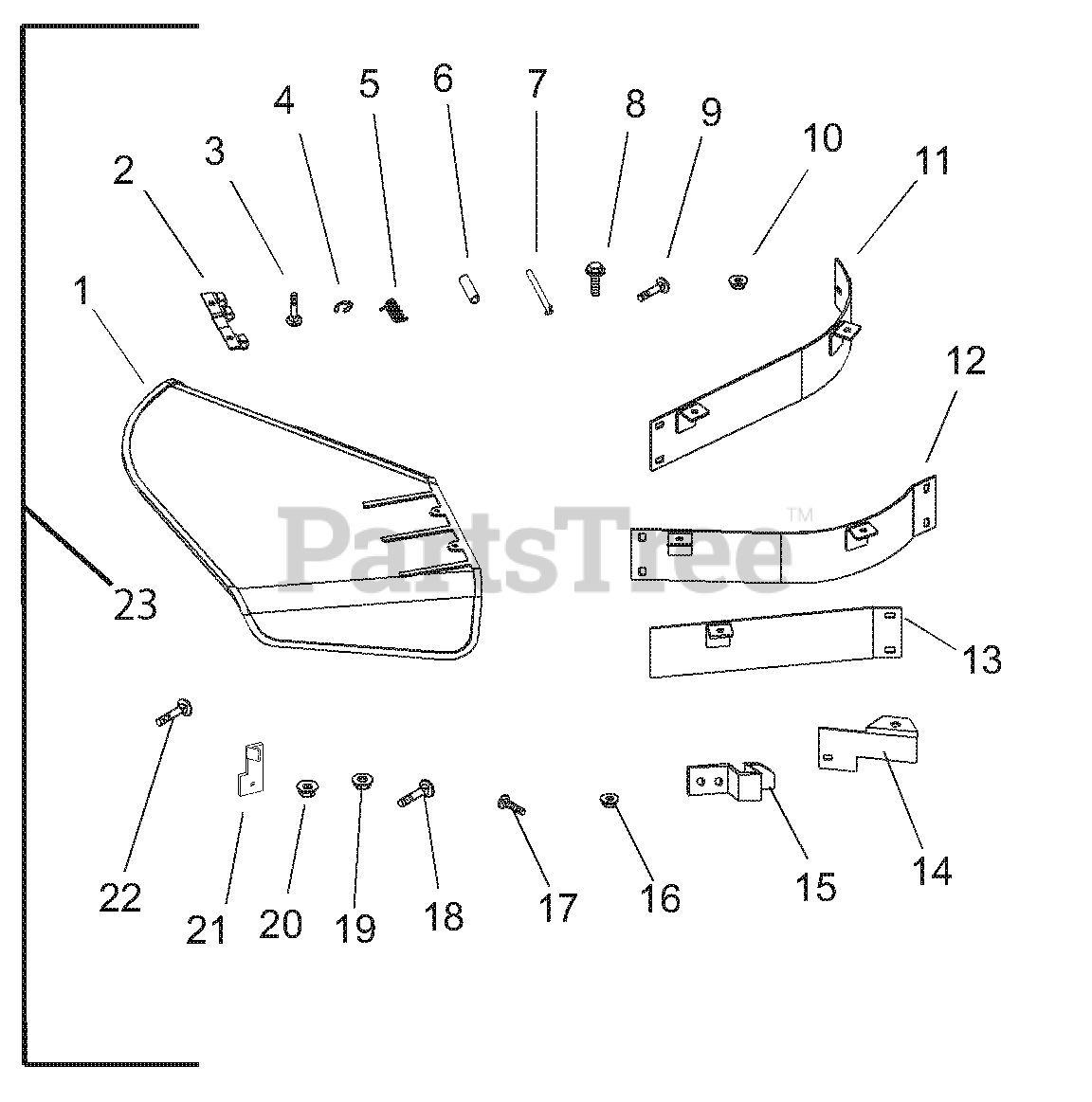

715068 - Ariens 40" Side Discharge Kit > Parts Diagrams (1) > 40-And 44-Inch Side Discharge Kit P/N 71506800, 71506900

  • Title
01585500

1

DEFLECTOR, CHUTE

Part# 01585500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

02709551

2

HINGE PLATE

Part# 02709551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

06219900

3

@BLT-RDHDSQNK .25-20X.75 G5YZ

Part# 06219900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05706300

4

RG-RTNG-EXT .312X.025

Part# 05706300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

08307200

5

SG-TORS .095X.50X 1.0

Part# 08307200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

02202900

6

BSHG-SLV .334 X .502 X 1.437

Part# 02202900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03624200

7

PIN

Part# 03624200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

07047100

8

BLT SERHFWH .31-18X.62 GR5YWZC

Part# 07047100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 7 business days

Your price: $1.31

06212200

9

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06545400

10

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400

OEM Warranty Repair Part for Ariens

Not available

01576151

11

BAFFLE - LEFT FRONT - 40"

Part# 01576151

Note: (715068)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

01572451

11

BAFFLE - LEFT FRONT - 44"

Part# 01572451

Note: (715069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 7 business days

Your price: $44.66

01576251

12

BAFFLE - CENTER FRONT - 40"

Part# 01576251

Note: (715068)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

01572551

12

BAFFLE - CENTER FRONT - 44"

Part# 01572551

Note: (715069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

01576351

13

BAFFLE - RIGHT FRONT - 40"

Part# 01576351

Note: (715068)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

01572651

13

BAFFLE - RIGHT FRONT - 44"

Part# 01572651

Note: (715069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

01576751

14

DEFLECTOR-40"

Part# 01576751

Note: (715068)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

01574651

14

DEFLECTOR-44"/48"

Part# 01574651

Note: (715069)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

01597751

15

FLAT SPRING

Part# 01597751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

06543500

16

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06220600

17

@BLT-RDHDSQNK .25-20X.50 G5YZ

Part# 06220600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06224100

18

@BLT-RDHDSQNK .38-16X1.25 G5YZ

Part# 06224100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06545500

19

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.72

06534900

20

@NUT-SPNLK-FLG .375-16 YWZC

Part# 06534900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01599151

21

BRACKET, CHUTE LOCK

Part# 01599151

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

06223900

22

@BLT-RDHDSQNK .38-16X.75 G5YZ

Part# 06223900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

71506800

23

KIT,40"CE SIDE DISCHARGE

Part# 71506800

OEM Warranty Repair Part for Ariens

Not available

71506900

23

KIT,44"CE SIDE DISCHARGE

Part# 71506900

OEM Warranty Repair Part for Ariens

Not available
