715075 - Ariens Mini-Zoom Cold Start Kit Cold Start Parts Diagram

Mini-Zoom Cold Start Kit

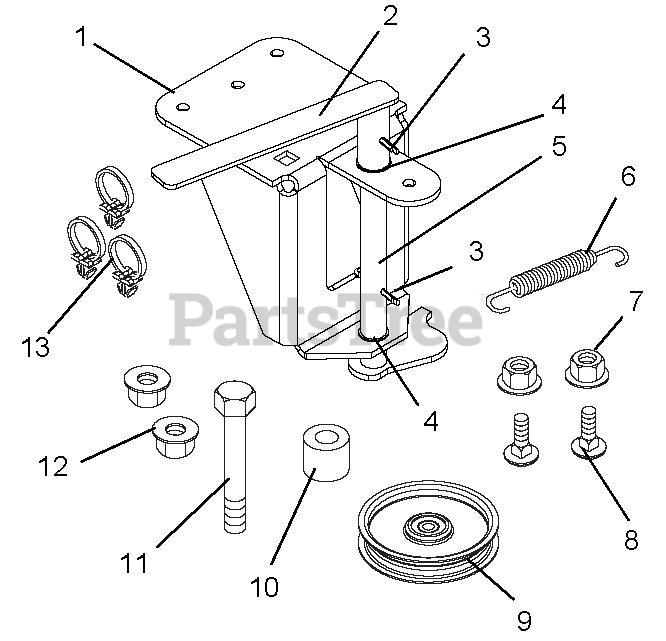

Cold Start Parts Diagram

  • Title

1

Ariens 00593151

BRACKET, COLD START

$

$

Currently unavailable

2

Ariens 00593951

HANDLE, COLD START

Note: SHIPS ASSEMBLED TO 00593131

$

$

Currently unavailable

3

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

Note: SHIPS ASSEMBLED TO 00593131

$0.99

$

In Stock, only 2 left!

0

4

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

5

Ariens 00593251

COLD START SHAFT

Note: SHIPS ASSEMBLED TO 00593131

$

$

Currently unavailable

6

Ariens 08335400

SG-TENS .051X.50X4.87

$16.99

$

In Stock, only 3 left!

0

7

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

In Stock, only 3 left!

0

9

Ariens 07512500

THROTTLE CONTROL KNOB

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 00186400

BSHG,SPCR .41 X .75 X .88 PM

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 18

0

12

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 00390100

WIRE CLIP

$3.99

$

Usually ships in 4-12 days

0
