716 H (1690211) - AGCO Garden Tractor, 16hp (SN: 4301 - 5997) Hydrostatic Pump Group (7012, 7016, & 7018) Parts Diagram

Garden Tractor, 16hp (SN: 4301 - 5997)

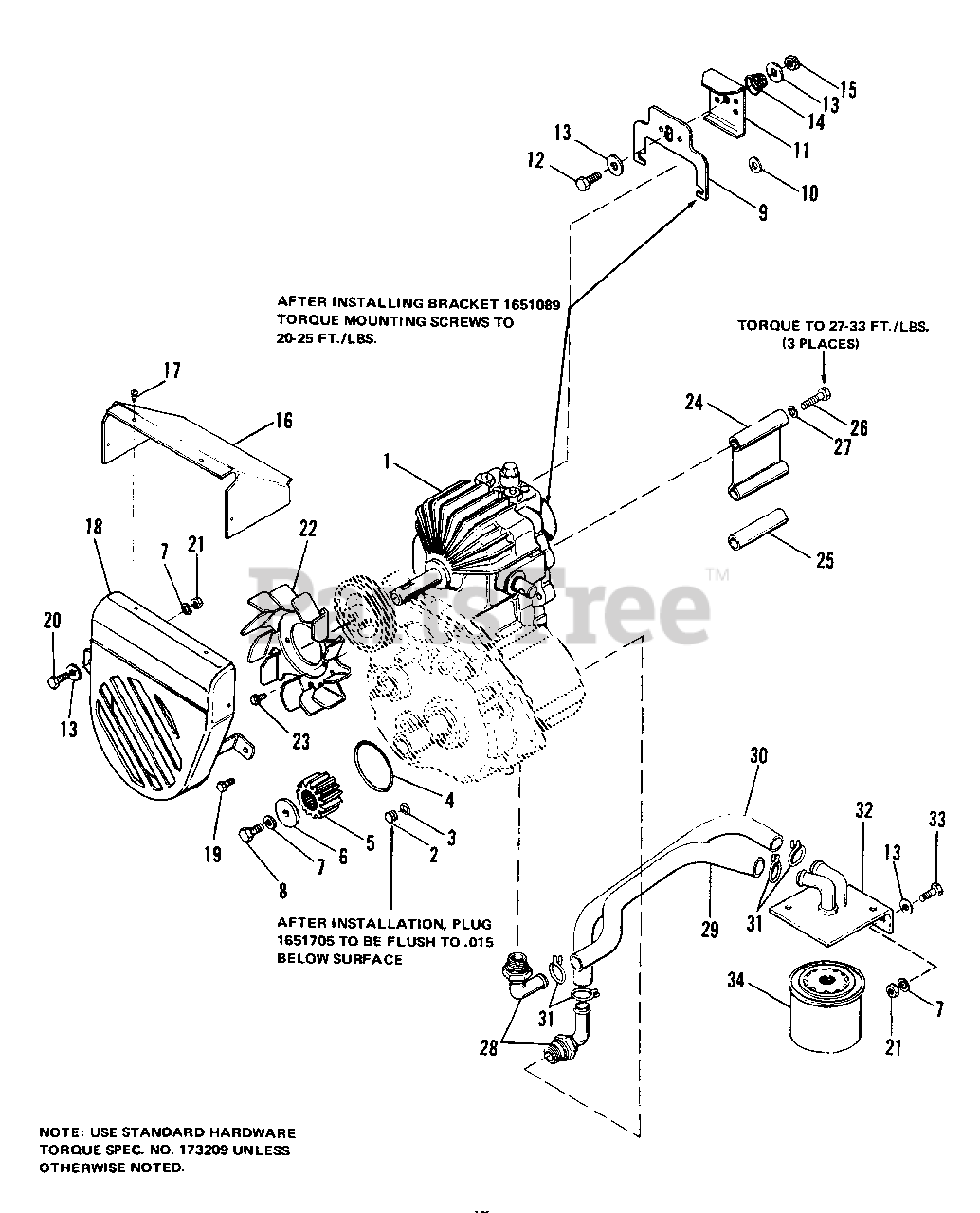

Hydrostatic Pump Group (7012, 7016, & 7018) Parts Diagram

  • Title

1

Simplicity 1650301

HYDRO PUMP & MOTOR UNIT

$

$

Not available

2

Simplicity 1651705

PLUG

$

$

Not available

3

Simplicity 1651704

"O" RING

$

$

Not available

4

Simplicity 1651703SM

"O" RING

$7.49

$

In Stock, Qty 10

0

5

Simplicity 2166003SM

PINION, Motor Shaft

$153.99

$

Usually ships in 2-12 days

0

6

Simplicity 2123144

WASHER

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 2821515

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

9

Simplicity 1651089SM

BRACKET

$

$

Not available

10

Simplicity 2156065

WASHER

$

$

Not available

11

Simplicity 1651090SM

RELEASE, Latch

$

$

Not available

12

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

13

Simplicity 2817642

WASHER, 5/16

$

$

Not available

14

Simplicity 2153010SM

SPRING

$9.49

$

Usually ships in 2-12 days

0

15

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

16

Simplicity 2178779SM

DEFLECTOR, Shroud

$

$

Not available

17

Simplicity 2823735

SCREW, Taptite No. 10-32 x 3/8

$

$

Not available

18

Simplicity 2178774

SHROUD ASSY, Fan

$

$

Not available

19

Simplicity 2825359

SCREW, Thd Form., 5/16-18 x 1/2

$

$

Not available

20

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

21

Simplicity 1917372SM

NUT, Hex Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

22

Simplicity 2166022SM

FAN, Pulley

$167.99

$

Usually ships in 2-12 days

0

23

Simplicity 2827428

SCREW, Thd.,Form., 1/4-20 x 3/8

$

$

Not available

24

Simplicity 1650633SM

SPACER

$37.99

$

Usually ships in 2-12 days

0

25

Simplicity 1650524

SPACER
(Superseded to 1650524SM)

$51.99

$

Usually ships in 2-12 days

0

26

Simplicity 2825695

CAPSCREW, Hex Hd., 3/8-16 x 5

$

$

Not available

27

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

28

Simplicity 1669954SM

INSERT, Hose

$

$

Not available

29

Simplicity 1650564SM

HOSE

$59.99

$

Usually ships in 2-12 days

0

30

Simplicity 1650564SM

HOSE

$59.99

$

Usually ships in 2-12 days

0

31

Simplicity 2830709

CLAMP, Hose
(Superseded to 2930709SM)

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1650989

SUPPORT ASSY, Oil Filter

$

$

Not available

33

Simplicity 2819319

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

34

Simplicity 1650954SM

FILTER ASSY

$

$

Not available
