716 H (1690420) - AGCO 48" Garden Tractor, 16hp (SN: 1001 - 2200) Clutch & Brake Control Group Parts Diagram

48" Garden Tractor, 16hp (SN: 1001 - 2200)

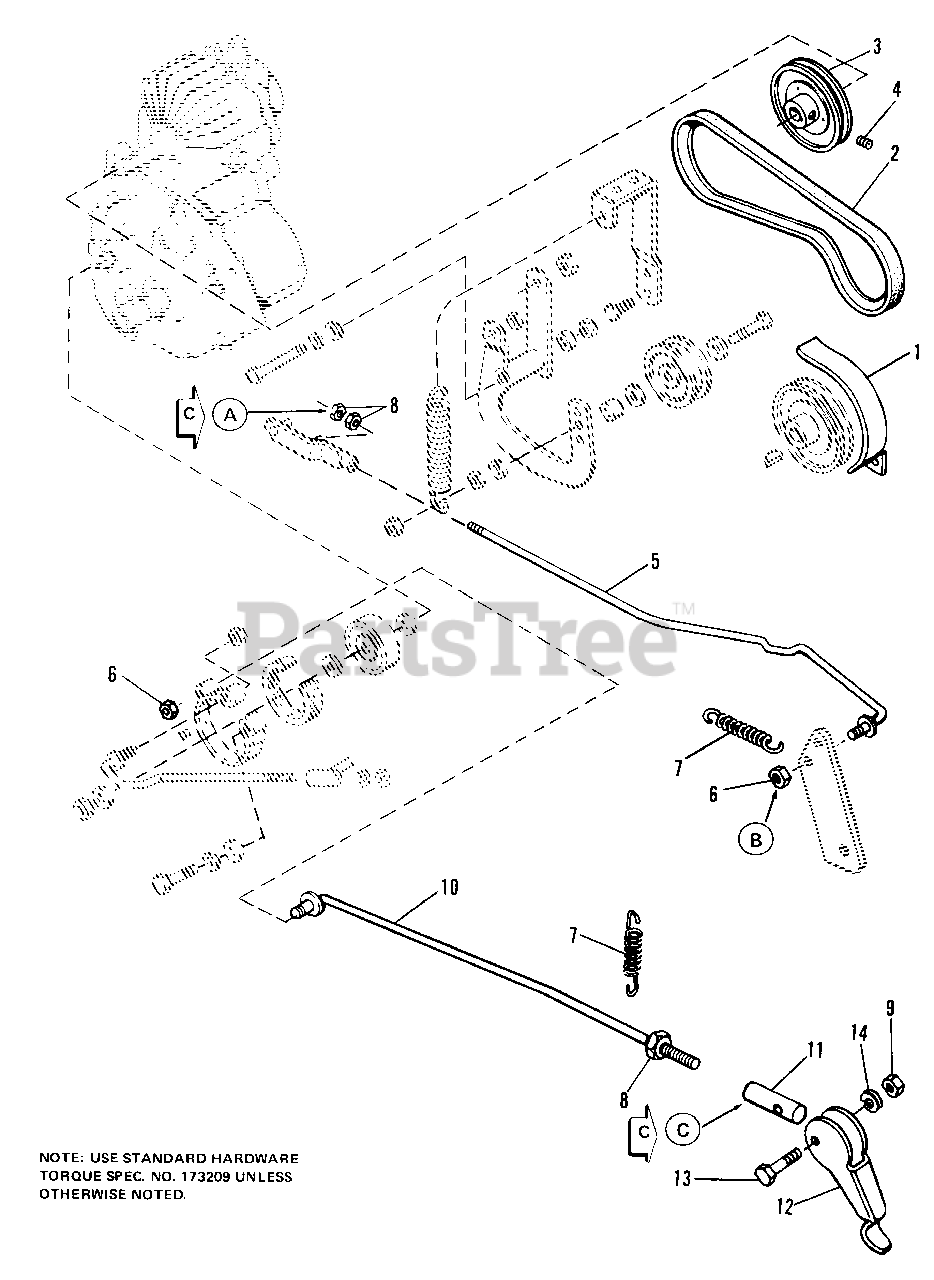

Clutch & Brake Control Group Parts Diagram

  • Title

1

Simplicity 2166122SM

GUARD ASSY

$

$

Not available

2

Simplicity 1650502SM

"V" BELT

$38.99

$

In Stock, Qty 6

0

3

Simplicity 2166173SM

PULLEY
(Superseded to 2166173ASM)

$168.99

$

Usually ships in 2-12 days

0

4

Simplicity 2828709

SETSCREW, Sq. Hd., 5/16-18 x 3/8

$

$

Not available

5

Simplicity 1650531SM

ROD, Clutch

$86.99

$

Usually ships in 2-12 days

0

6

Simplicity 2823362

NUT, Lock, Hex, 5/16-18

$

$

Not available

7

Simplicity 2121037SM

SPRING

$

$

Not available

8

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

9

Simplicity 2823329

NUT, Lock, Hex, 1/4-20

$

$

Not available

10

Simplicity 2172461

ROD ASSY

$

$

Not available

11

Simplicity 2171994SM

ROD, End

$22.99

$

In Stock, only 1 left!

0

12

Simplicity 2172108SM

LEVER, Parking Brake

$

$

Not available

13

Simplicity 2828745

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$

$

Not available

14

Simplicity 930666

LOCKWASHER, Dbl. 1/4

$

$

Not available
