716 H (1690420) - AGCO 48" Garden Tractor, 16hp (SN: 1001 - 2200) Clutch & Brake Group Parts Diagram

48" Garden Tractor, 16hp (SN: 1001 - 2200)

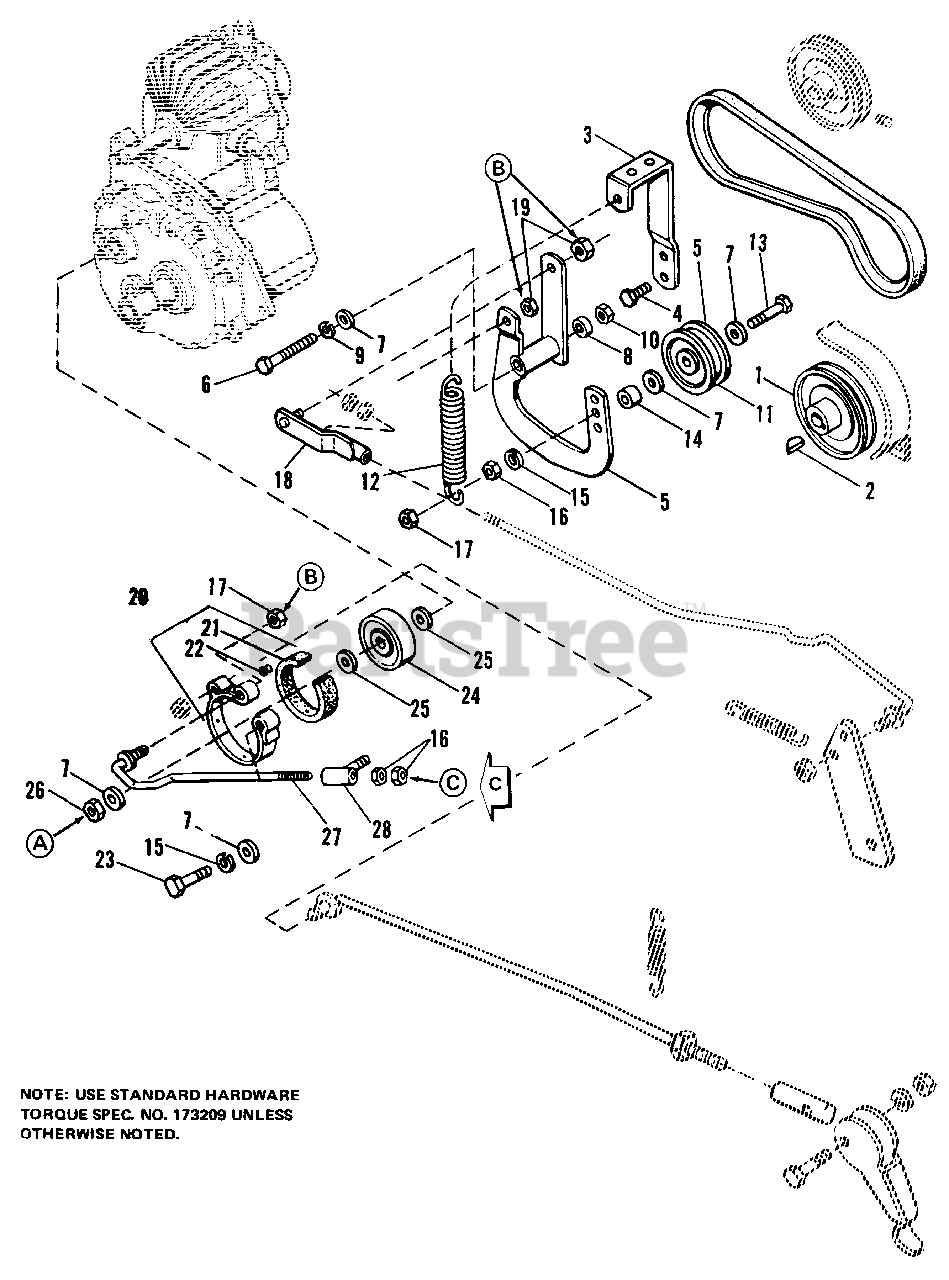

Clutch & Brake Group Parts Diagram

  • Title

1

Simplicity 1657323SM

PULLEY
(Superseded to 1657323ASM)

$126.99

$

Usually ships in 2-12 days

0

2

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.99

$

In Stock, Qty 19

0

3

Simplicity 2166156

BRACKET

$

$

Not available

4

Simplicity 2826035

SCREW, Thd. Form., 3/8 x 3/4

$

$

Not available

5

Simplicity 2166127

LEVER ASSY, Idler

$

$

Not available

6

Simplicity 2828295

CAPSCREW, Hex Hd., 7/16-14 x 3-3/4

$

$

Not available

7

Simplicity 1924940SM

WASHER, 3/8 Std.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 2166130SM

SPACER

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

10

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

11

Simplicity 2164268

PULLEY, Idler

$

$

Not available

12

Simplicity 2154369SM

SPRING

$18.99

$

In Stock, only 3 left!

0

13

Simplicity 2819362

CAPSCREW, Hex Ad, 3/8-16 x 2-1/4

$

$

Not available

14

Simplicity 2157081SM

SPACER

$9.49

$

In Stock, Qty 6

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 12

0

17

Simplicity 2823428

NUT, Lock, Hex, 3/8-16

$

$

Not available

18

Simplicity 2166157SM

GUIDE ASSY
(Superseded to 2166157ASM)

$77.99

$

Usually ships in 2-12 days

0

19

Simplicity 2823362

NUT, Lock, Hex, 5/16-18

$

$

Not available

20

Simplicity 2172234

BAND ASSY, Brake

$

$

Not available

21

Simplicity 2172237

LINING, Brake

$

$

Not available

22

Simplicity 2828810

RIVET

$

$

Not available

23

Simplicity 2819361

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

24

Simplicity 2166176SM

DRUM, Brake

$21.99

$

Usually ships in 2-12 days

0

25

Simplicity 2158196SM

WASHER, Special

$7.99

$

Usually ships in 2-12 days

0

26

Simplicity 2824058

NUT, Lock, Hex, 7/16-14

$

$

Not available

27

Simplicity 1650651SM

ROD, Brake

$22.99

$

Usually ships in 2-12 days

0

28

Simplicity 2166119SM

GUIDE ASSY, Rod

$73.99

$

In Stock, only 1 left!

0
