716004 - Ariens Bagger Kit Bagger Frame Assembly Parts Diagram

Bagger Kit

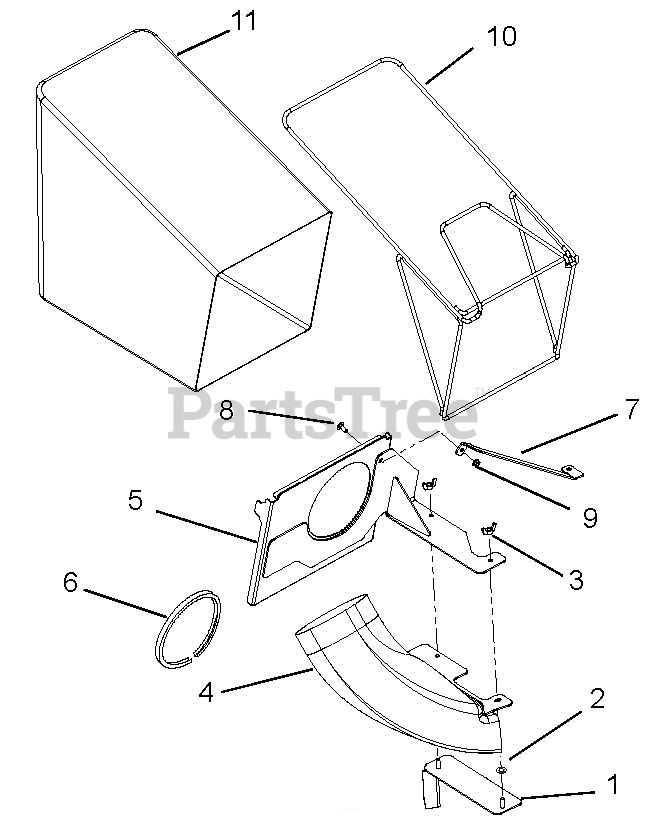

Bagger Frame Assembly Parts Diagram

  • Title

1

Ariens 00698851

WELDMENT, 34" BAGGER MOUNT
(Superseded to 01326951)

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

3

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0

4

Ariens 51517700

ASSY, 34" STAMPED DECK BOOT

$

$

Not available

4

Ariens 00394100

BOOT, BAGGER

$

$

Currently unavailable

4

Ariens 00696451

MOUNT, 34" BAGGER BOOT

$25.99

$

Usually ships in 4-12 days

0

5

Ariens 03924651

WMT-AMP RIDER BAGGER BRKT

$

$

Currently unavailable

6

Ariens 00914700

TRIM-BULK

$0.99

$

Usually ships in 4-12 days

0

7

Ariens 03924751

STABILIZER, AMP RIDER BAGGER

$

$

Not available

8

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01241851

FRAME, WBLM BAGGER

$142.99

$

Usually ships in 4-12 days

0

11

Ariens 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0
