717 (990424) - Simplicity Broadmoor Lawn Tractor, 7hp Transmission Group Parts Diagram

Broadmoor Lawn Tractor, 7hp

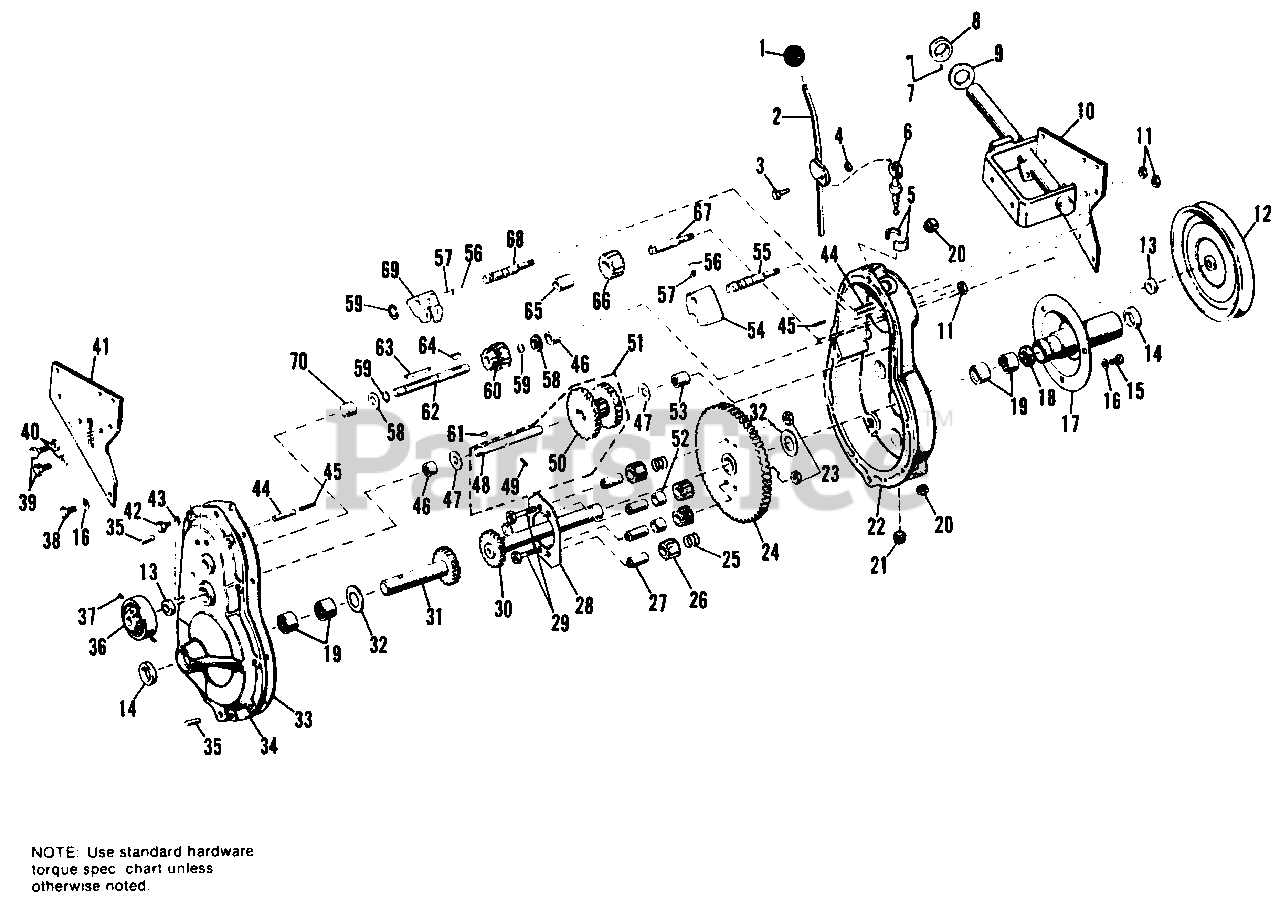

Transmission Group Parts Diagram

  • Title

1

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 156109

LEVER ASSY., Shift

$

$

Not available

3

Simplicity 2823341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

5

Simplicity 2101042SM

BUSHING, Half

$

$

Not available

6

Simplicity 2156031

ROD ASSY., Shift

$

$

Not available

7

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.99

$

In Stock, Qty 7

0

8

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

9

Simplicity 2105050

WASHER

$

$

Not available

10

Simplicity 156107

PLATE ASSY., Side

$

$

Not available

11

Simplicity 2818213

NUT, Hex, Full, 7/16-14

$

$

Not available

12

Simplicity 2156119SM

PULLEY, Transmission

$112.99

$

Usually ships in 2-12 days

0

13

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 2118118SM

SEAL, Oil

$11.99

$

In Stock, Qty 11

0

15

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 103170

HOUSING ASSY., Axle

$

$

Not available

18

Simplicity 2156099SM

SEAL, Oil

$3.49

$

In Stock, only 1 left!

0

19

Simplicity 2105195SM

BEARING, Roller

$35.99

$

In Stock, only 3 left!

0

20

Simplicity 2830676SM

PLUG, Pipe

$

$

Not available

21

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

22

Simplicity 156017

CASE ASSY., Gear

$

$

Not available

23

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Simplicity 1663715SM

GEAR ASSY., Drive

$

$

Not available

25

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 6

0

26

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

27

Simplicity 2121083SM

SPINDLE, Diff.

$13.99

$

In Stock, only 1 left!

0

28

Simplicity 156002

PLATE, Diff.

$

$

Not available

29

Simplicity 2819363

CAPSCREW, Hex Hd., 3/8-16 x 2-1/2

$

$

Not available

30

Simplicity 156100

SHAFT ASSY., Axle, R.H.

$

$

Not available

31

Simplicity 156104

SHAFT ASSY., Axle, L.H.

$

$

Not available

32

Simplicity 2105083

WASHER

$

$

Not available

33

Simplicity 2156103SM

GASKET

$20.99

$

Usually ships in 2-12 days

0

34

Simplicity 156018

COVER ASSY., Gear Case

$

$

Not available

35

Simplicity 2818113

PIN, Roll, 3/8 x 1

$

$

Not available

36

Simplicity 2165067SM

DRUM, Brake

$

$

Not available

37

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

38

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

39

Simplicity 2819321

CAPSCREW, Hex Hd., 7/16-14 x 3/4

$

$

Not available

40

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

41

Simplicity 156106

PLATE, Side, Transmission

$

$

Not available

42

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

43

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

44

Simplicity 2156308SM

PIN ASSY., Roll

$

$

Not available

45

Simplicity 2816001SM

PIN, Roll, 3/16 x 1

$4.49

$

In Stock, only 3 left!

0

46

Simplicity 2156072SM

BEARING, Roller

$25.99

$

In Stock, only 1 left!

0

47

Simplicity 2156089

WASHER

$

$

Not available

48

Simplicity 2156290SM

SHAFT, Brake

$

$

Not available

49

Simplicity 2156292

PIN, Dowel

$

$

Not available

50

Simplicity 2156090

GEAR ASSY., Cluster

$

$

Not available

51

Simplicity 2156290SM

GEAR ASSY., Cluster

$

$

Not available

52

Simplicity 2121084SM

SPACER, Diff.

$13.99

$

Usually ships in 2-12 days

0

53

Simplicity 2156073SM

BEARING, Roller

$11.99

$

Usually ships in 2-12 days

0

54

Simplicity 156080

FORK, I & II

$

$

Not available

55

Simplicity 2171372SM

SHAFT, Hi-Lo

$102.99

$

Usually ships in 2-12 days

0

56

Simplicity 2154262

BALL, Shift Lock

$

$

Not available

57

Simplicity 2154323SM

SPRING

$43.99

$

Usually ships in 2-12 days

0

58

Simplicity 2156085

WASHER

$

$

Not available

59

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

60

Simplicity 2156087SM

PINION ASSY., Hi & Lo

$

$

Not available

61

Simplicity 2830669

KEY, Hi-Pro

$

$

Not available

62

Simplicity 1560-83

SHAFT, Pulley

$

$

Not available

63

Simplicity 2156086SM

KEY

$12.99

$

Usually ships in 2-12 days

0

64

Simplicity 2830670SM

KEY, Hi-Pro

$

$

Not available

65

Simplicity 2156082

BEARING, Roller

$

$

Not available

66

Simplicity 1650625SM

PINION, Reverse

$63.99

$

Usually ships in 2-12 days

0

67

Simplicity 156081

SHAFT, Reverse Pinion

$

$

Not available

68

Simplicity 156077

SHAFT, Reverse

$

$

Not available

69

Simplicity 1713-63

FORK, Shift, Reverse

$

$

Not available

70

Simplicity 156102

BEARING, Roller

$

$

Not available
