717012 - Ariens Log Splitter Work Table Kit Work Table Kit - 71701200 Parts Diagram

Log Splitter Work Table Kit

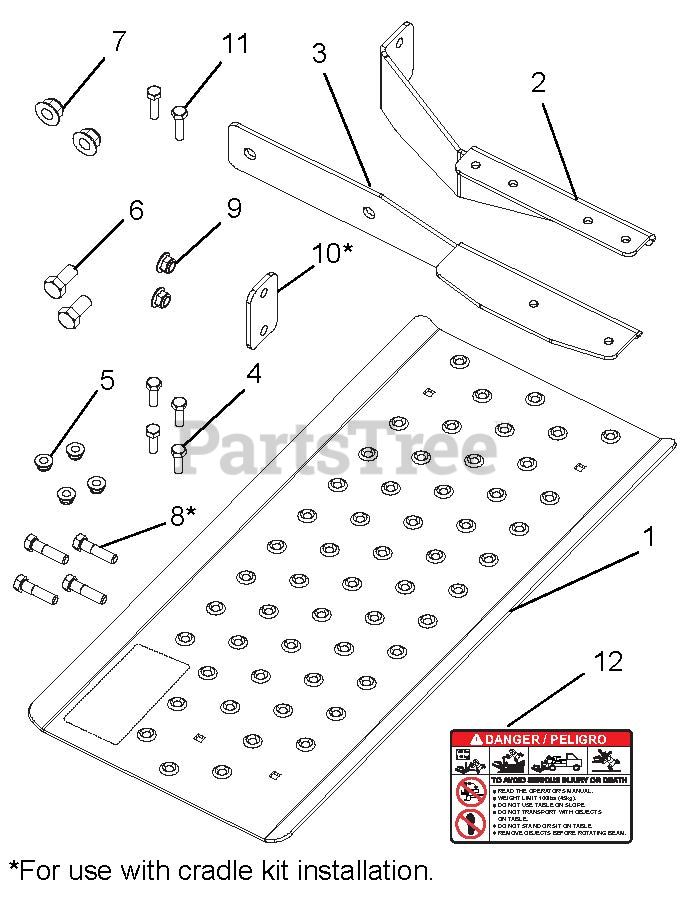

Work Table Kit - 71701200 Parts Diagram

  • Title

1

Ariens 03880159

BRKT, LOG SPLITTER WORK TABLE

$

$

Not available

2

Ariens 03880251

BRKT, REAR TABLE MOUNT

$56.99

$

Usually ships in 4-12 days

0

3

Ariens 03880351

BRKT, FRONT TABLE MOUNT

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

In Stock, only 3 left!

0

5

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

7

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: FOR USE WITH CRADLE KIT (P/N 71701600) INSTALLATION

$1.99

$

In Stock, only 2 left!

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

Usually ships in 4-12 days

0

10

Ariens 03886751

PLATE, WORK TABLE SPACER

Note: FOR USE WITH CRADLE KIT (P/N 71701600) INSTALLATION

$6.99

$

Usually ships in 4-12 days

0

11

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, only 1 left!

0

12

Ariens 08000406

DECAL,WORK TABLE

$

$

Not available
