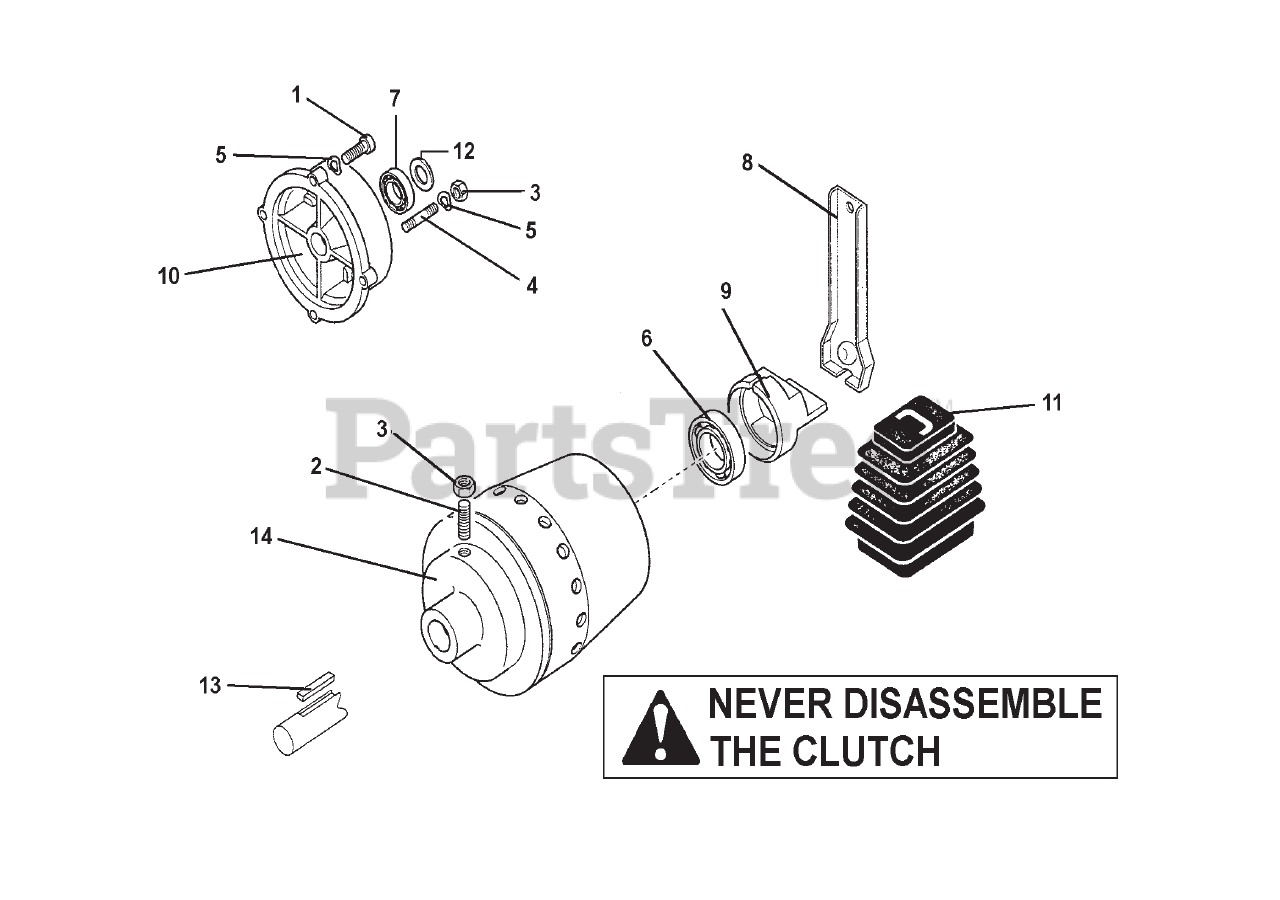

718 - BCS America Two-Wheeled Tractor Clutch (SN: 000001 - 779324) Parts Diagram

Two-Wheeled Tractor

Clutch (SN: 000001 - 779324) Parts Diagram

  • Title

1

BCS America 311.00003

SCREW, 5/16X7/8"

Note:

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 311.00787

SCREW, M8X35

Note:

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, Qty 8

0

4

BCS America 313.12088

STUD, M8X40X14X14

Note:

$8.49

$

Usually ships in 5-8 days

0

5

BCS America 314.23084

WASHER, WAVEY, M8

Note:

$0.99

$

In Stock, Qty 10

0

6

BCS America 371.12173

BEARING, M17X40X12

Note:

$10.99

$

Usually ships in 5-8 days

0

7

BCS America 371.12231

BEARING, M20X47X14

Note:

$16.99

$

Usually ships in 5-8 days

0

8

BCS America 509.56262

LEVER, RECOIL START

Note:

$58.99

$

Usually ships in 5-8 days

0

9

BCS America 524.47896

CONE PUSHER

Note:

$

$

Not available

10

BCS America 532.47488

FLANGE, 6.5HP INTEK & 5.5HP HONDA

Note:

$114.99

$

Usually ships in 5-8 days

0

11

BCS America 551.57609

BOOT

Note:

$32.99

$

Usually ships in 5-8 days

0

12

BCS America 563.56251

WASHER

Note:

$2.49

$

Usually ships in 5-8 days

0

13

BCS America 563.56165

KEY

Note:

$14.99

$

Usually ships in 5-8 days

0

14

BCS America 592.56265

CLUTCH, 6.5HP (INCLUDE 6 & 9)

Note:

$

$

Currently unavailable
