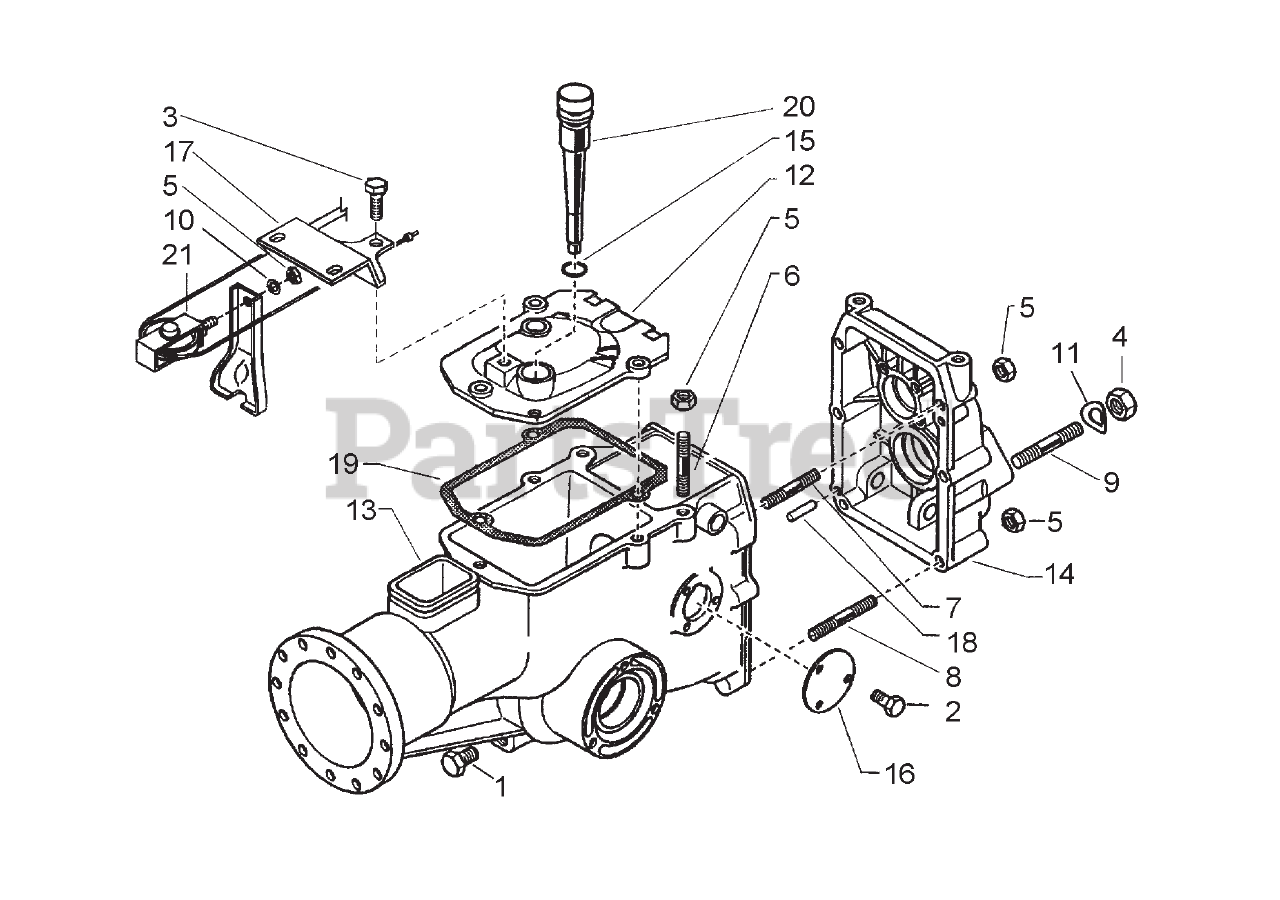

718 - BCS America Two-Wheeled Tractor Gearbox (SN: 868755 & Above) Parts Diagram

Two-Wheeled Tractor

Gearbox (SN: 868755 & Above) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG

Note:

$5.49

$

In Stock, only 4 left!

0

2

BCS America 311.12083

SCREW

Note:

$1.49

$

In Stock, only 1 left!

0

3

BCS America 311.12210

CAP SCREW

Note:

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 312.21121

NUT, M12X1.25

Note:

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 312.41084

NUT, SELF LOCKING, M8

Note:

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 313.12082

STUD, M8X38X14X20

Note:

$1.99

$

In Stock, only 3 left!

0

7

BCS America 313.12086

STUD, M8X56X20X12

Note:

$3.99

$

Usually ships in 5-8 days

0

8

BCS America 313.12094

STUD, M8X68

Note:

$2.49

$

Usually ships in 5-8 days

0

9

BCS America 313.12125

STUD, M12X1.25X12X64

Note:

$4.49

$

In Stock, Qty 7

0

10

BCS America 314.21083

SUPER WASHER, M8

Note:

$1.49

$

In Stock, Qty 6

0

11

BCS America 314.21132

WASHER, DOME, M13 ***

Note:

$1.99

$

In Stock, Qty 6

0

12

BCS America 531.43128

GEARBOX COVER

Note:

$77.99

$

Usually ships in 5-8 days

0

13

BCS America 531.56325

GEAR BOX CASE

Note:

$667.99

$

Usually ships in 5-8 days

0

14

BCS America 531.56332

REAR COVER

Note:

$163.99

$

Usually ships in 5-8 days

0

15

BCS America 551.02678

O RING

Note:

$1.49

$

Usually ships in 5-8 days

0

16

BCS America 561.47520

SIDE COVER

Note:

$11.99

$

Usually ships in 5-8 days

0

17

BCS America 561.57394

PLATE

Note:

$55.99

$

Usually ships in 5-8 days

0

18

BCS America 580.43053

PARALLEL PIN

Note:

$1.49

$

Usually ships in 5-8 days

0

19

BCS America 580.43117

GASKET, COVER

Note:

$2.99

$

In Stock, only 2 left!

0

20

BCS America 590.15425

CAP WITH DIP STICK

Note:

$

$

Not available

21

BCS America 590.56258

PULLEY ASSEMBLY

Note:

$62.99

$

Usually ships in 5-8 days

0
