718009 - Ariens 42" Blower Upfit Kit Pump Mount and Cover - 42" Parts Diagram

42" Blower Upfit Kit

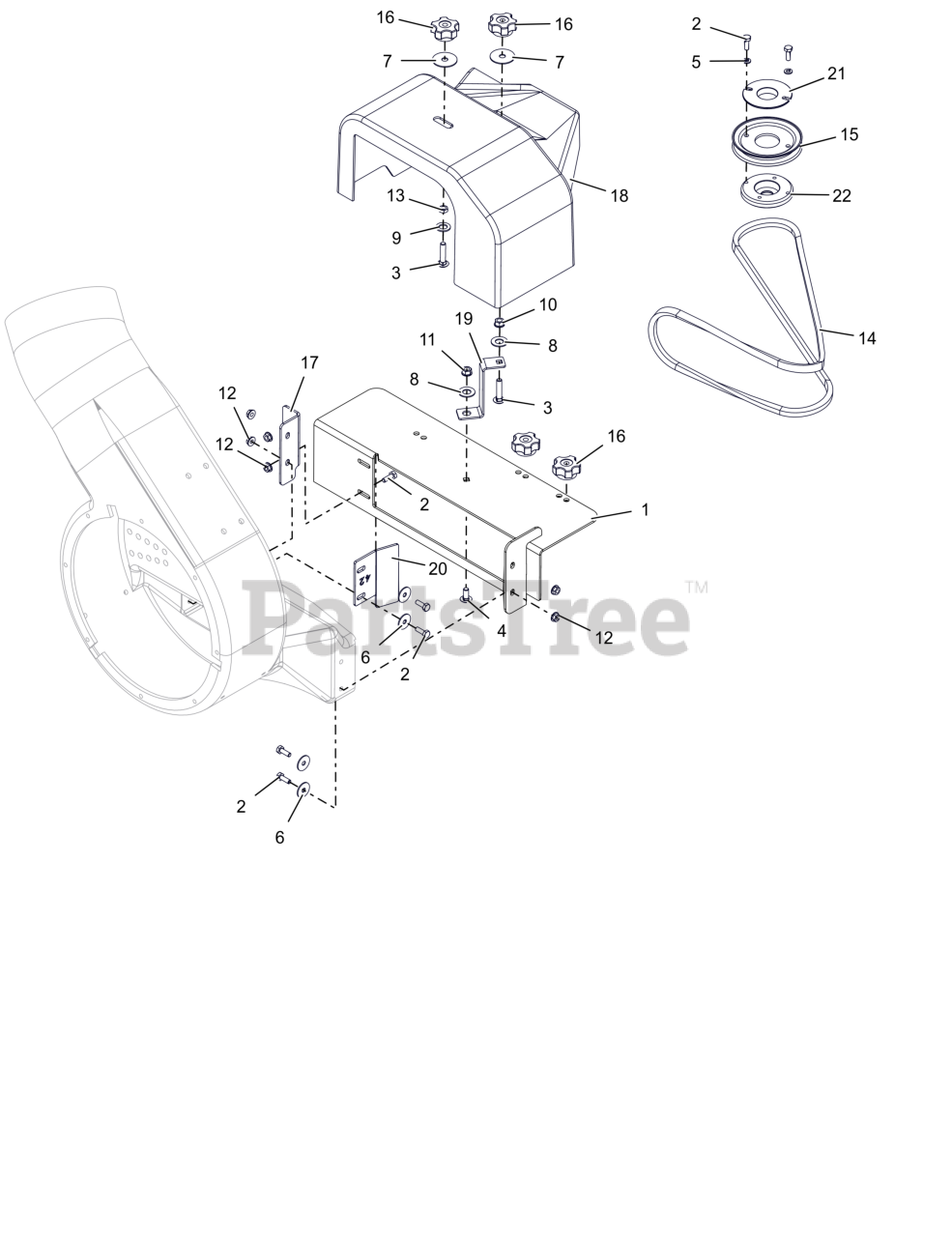

Pump Mount and Cover - 42" Parts Diagram

  • Title

1

Ariens 09686051

WLDMT- BLOWER MTG

$79.99

$

In Stock, only 1 left!

0

2

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

3

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 12

0

4

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

5

Ariens 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 11

0

6

Ariens 06401020

WSHR,FLT .281X1.000X.063 ZCC

$1.49

$

In Stock, only 4 left!

0

7

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

8

Ariens 06401112

WSHR, FLT .505X1.00X.062 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06401126

WSHR, FLT .505X.880X.072 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07211600

V-BELT, 4L-RAW EDGE

$56.99

$

Usually ships in 4-12 days

0

15

Ariens 07352700

PULLEY-V-4.25 ODX1.51 ID ZC120

$19.99

$

Usually ships in 4-12 days

0

16

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

17

Ariens 09686251

BRKT- BLOWER REAR MTG BLK

$14.99

$

In Stock, only 1 left!

0

18

Ariens 09686300

GUARD, 42" BLOWER BELT

$92.99

$

Usually ships in 0 days

0

19

Ariens 09686700

BRKT, BLOWER GUARD MTG

$8.49

$

Usually ships in 0 days

0

20

Ariens 09686851

BRKT- 42" BLOWER CLOSE-OFF

$15.99

$

Usually ships in 4-12 days

0

21

Ariens 30134400

ADAPTER- BAGGER SHEAVE

$58.99

$

Usually ships in 4-12 days

0

22

Ariens 30134600

ADAPTER- PULLEY IKON

$105.99

$

Usually ships in 0 days

0
