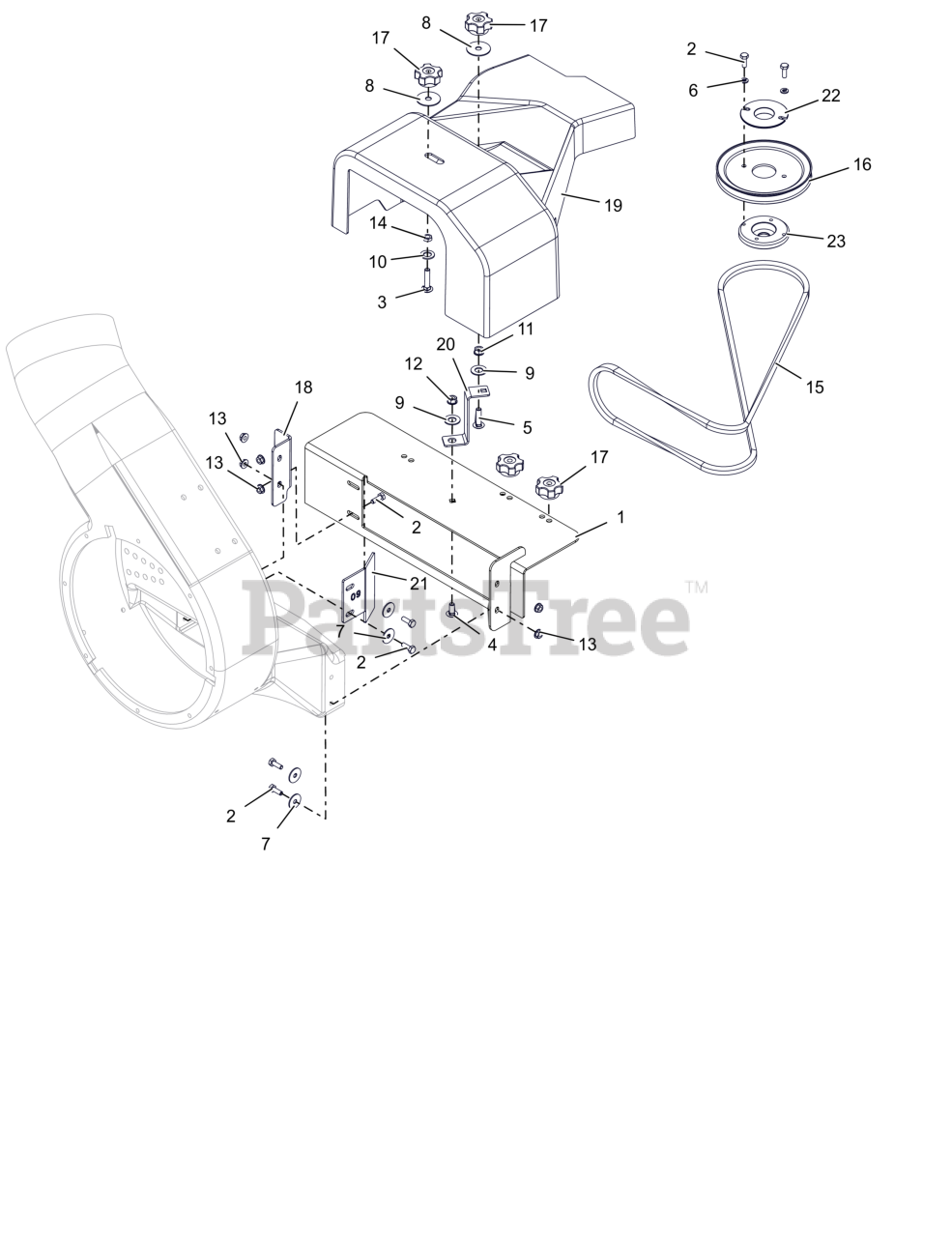

71801100 - Gravely 60" Blower Upfit Kit Pump Mount and Cover - 60" Parts Diagram

60" Blower Upfit Kit

Pump Mount and Cover - 60" Parts Diagram

  • Title

1

Gravely 09686051

WLDMT, BLT MOUNT BRKT (BLACK)

$79.99

$

In Stock, only 1 left!

0

2

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

3

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 12

0

4

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

5

Gravely 06200310

BTL,RHSSN .313-18 X 1.25 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

6

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 11

0

7

Gravely 06401020

WSHR,FLT .281X1.000X.063 ZCC

$1.49

$

In Stock, only 4 left!

0

8

Gravely 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06401112

WSHR, FLT .505X1.00X.062 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06401126

WSHR, FLT .505X.880X.072 ZCC

$3.99

$

In Stock, Qty 20+

0

11

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07200042

V-BELT, 4L-RAW EDGE

$52.99

$

In Stock, Qty 5

0

16

Gravely 07347500

PULLEY,V-6.00OD X1.51 ID CZ120

$37.99

$

Usually ships in 4-12 days

0

17

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

18

Gravely 09686251

BRKT, ANGLE SUPPORT (BLACK)

$14.99

$

In Stock, only 1 left!

0

19

Gravely 09686600

GUARD- 60" BLOWER BELT

$145.99

$

Usually ships in 4-12 days

0

20

Gravely 09686700

BRKT, BLOWER GUARD MTG

$8.49

$

Usually ships in 0 days

0

21

Gravely 09687151

BRKT, 60" BLOWER CLOSE OFF (BLACK)

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 30134400

ADAPTOR, PULLEY SHEAVE

$58.99

$

Usually ships in 4-12 days

0

23

Gravely 30134600

ADAPTER- PULLEY IKON

$105.99

$

Usually ships in 0 days

0
