72-10BP01 (A-100) - Toro 36" Lawn Tractor (1977) Fuel And Exhaust Systems Parts Diagram

36" Lawn Tractor

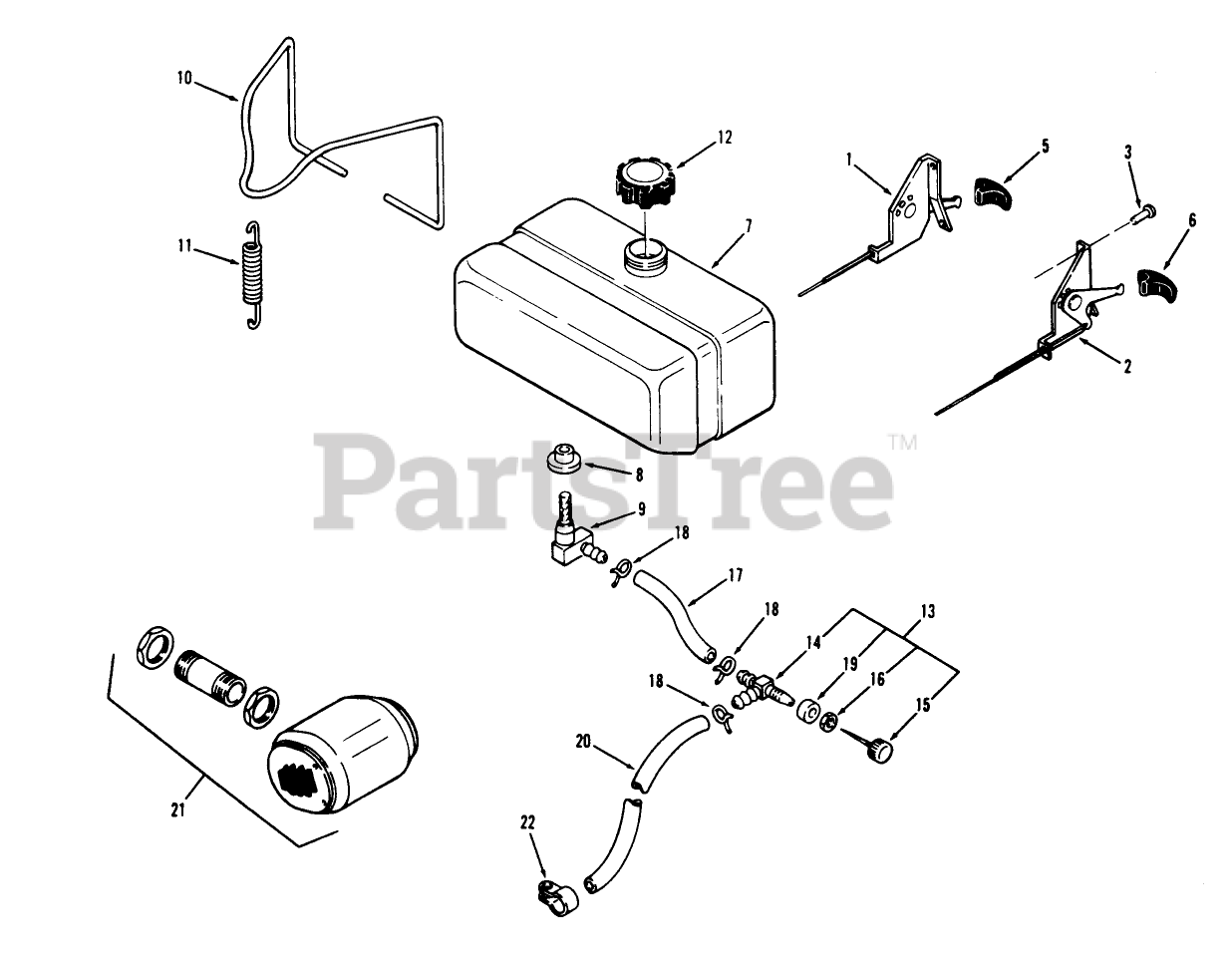

Fuel And Exhaust Systems Parts Diagram

  • Title

1

Toro 103519

DUP PART SEE $BOOK

$

$

Not available

2

Toro 105433

DISCONTINUED

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

5

Toro 102185

KNOB-THROTTLE

$19.99

$

In Stock, only 2 left!

0

6

Toro 102186

KNOB-CHOKE

$19.99

$

In Stock, Qty 6

0

7

Toro 104067

ASSY-FUEL TANK

$355.99

$

Usually ships in 3-6 days

0

8

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

9

Toro 104071

FITTING FUEL TANK

$

$

Not available

10

Toro 100147

DISCONTINUED

$

$

Not available

11

Toro 9170

DISCONTINUED

$

$

Not available

12

Toro 102321

See Supercession: 108011
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

13

Toro 8023

S/A FUEL VALVE

$

$

Not available

14

Toro 100748

VALVE BODY

$

$

Not available

15

Toro 100749

STEM

$

$

Not available

16

Toro 100750

NUT

$

$

Not available

17

Toro 105029

See Supercession: 101338
(Superseded to 101338)

$

$

Not available

18

Toro 950154

DISCONTINUED

$

$

Not available

19

Toro 5189

DISCONTINUED

$

$

Not available

20

Toro 105442

See Supercession: 100061
(Superseded to 100061)

$

$

Not available

21

Toro 105501

DISCONTINUED

$

$

Not available

22

Toro 101861

DISCONTINUED

$

$

Not available
