72-10BP01 (A-100) - Toro 36" Lawn Tractor (1977) FUEL AND EXHAUST SYSTEMS Parts Diagram

36" Lawn Tractor

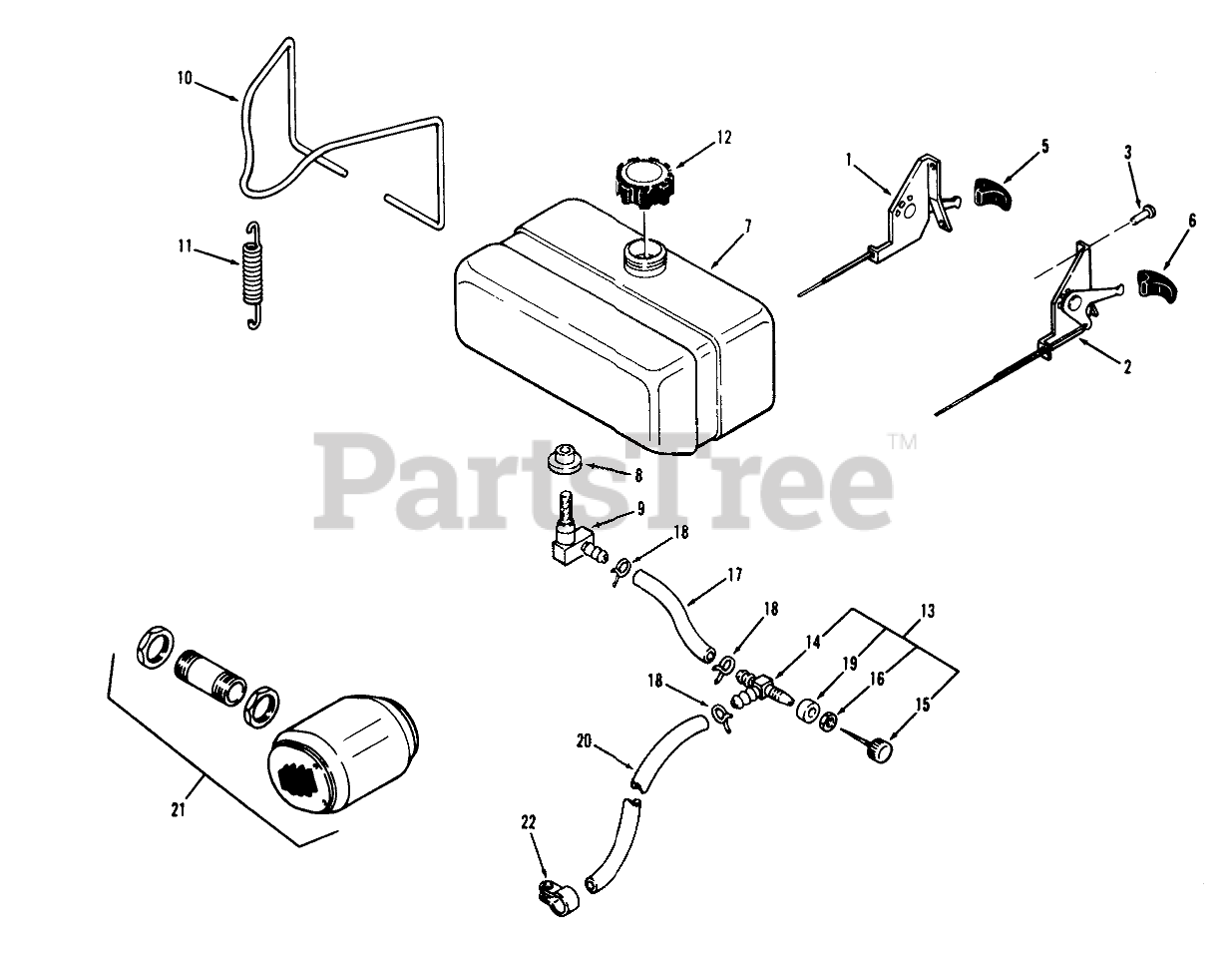

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 103519

Throttle Control

$

$

Not available

2

Toro 105433

Control-Choke

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

5

Toro 102185

KNOB-THROTTLE

$15.99

$

In Stock, only 2 left!

0

6

Toro 102186

KNOB-CHOKE

$15.99

$

In Stock, Qty 7

0

7

Toro 104067

ASSY-FUEL TANK

$269.99

$

Usually ships in 3-6 days

0

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 104071

FITTING FUEL TANK

$

$

Not available

10

Toro 100147

Hold Down Wire

$

$

Not available

11

Toro 9170

SPRING-EXTENSION

$

$

Not available

12

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

13

Toro 8023

S/A FUEL VALVE

$87.99

$

Usually ships in 3-6 days

0

14

Toro 100748

VALVE BODY

$

$

Not available

15

Toro 100749

STEM

$

$

Not available

16

Toro 100750

NUT

$

$

Not available

17

Toro 105029

Fuel Hose 4.5"
(Superseded to 101338)

$

$

Not available

18

Toro 950154

Clamp

$

$

Not available

19

Toro 5189

SPACER

$

$

Not available

20

Toro 105442

Fuel Hose 18"
(Superseded to 100061)

$

$

Not available

21

Toro 105501

Assy-Exhaust

$

$

Not available

22

Toro 101861

CLAMP-HOSE

$

$

Not available
