72-10BP01 (A-100) - Toro 36" Lawn Tractor (1977) MAIN ELECTRICAL SYSTEM Parts Diagram

36" Lawn Tractor

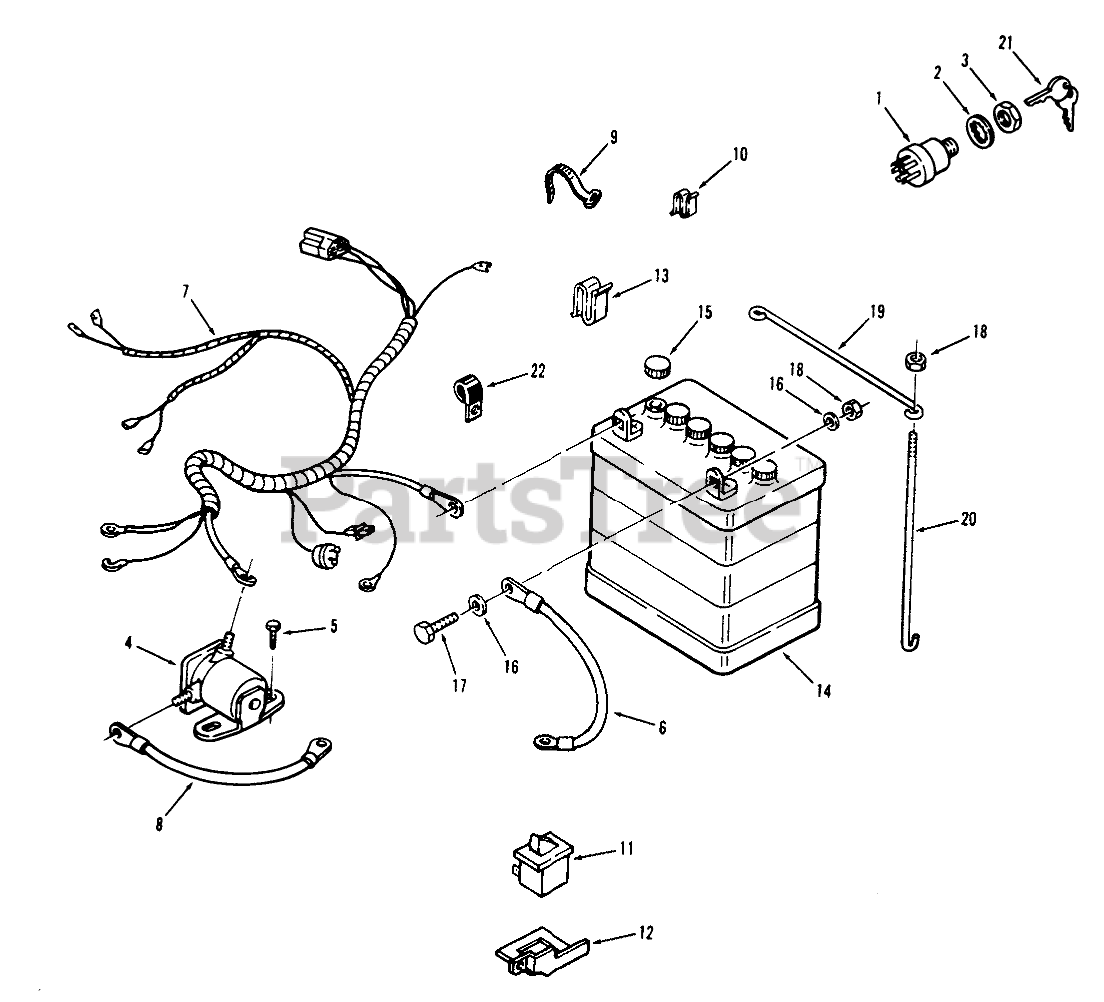

MAIN ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 103991

ASSY-SWITCH IGNITION

$52.99

$

In Stock, only 1 left!

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

3

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

4

Toro 8658

Solenoid
(Superseded to 108544)

$142.99

$

Usually ships in 3-6 days

0

5

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

6

Toro 3666

Ground Wire

$

$

Currently unavailable

7

Toro 105439

Wire Harness

$

$

Not available

8

Toro 8655

Wire
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

9

Toro 100571

PLASTIC TIE

$

$

Not available

10

Toro 3023

SPEED CLIP

$

$

Not available

11

Toro 103480

SWITCH INTERLOCK

$

$

Not available

12

Toro 104117

Bracket-Switch

$

$

Currently unavailable

13

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

14

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

15

Toro 100438

Cap

$

$

Not available

16

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

17

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

19

Toro 105504

ROD-HOLD DOWN

$24.99

$

In Stock, only 4 left!

0

20

Toro 8107

Hook
(Superseded to 109547)

$10.99

$

In Stock, only 2 left!

0

21

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 14

0

22

Toro 110540

Clamp

$

$

Currently unavailable
