720 (1690288) - AGCO Garden Tractor, 19.5hp Main Drive & Brake Lever Group Parts Diagram

Garden Tractor, 19.5hp

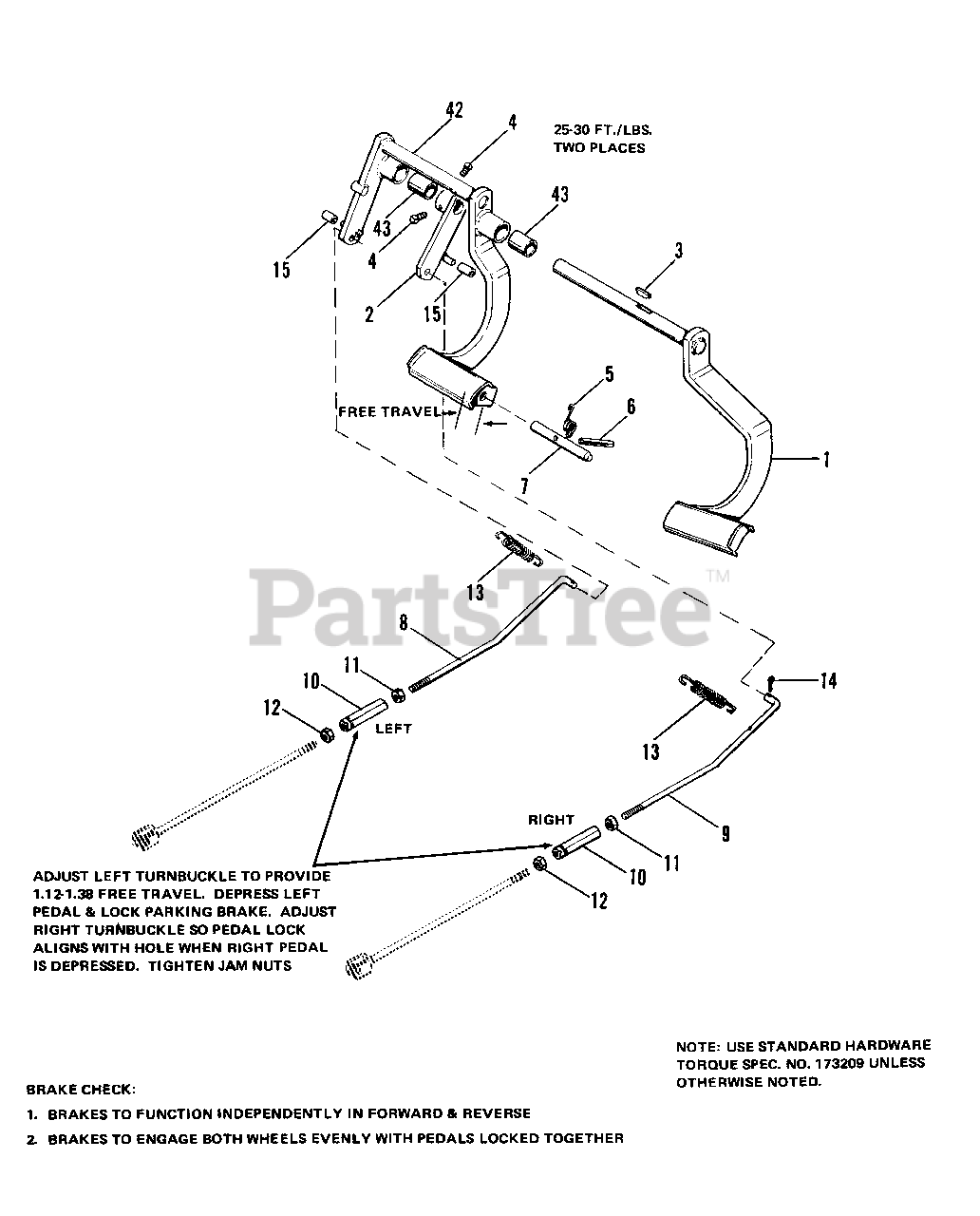

Main Drive & Brake Lever Group Parts Diagram

  • Title

1

Simplicity 168112

LEVER ASSY, Brake, R.H.

$

$

Not available

2

Simplicity 1652832

BRAKE ANCHOR ASSY

$

$

Not available

3

Simplicity 173272

KEY

$

$

Not available

4

Simplicity 2828709

SCREW, Set, Sq. Hd.

$

$

Not available

5

Simplicity 173755

SPRING, Torsion

$

$

Not available

6

Simplicity 921272

PIN, Spring, 3/16 x 1-3/4

$

$

Not available

7

Simplicity 173442

ROD, Pedal, Lock

$

$

Not available

8

Simplicity 1654538

ROD, Brake, Front,

$

$

Not available

9

Simplicity 1654539

ROD, Brake, Front, R.H.

$

$

Not available

10

Simplicity 164072

TURNBUCKLE, Body

$

$

Not available

11

Simplicity 930625

NUT, Hex, Jam, 3/8-24, L.H.

$

$

Not available

12

Simplicity 2818403

NUT, Hex, Jam, 3/8-24, R.H.

$

$

Not available

13

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 12

0

14

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

15

Simplicity 173417

STOP, Rubber

$

$

Not available

42

Simplicity 1652834

BRAKE LEVER ASSY, L.H.

$

$

Not available

43

Simplicity 168119

BUSHING

$

$

Not available
