72040 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) BRAKE AND CLUTCH PEDAL ASSEMBLY Parts Diagram

Yard Tractor

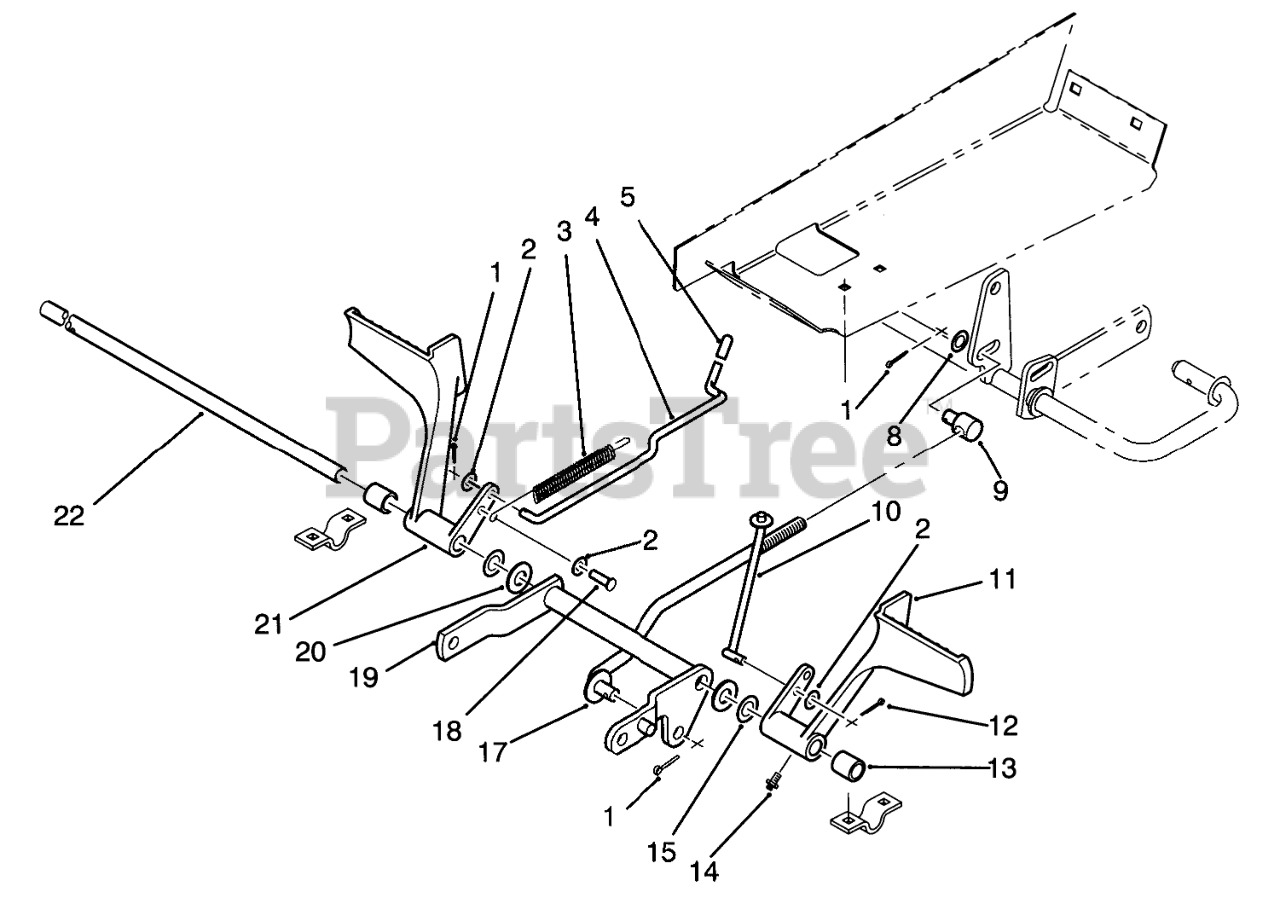

BRAKE AND CLUTCH PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

2

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 78-9200

SPRING-BRAKE

$36.99

$

Usually ships in 3-6 days

0

4

Toro 78-6120

ROD-BRAKE LOCK

$

$

Not available

5

Toro 111439

GRIP

$

$

Not available

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

10

Toro 78-9730

WLDMT-ROD B

$

$

Not available

11

Toro 78-8180

Pedal-Clutch
(Superseded to 78-8180-03)

$

$

Not available

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 110015

SPACER

$

$

Not available

14

Toro 83-2750

Fitting-Grease
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

15

Toro 111712

WASHER-WAVE

$

$

Not available

17

Toro 78-2431

ROD

$100.99

$

Usually ships in 3-6 days

0

18

Toro 932957

Pin-Clevis
(Superseded to 283-61)

$1.99

$

In Stock, only 2 left!

0

19

Toro 78-2112

Arm
(Superseded to 92-6855-03)

$163.99

$

Usually ships in 3-6 days

0

20

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

21

Toro 117234

Pedal-Brake
(Superseded to 93-3228)

$143.99

$

Usually ships in 3-6 days

0

22

Toro 78-6831

SHAFT

$84.99

$

Usually ships in 3-6 days

0
