72040 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

Yard Tractor

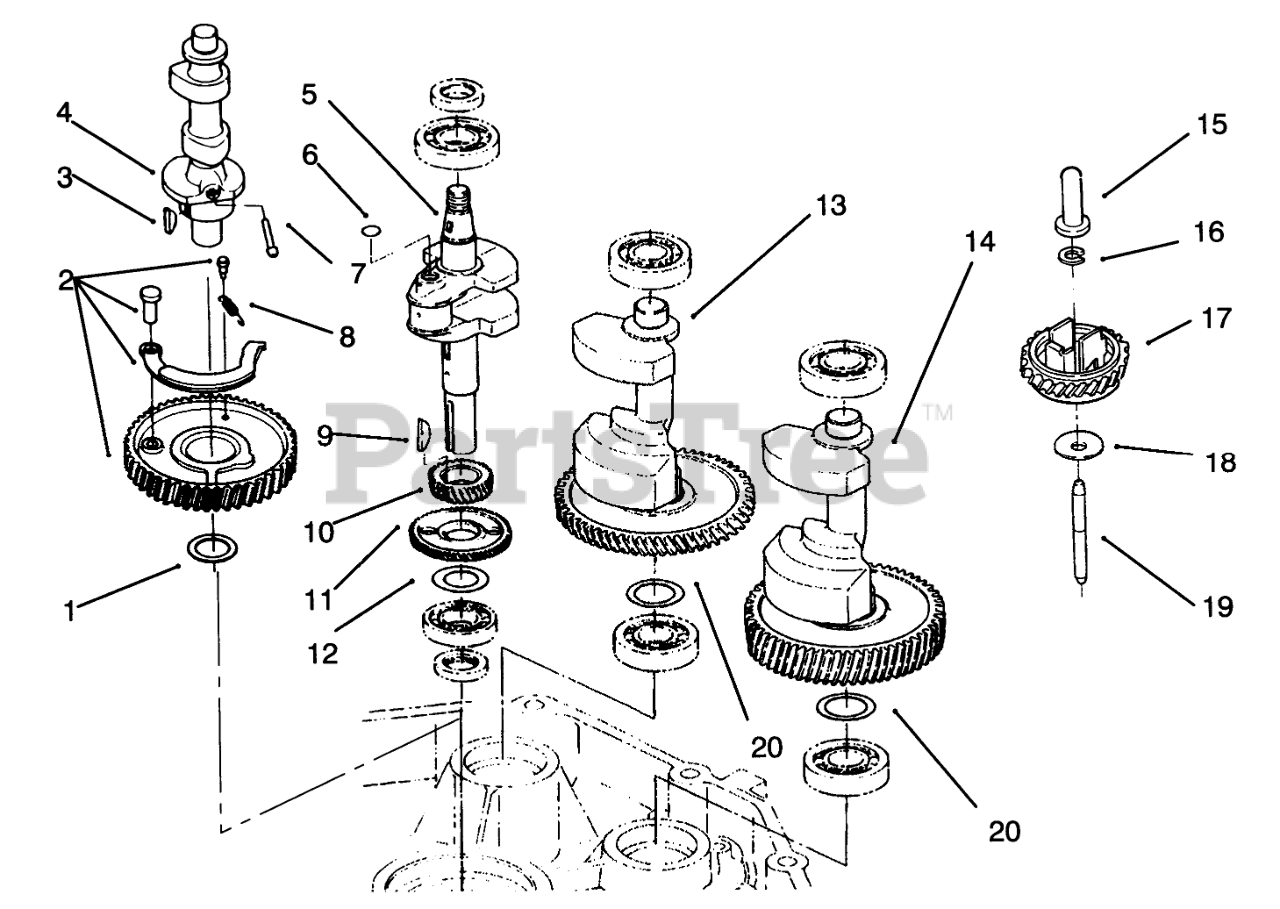

CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro NN10630

SHIM-CAMSHFT 0.5MM

$

$

Not available

Toro NN10631

SHIM-CAMSHFT 0.6MM

Note: Not illustrated

$

$

Not available

Toro NN10632

SHIM-CAMSHFT 0.8MM

Note: Not illustrated

$

$

Not available

Toro NN10633

SHIM-CAMSHFT 0.9MM

Note: Not illustrated

$

$

Not available

Toro NN10634

SHIM-CAMSHFT 1.0MM

Note: Not illustrated

$

$

Not available

Toro NN10635

SHIM-CAMSHFT 1.2MM

Note: Not illustrated

$

$

Not available

2

Toro NN10642

CAMGEAR ASS'Y

$

$

Not available

3

Toro NN10643

KEY-CAMGEAR

$

$

Not available

4

Toro 92-5877

Camshaft Assembly (Incl. Ref. #1-3, 7 & 8)

$825.99

$

Usually ships in 3-6 days

0

5

Toro 92-5939

CRANKSHAFT ASM

$

$

Not available

6

Toro NN10750

PLUG-EXPANSION

$

$

Not available

7

Toro NN10644

PIN-DECOMPRESSION

$

$

Not available

8

Toro NN10645

SPRING-DECOMPRESSION

$

$

Not available

9

Toro NN10745

KEY-CRANKSHAFT GEAR

$

$

Not available

10

Toro NN10742

GEAR-CRANKSHAFT

$103.99

$

Usually ships in 3-6 days

0

11

Toro NN10743

GEAR-BALANCER

$

$

Not available

12

Toro NN10746

SHIM-CRANKSHFT 0.2MM

$

$

Not available

Toro NN10747

SHIM-CRANKSHFT 0.3MM

Note: Not illustrated

$

$

Not available

Toro NN10748

SHIM-CRANKSHFT 0.4MM

Note: Not illustrated

$

$

Not available

Toro NN10749

SHIM-CRANKSHFT 0.5MM

Note: Not illustrated

$

$

Not available

Toro 79-5850

SHIM-CRANK (.70 MM)

Note: Not illustrated

$

$

Not available

Toro 79-5860

SHIM-CRANK (.80 MM)

Note: Not illustrated

$

$

Not available

13

Toro 92-5873

BALANCER SHAFT ASM

$

$

Not available

14

Toro 92-5874

BALANCER SHAFT ASM

$

$

Not available

15

Toro 92-5914

GOVERNOR SLEEVE

$

$

Not available

16

Toro 92-5915

GOV GEAR RETAINER

$

$

Not available

17

Toro NN10636

GEAR-GOVERNOR

$

$

Not available

18

Toro 57-9690

PLUG

$7.99

$

Usually ships in 3-6 days

0

19

Toro 92-5913

PARALLEL PIN

$

$

Not available

20

Toro 92-5940

BALANCER SHAFT SHIM

$

$

Not available

Toro 92-5941

BALANCER SHAFT SHIM

Note: Not illustrated

$

$

Not available

Toro 92-5942

BALANCER SHAFT SHIM

Note: Not illustrated

$

$

Not available

Toro 92-5943

BALANCER SHAFT SHIM

Note: Not illustrated

$

$

Not available

Toro 92-5944

BALANCER SHAFT SHIM

Note: Not illustrated

$

$

Not available

Toro 92-5945

BALANCER SHAFT SHIM

Note: Not illustrated

$

$

Not available

Toro 92-5946

BALANCER SHAFT SHIM

Note: Not illustrated

$

$

Not available
