72040 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) CYLINDER HEAD & VALVES ASSEMBLY Parts Diagram

Yard Tractor

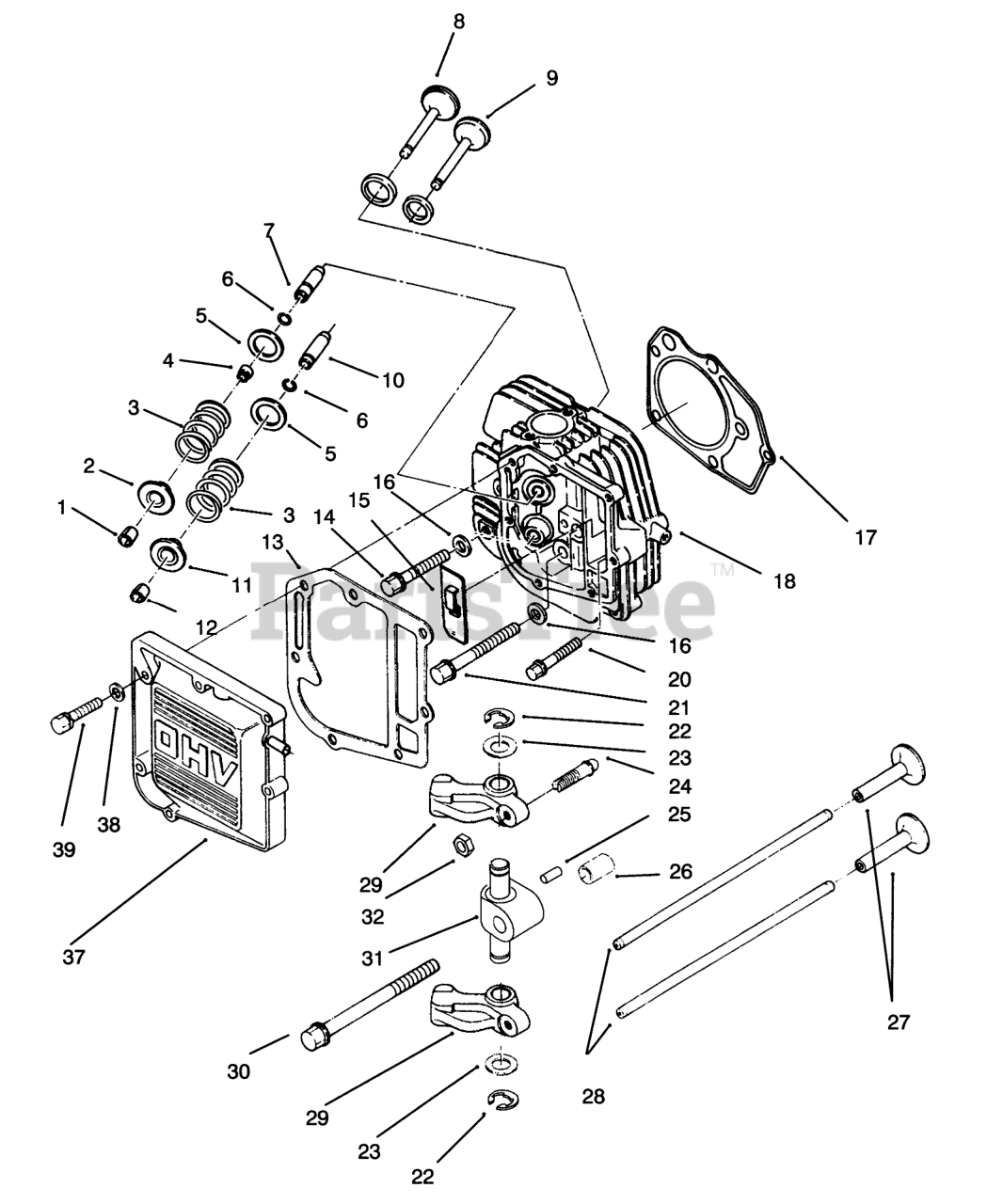

CYLINDER HEAD & VALVES ASSEMBLY Parts Diagram

  • Title

1

Toro 92-5881

V SPRING RETAINER LOCK

$

$

Not available

2

Toro 92-5879

INT V SPRING RETAINER

$

$

Not available

3

Toro 92-5878

VALVE SPRING

$

$

Not available

4

Toro NN10605

Seal-Intake
(Superseded to 71-6180)

$19.99

$

Usually ships in 3-6 days

0

5

Toro NN10606

WASHER-VALVE SPRING

$

$

Not available

6

Toro NN10604

RING-VALVE GUIDE

$

$

Not available

7

Toro 79-5880

GUIDE-INTAKE VALVE

$

$

Not available

8

Toro NN10598

VALVE-INTAKE MKD IN

$

$

Not available

9

Toro NN10599

VALVE-EXHAUST MKD EX

$

$

Not available

10

Toro 79-5870

GUIDE-EXH VALVE

$

$

Not available

11

Toro 92-5880

EXH V SPRING RETAINER

$

$

Not available

12

Toro 92-5933

EXHAUST VALVE LOCK

$

$

Not available

13

Toro 92-5883

Gasket
(Superseded to 92-5949)

$

$

Not available

14

Toro NN10615

BLT-CYL HD M10X66MM

$

$

Not available

15

Toro NN10612

BREATHER

$

$

Not available

16

Toro NN10614

WASHER-FLAT M10

$

$

Not available

17

Toro NN10592

GSKT-CYL HEAD

$

$

Not available

18

Toro 92-5884

Cylinder Head Assembly (Incl. Ref. #1-10, 11 & 12)

$

$

Not available

Toro NN10780

Cylinder Head Assembly (Incl. Ref. #7 & 10)

Note: Not illustrated

$

$

Not available

20

Toro NN10608

BLT-CYL HD M8X50MM

$

$

Not available

21

Toro NN10616

BLT-CYL HD M10X86MM

$

$

Not available

22

Toro NN10624

CLIP-RETAINER

$

$

Not available

23

Toro 92-5934

ROCKER ARM WASHER

$

$

Not available

24

Toro NN10620

SCRW-LASH ADJUSTING

$

$

Not available

25

Toro NN10625

PIN-DOWEL

$

$

Not available

26

Toro NN10626

PIN-DOWEL HOLLOW

$

$

Not available

27

Toro NN10617

TAPPET

$

$

Not available

28

Toro NN10618

ROD-PUSH

$

$

Not available

29

Toro NN10619

Rocker Arm Assembly (Incl. Ref. #24 & 32)

$

$

Not available

30

Toro NN10607

BLT-CYL HD M10X125MM

$

$

Not available

31

Toro NN10622

SHAFT-ROCKER ARM

$

$

Not available

32

Toro NN10621

NUT-LASH ADJUSTING

$

$

Not available

37

Toro 92-5924

VALVE COVER

$289.99

$

Usually ships in 3-6 days

0

38

Toro 82-1340

WASHER-FLAT

$

$

Not available

39

Toro NN10613

SCRW-CP SH M6X25MM

$

$

Not available

Toro 92-5923

COMP ENG GASKET KIT

Note: Not illustrated

$204.99

$

Usually ships in 3-6 days

0

Toro 92-5949

ENGINE GASKET SET

$

$

Not available

Toro NN10692

SHORT-BLOCK (T-260)

$

$

Not available

Toro NN10592

GSKT-CYL HEAD

$

$

Not available

Toro 92-5895

A/C GASKET

$

$

Not available

Toro 92-5915

GOV GEAR RETAINER

$

$

Not available

Toro 92-5869

FUEL PUMP GROMMET

$

$

Not available

Toro NN10323

O-Ring
(Superseded to 57-9610)

$8.49

$

Usually ships in 3-6 days

0

Toro NN10575

RING-O

$

$

Not available

Toro NN10646

SEAL-GVR SHAFT LEVER

$

$

Not available

Toro NN10569

SEAL-OIL CRNKSHFT UP

$20.99

$

Usually ships in 3-6 days

0

Toro NN10698

WRAPPER-ELEMENT

$22.99

$

In Stock, only 1 left!

0

Toro 92-5885

VALVE COVER KIT

Note: Not illustrated

$

$

Not available

Toro 92-5867

VAL GND GASKET KIT

Note: Not illustrated

$

$

Not available

Toro NN10605

Seal-Intake
(Superseded to 71-6180)

$19.99

$

Usually ships in 3-6 days

0

Toro 92-5883

Gasket
(Superseded to 92-5949)

$

$

Not available

Toro NN10708

Gasket
(Superseded to 117184)

$35.99

$

Usually ships in 3-6 days

0
