72041 (244-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) CARBURETOR AND FUEL PUMP Parts Diagram

Yard Tractor

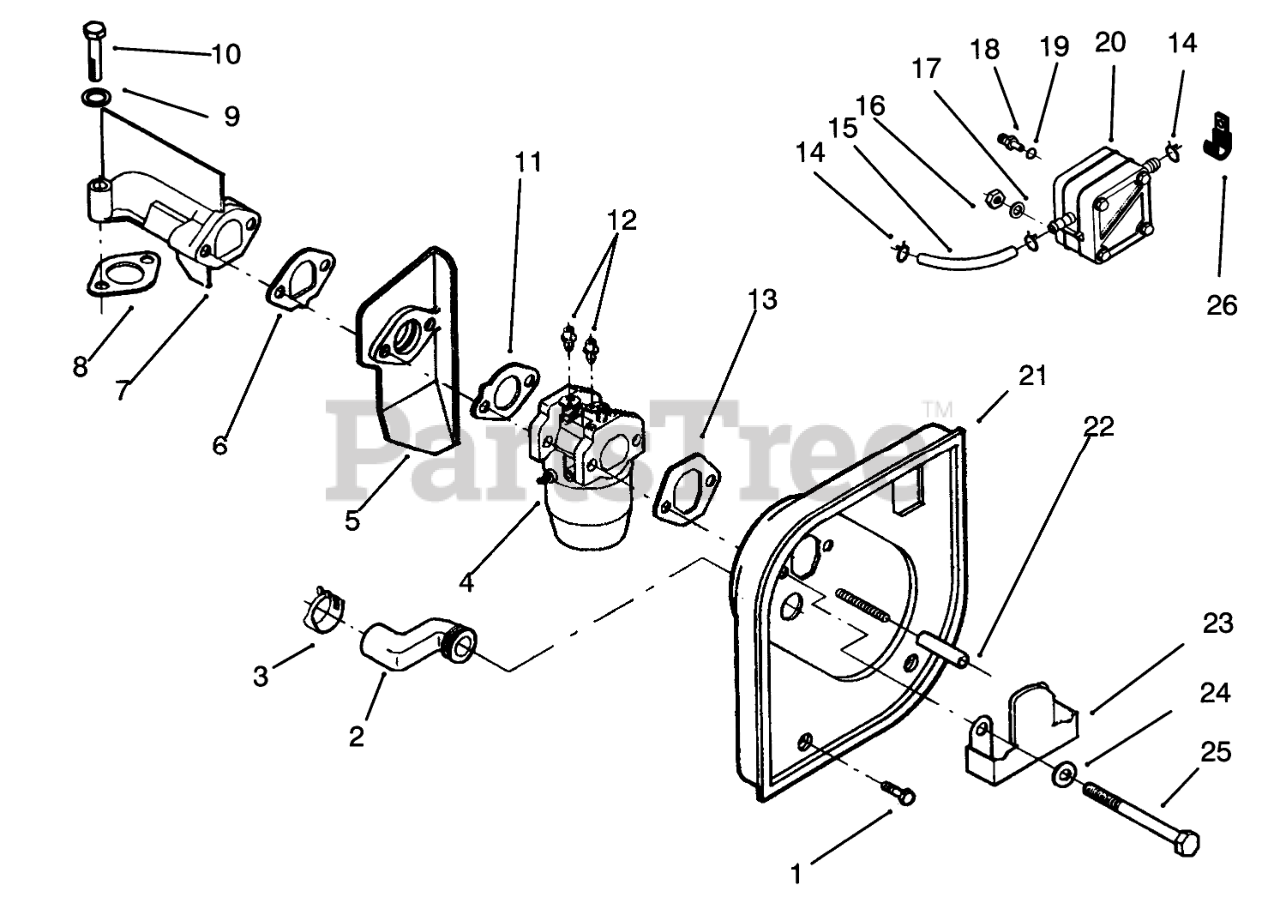

CARBURETOR AND FUEL PUMP Parts Diagram

  • Title

1

Toro 82-1540

SCREW-HWH

$

$

Not available

2

Toro 92-5930

BREATHER TUBE

$

$

Not available

3

Toro NN10812

CLAMP-HOSE

$

$

Not available

4

Toro 92-5909

CARBURETOR

$

$

Not available

5

Toro 92-5906

CARB INSULATOR

$

$

Not available

6

Toro 92-5908

Gasket-Insulator
(Superseded to 92-5949)

$

$

Not available

7

Toro 92-5922

INTAKE ELBOW

$

$

Not available

8

Toro 92-5905

Gasket-Intake
(Superseded to 92-5949)

$

$

Not available

9

Toro 79-5830

WASHER-FLAT (M8)

$

$

Not available

10

Toro 79-5820

SCR-HHC (M8X50)

$

$

Not available

11

Toro 92-5907

Gasket-Insulator
(Superseded to 92-5949)

$

$

Not available

12

Toro 92-5920

LINK CLIP

$

$

Not available

13

Toro 92-5895

A/C GASKET

$

$

Not available

14

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 4 left!

0

15

Toro 92-5868

FUEL HOSE

$

$

Not available

16

Toro 92-5871

HEX NUT

$

$

Not available

17

Toro 82-1660

WASHER-LOCK

$

$

Not available

18

Toro 92-5929

FUEL PUMP SPUD

$

$

Not available

19

Toro 92-5869

FUEL PUMP GROMMET

$

$

Not available

20

Toro 92-5912

FUEL PUMP

$

$

Not available

21

Toro 92-5897

AIR CLEANER PAN ASM

$

$

Not available

22

Toro 92-5931

AIR CLEANER SPCR SEAL

$

$

Not available

23

Toro 92-5866

AIR DEFLECTOR PLATE

$

$

Not available

24

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

25

Toro 92-5870

THREAD FORM SCREW

$

$

Not available

26

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

Toro 92-5910

CARB FLOAT KIT

$

$

Not available

Toro 92-5911

CARB REPAIR KIT

$

$

Not available
