72041 (244-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) Idler And Pedal Shaft Assembly Parts Diagram

Yard Tractor

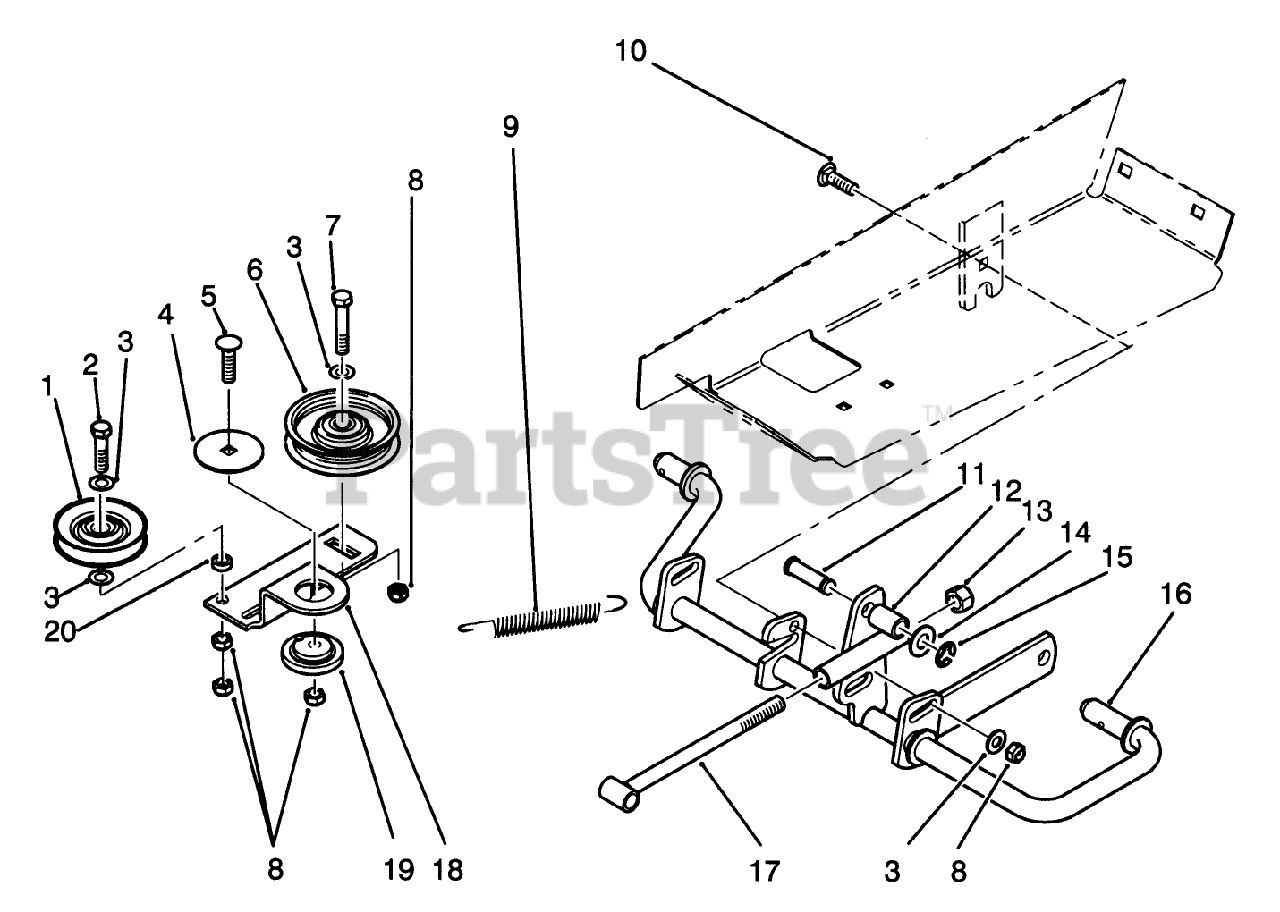

Idler And Pedal Shaft Assembly Parts Diagram

  • Title

1

Toro 1623

See Supercession: 92-7102
(Superseded to 92-7102)

$77.99

$

In Stock, only 2 left!

0

2

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 111419

WASHER-BEARING

$

$

Not available

5

Toro 900065

See Supercession: 3231-4
(Superseded to 323-14)

$4.49

$

In Stock, Qty 20+

0

6

Toro 112425

See Supercession: 92-7101
(Superseded to 92-7101)

$44.99

$

In Stock, only 2 left!

0

7

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 79-7530

SPRING - CLUTCH

$41.99

$

Usually ships in 3-6 days

0

10

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

11

Toro 79-1250

PIN

$21.99

$

Usually ships in 3-6 days

0

12

Toro 78-7390

TUBE

$

$

Not available

13

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

15

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

16

Toro 79-3401

See Supercession: 79-3401-03
(Superseded to 79-3401-03)

$

$

Not available

17

Toro 78-7360

ROD

$

$

Not available

18

Toro 78-6771

ARM-IDLER

$

$

Not available

19

Toro 111418

BUSHING

$33.99

$

In Stock, only 2 left!

0

20

Toro 104525

See Supercession: 93-3658
(Superseded to 93-3658)

$10.99

$

Usually ships in 3-6 days

0
