72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) BRAKE INTERLOCK Parts Diagram

Yard Tractor

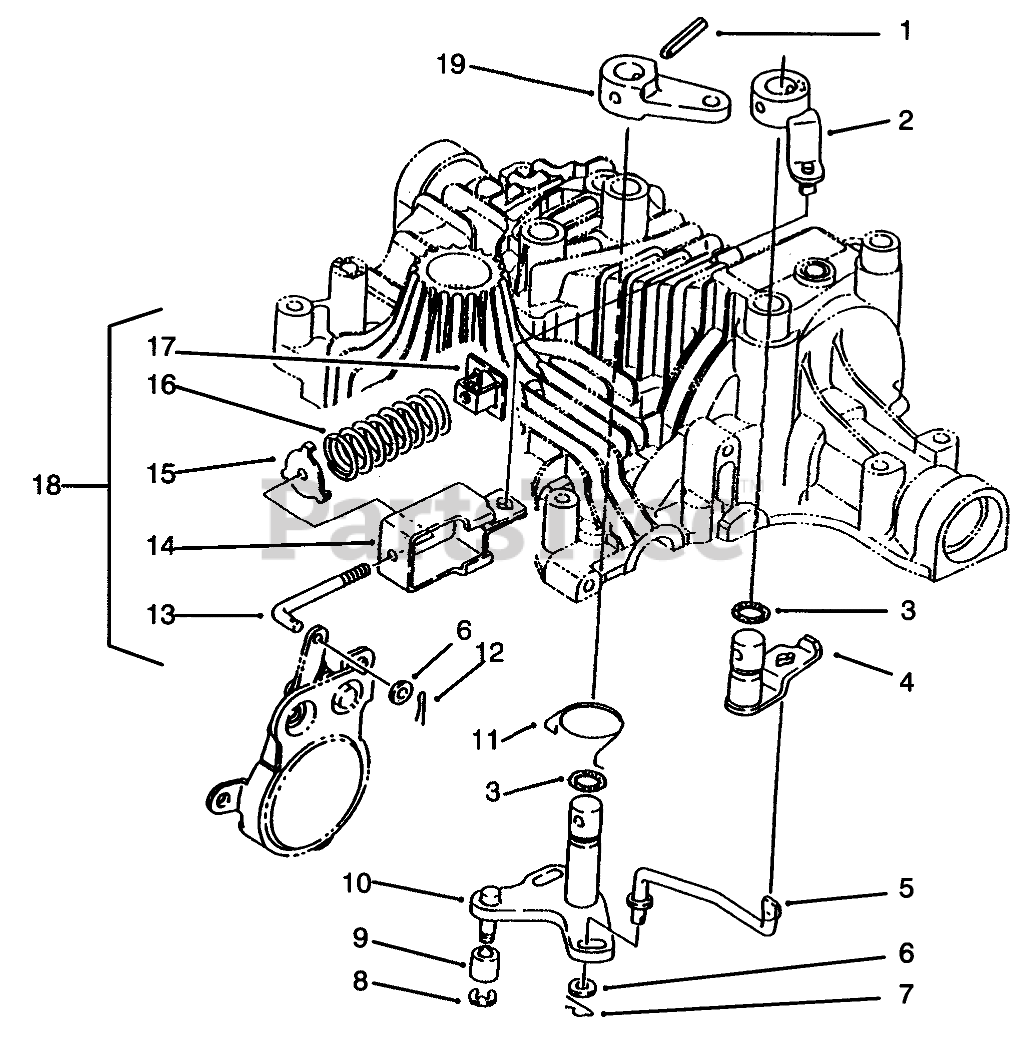

BRAKE INTERLOCK Parts Diagram

  • Title

1

Toro 93-0411

Pin-Roll (Only On: 72043, 72063, 72103)

$9.49

$

Usually ships in 3-6 days

0

2

Toro 93-0433

Arm-Brake B (Only On: 72043, 72063, 72103)

$

$

Not available

3

Toro 93-0418

Packing (Only On: 72043, 72063, 72103)

$8.49

$

In Stock, only 3 left!

0

4

Toro 93-0432

Arm-Brake A (Only On: 72043, 72063, 72103)

$

$

Not available

5

Toro 93-0431

Rod-Brake (Only On: 72043, 72063, 72103)

$

$

Not available

6

Toro 93-0435

Washer (Only On: 72043, 72063, 72103)

$

$

Not available

7

Toro 93-0434

Pin-Snap (Only On: 72043, 72063, 72103)

$

$

Not available

8

Toro 93-0410

Ring (Only On: 72043, 72063, 72103)

$

$

Not available

9

Toro 93-0421

Bushing (Only On: 72043, 72063, 72103)

$31.99

$

Usually ships in 3-6 days

0

10

Toro 93-0430

Shaft-Brake (Only On: 72043, 72063, 72103)

$394.99

$

Usually ships in 3-6 days

0

11

Toro 93-0422

Return-Brake (Only On: 72043, 72063, 72103)

$47.99

$

In Stock, only 1 left!

0

12

Toro 93-0412

Pin-Cotter (Only On: 72043, 72063, 72103)

$

$

Not available

13

Toro 93-0428

Rod-Adjuster (Only On: 72043, 72063, 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

14

Toro 93-0426

Holder-Spring (Only On: 72043, 72063, 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

15

Toro 93-0425

Guide-Spring (Only On: 72043, 72063, 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

16

Toro 93-0427

Spring (Only On: 72043, 72063, 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

17

Toro 93-0424

Adjuster (Only On: 72043, 72063, 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

18

Toro 93-0423

Rod ASM INCL 13-17 (Only On: 72043, 72063, 72103)

$

$

Not available

19

Toro 93-0429

Arm-Brake (Only On: 72043, 72063, 72103)

$

$

Not available
