72043 (264-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) Single Cylinder Engine, Muffler, And P.t.o. Parts Diagram

Yard Tractor

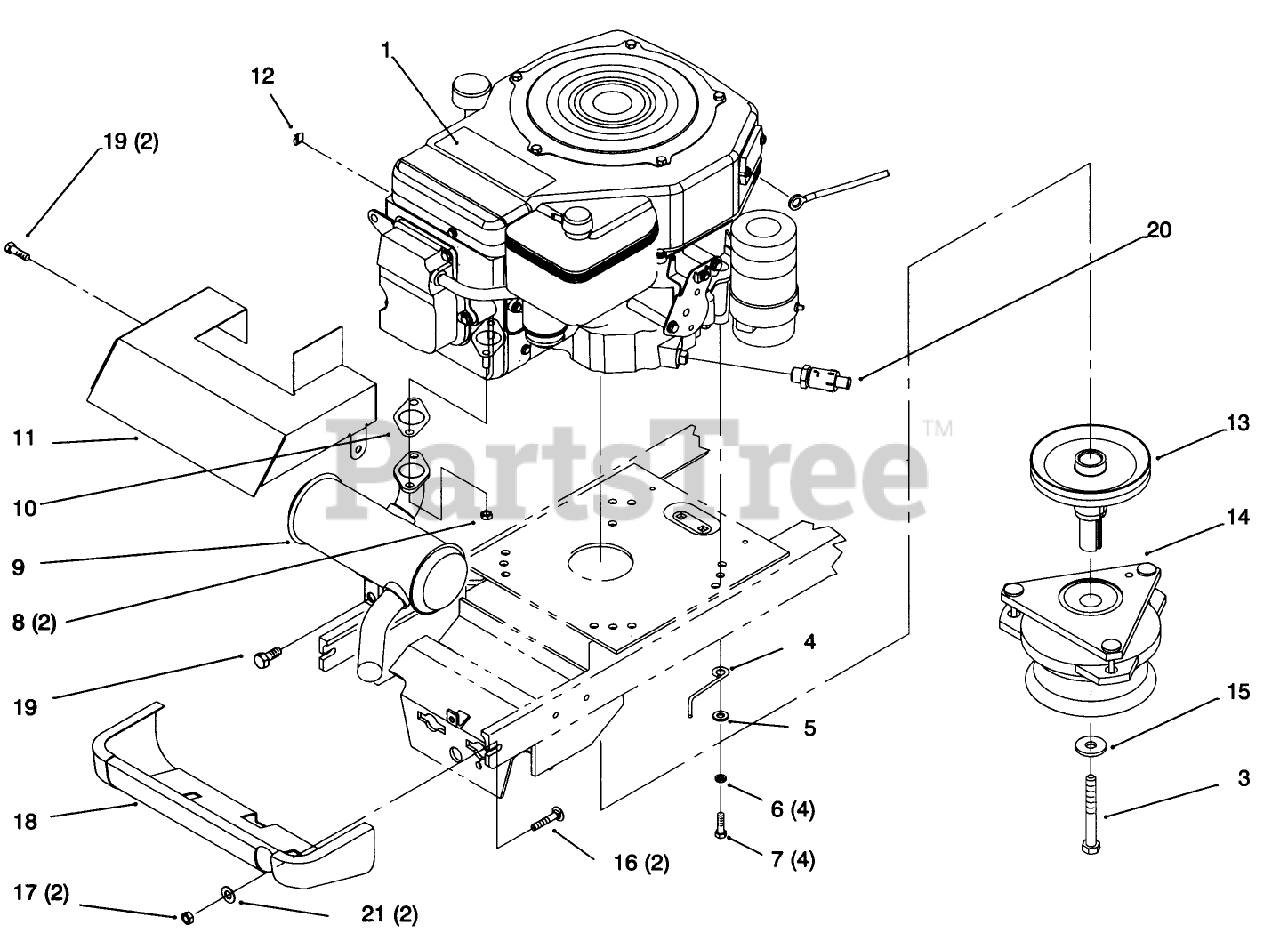

Single Cylinder Engine, Muffler, And P.t.o. Parts Diagram

  • Title

1

Toro 92-6764

DECAL - ENGINE

$

$

Not available

3

Toro 115203

HHCS-M10X1.5X110 ESL

$12.99

$

In Stock, only 1 left!

0

4

Toro 79-0390

GUIDE-BELT

$

$

Not available

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

7

Toro 48-7730

See Supercession: 33114-030
(Superseded to 33114-030)

$1.99

$

Usually ships in 3-6 days

0

8

Toro 92-6780

See Supercession: 33004-00
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 9

0

9

Toro 92-6862

DISCONTINUED

$

$

Not available

10

Toro 92-6716

KOHLER 12-041-03

$

$

Not available

11

Toro 92-6878-03

SHIELD-MUFFLER

$125.99

$

Usually ships in 3-6 days

0

12

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

13

Toro 92-6888

PULLEY-ENGINE

$218.99

$

Usually ships in 3-6 days

0

13

Toro 93-0321

PULLEY- ENGINE GEAR

$232.99

$

Usually ships in 3-6 days

0

14

Toro 92-6885

CLUTCH - ELEC PTO

$1115.99

$

Usually ships in 3-6 days

0

15

Toro 112843

WASHER

$3.99

$

In Stock, Qty 6

0

16

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 92-6867-01

DISCONTINUED
(Superseded to 100-3541-01)

$

$

Not available

19

Toro 9266934

SCREW

$9.49

$

In Stock, only 4 left!

0

20

Toro 92-6877

VALVE-DRAIN, OIL

$44.99

$

In Stock, only 3 left!

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
