72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) Air Intake/filtration Parts Diagram

Lawn & Garden Tractor

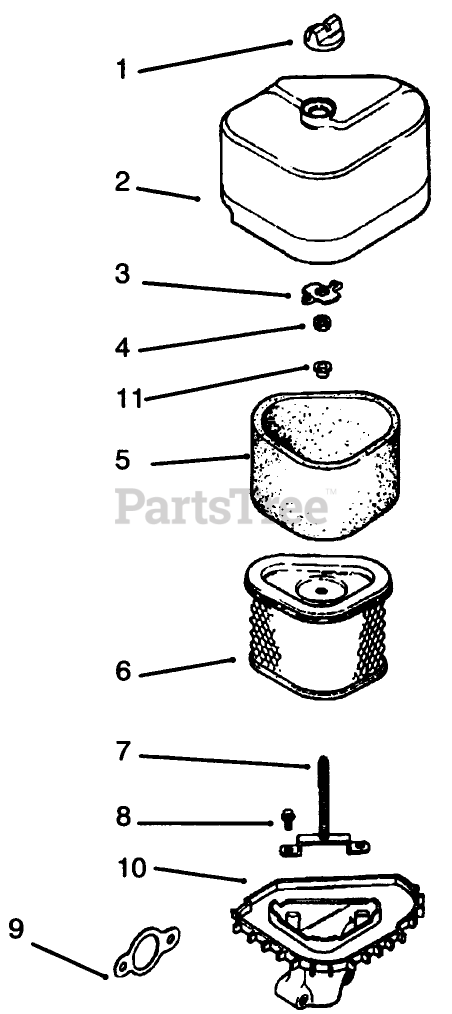

Air Intake/filtration Parts Diagram

  • Title

1

Toro 12_341_02

Knob-Air Cleaner Cover

$

$

Currently unavailable

2

Toro 12 096 24

Cover-Air Cleaner

$

$

Currently unavailable

3

12_100_01

Nut-Wing

$

$

Not available

4

Toro X-25-63

Washer

$

$

Currently unavailable

5

Toro 12 083 05

Element-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

6

12_083_08

Precleaner-Element (Only On: 72042,72043,72062,72063)

$

$

Not available

7

Toro 12 072 05

Stud M-6x1.0x66

$

$

Currently unavailable

8

12_086-01

Screw-Mounting Plate

$

$

Not available

9

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

10

Toro 12 094 05

Base-Air Cleaner (Incl.

$

$

Currently unavailable

11

Toro 12 313 04

Grommet

$

$

Currently unavailable

Toro 12 113 04

Decal-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 743 04

Kit-Air Cleaner Incl 1-11

Note: Not illustrated

$

$

Currently unavailable
