72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) GEAR SHIFT LINKAGE Parts Diagram

Lawn & Garden Tractor

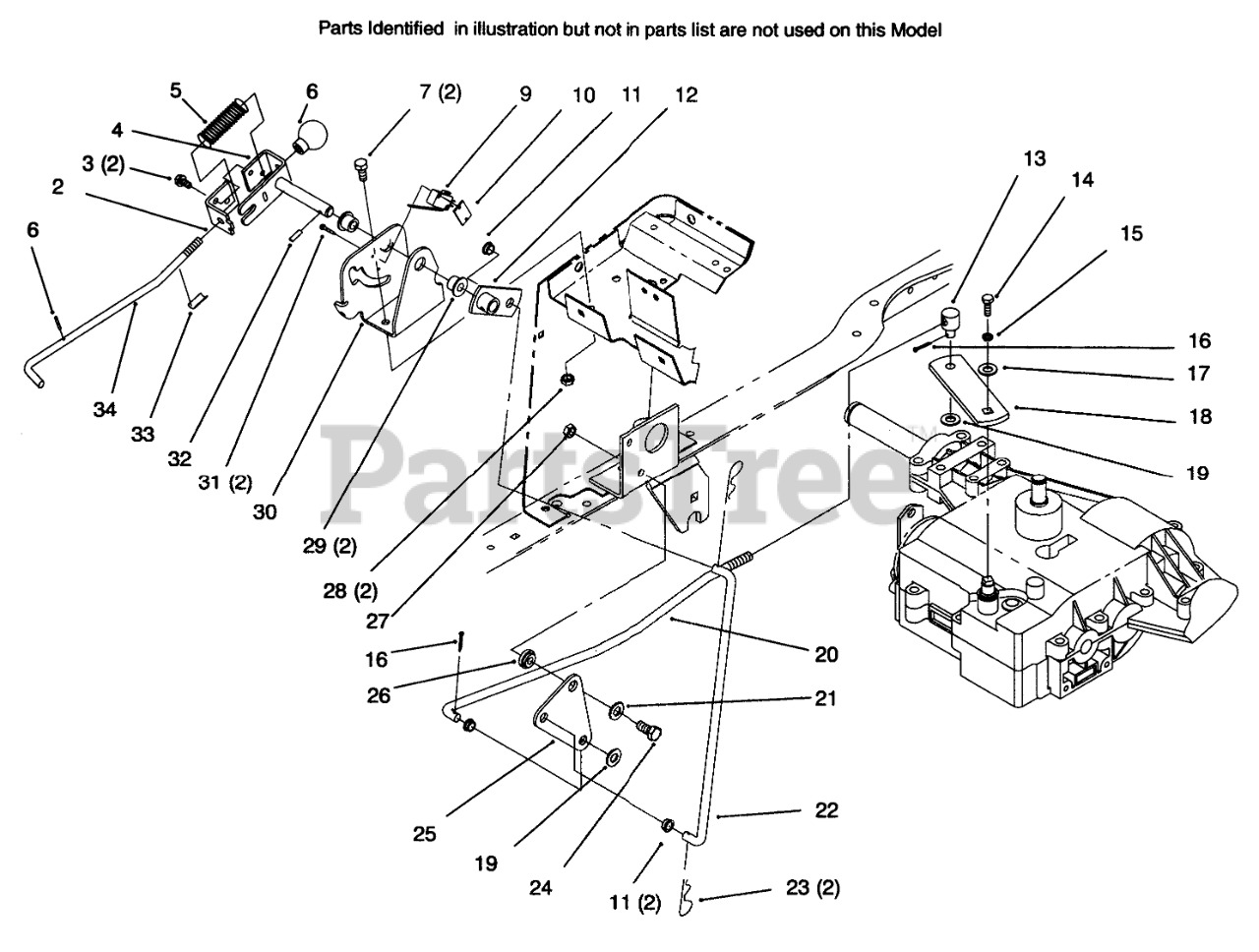

GEAR SHIFT LINKAGE Parts Diagram

  • Title

1

Toro 32121-97

PIN

$0.99

$

In Stock, only 1 left!

0

2

Toro 92-6921

BRACKET - SHAFT

$

$

Not available

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 92-6919

PIVOT ARM WA PLATED

$70.99

$

Usually ships in 3-6 days

0

5

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

6

Toro 233-42

KNOB

$13.99

$

In Stock, only 3 left!

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 115230

SWITCH - CLUTCH

Note: Refer to Lawn/Yard Tractor Service Bulletin for early models with black switches (P/N, Removal, Installation).

$30.99

$

Usually ships in 3-6 days

0

10

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

11

Toro 92-6875

BRG - SHIFT LINKAGE
(Superseded to 5979)

$3.49

$

In Stock, Qty 16

0

12

Toro 92-6926-03

TUBE-LINKAGE

$37.99

$

Usually ships in 3-6 days

0

13

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

14

Toro 329-23

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

15

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

17

Toro 7-5461

SPACER

$2.99

$

Usually ships in 3-6 days

0

18

Toro 92-6886

BRK-TRASXL SHI

$

$

Not available

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 92-6896

ROD - TRANSAXLE SHIFT

$

$

Not available

21

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

22

Toro 92-7005

ROD - LINKAGE

$24.99

$

Usually ships in 3-6 days

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 93-0524

BRACKET - PIVOT

$

$

Not available

26

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 256-219

BUSHING

$8.99

$

In Stock, only 1 left!

0

30

Toro 93-0503-03

BRKT-PIVOT MTG (BLACK)

$

$

Not available

31

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

32

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

33

Toro 93-3141

DECAL - REVERSE GEAR

$10.99

$

Usually ships in 3-6 days

0

34

Toro 92-6920

ROD - SHIFT

$77.99

$

In Stock, only 2 left!

0
