72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) SINGLE CYLINDER ENGINE, MUFFLER, AND P.T.O. Parts Diagram

Lawn & Garden Tractor

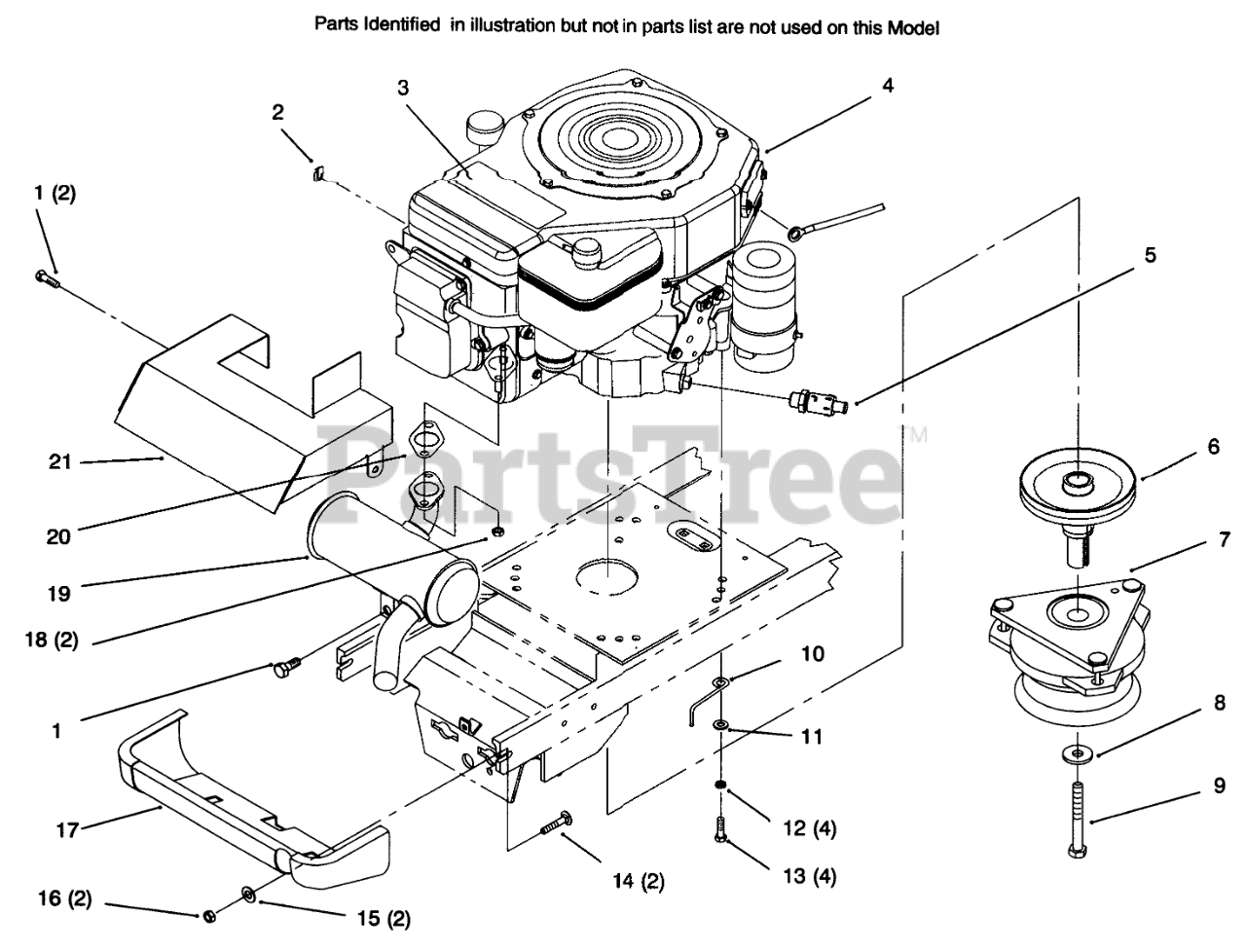

SINGLE CYLINDER ENGINE, MUFFLER, AND P.T.O. Parts Diagram

  • Title

1

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 7

0

2

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0

3

Toro 94-2970

DECAL - LOGO

$

$

Not available

4

Toro 94-3329

Engine-Kohler

$

$

Currently unavailable

5

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, Qty 6

0

6

Toro 93-0321

PULLEY- ENGINE GEAR

$186.99

$

Usually ships in 3-6 days

0

7

Toro 94-2514

CLUTCH - PTO

$1065.99

$

Usually ships in 3-6 days

0

8

Toro 112843

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Toro 115203

HHCS-M10X1.5X110 ESL

$10.99

$

Usually ships in 3-6 days

0

10

Toro 79-0390

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 48-7730

SCREW-CAP, HH
(Superseded to 33114-030)

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-6867-01

Shield-Muffler
(Superseded to 100-3541-01)

$

$

Not available

18

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, only 3 left!

0

19

Toro 92-6862

Muffler

$

$

Not available

20

Toro 92-6716

Gasket-Exhaust

$

$

Not available

21

Toro 92-6878-03

SHIELD-MUFFLER

$98.99

$

Usually ships in 3-6 days

0
