72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) Starting System Parts Diagram

Lawn & Garden Tractor

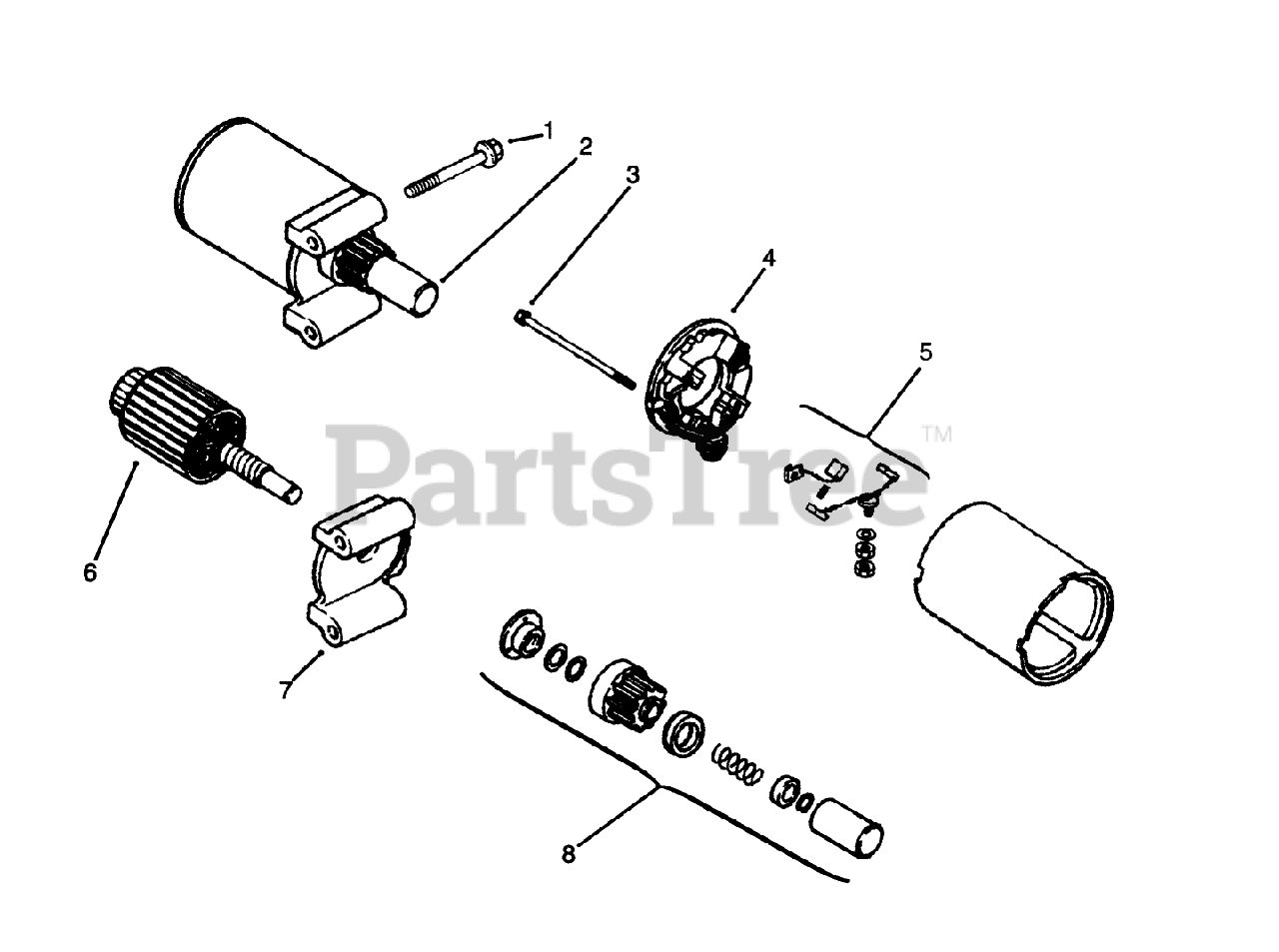

Starting System Parts Diagram

  • Title

1

Toro M0839070

Screw M8x1.25x70 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

2

12_098_13

Starter ASM Incl 3-8

$

$

Not available

3

Toro 12 086 25

Screw

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

4

Toro 12 227 11

Cap-Communtator Incl 5

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 82 755 28

Kit-Brush And Spring (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

6

12_170_03

Armature-Starter

Note: Included in a service kit or in an assembly

$

$

Not available

7

Toro 12_227_05

Cap-Drive End

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12 755 53

Kit-Drive

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

Toro 52 357 01

Lubricant-Starter (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Currently unavailable
