72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) Air Intake/filtration Parts Diagram

Lawn & Garden Tractor

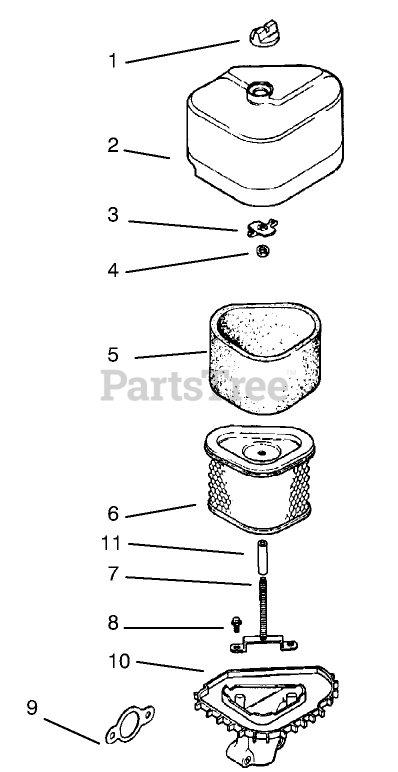

Air Intake/filtration Parts Diagram

  • Title

1

Toro 25 341 03

Knob-Cover

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 12 096 45

Cover-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

12_100_01

Nut-Wing

Note: Obtain Parts From Kohler

$

$

Not available

4

Toro X-25-63

Washer

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 083 05

Element-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

12_083_08

Precleaner-Element (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

7

Toro 12 072 05

Stud M-6x1.0x66

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 086 01

Screw-Mounting Plate (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro 12 094 05

Base-Air Cleaner (Incl.

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 032 10

Seal

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 113 04

Decal-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 113 04

Decal-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 743 04

Kit-Air Cleaner Incl 1-11

Note: Not illustrated

$

$

Currently unavailable

Toro 12 743 04

Kit-Air Cleaner Incl 1-11

Note: Obtain Parts From Kohler

$

$

Currently unavailable
