72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) Blower Housing Baffles-Kohler Parts Diagram

Lawn & Garden Tractor

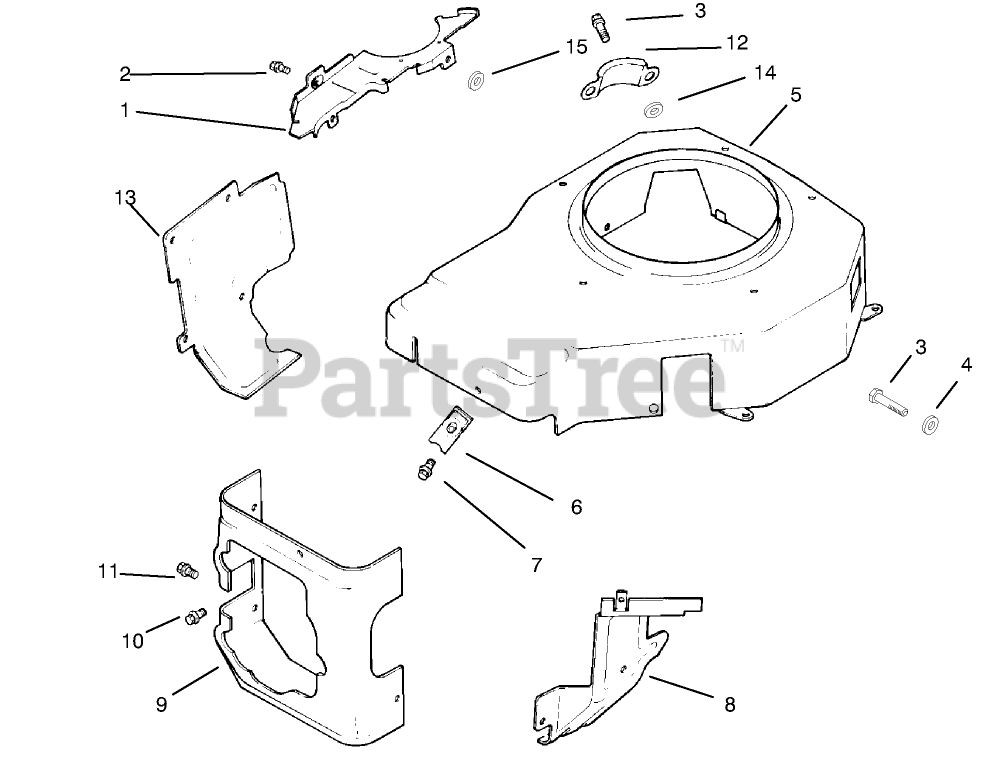

Blower Housing Baffles-Kohler Parts Diagram

  • Title

1

12_146_07

Plate-Blower Housing (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

2

Toro M-0545010

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 24_086_18

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro X-25-92

Washer

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 027 32

Housing-Blower

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro 25 154 02

Clip

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro M-0545020

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 063 05

Baffle-Carburetor (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 063 08

Baffle-Cylinder Head (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro M-0645016

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro M-0645020

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 24 096 05

Cover-Pinion

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 12 063 01

Baffle-Cylinder Barrel (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 220534

Washer

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 24 468 10

Washer

Note: Obtain Parts From Kohler

$

$

Currently unavailable
