72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) Engine Controls-Kohler Parts Diagram

Lawn & Garden Tractor

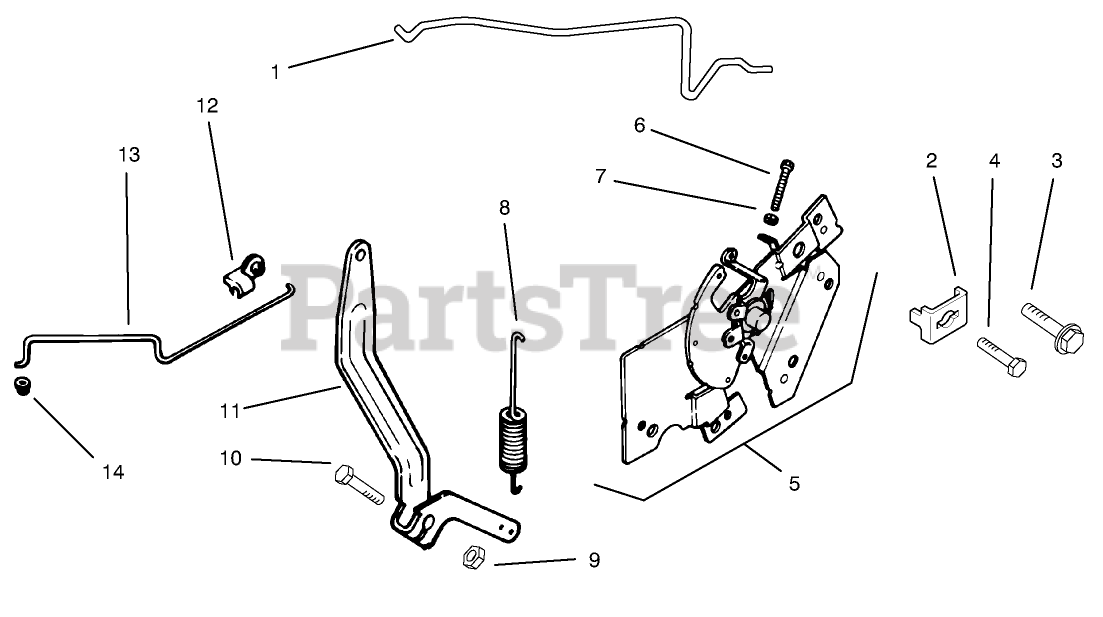

Engine Controls-Kohler Parts Diagram

  • Title

1

12_079_07

Linkage-Choke (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

2

Toro 12_237_01

Clamp

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro M-0664020

Screw Socket

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 536 02

Control-ASM INC 6-7 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro M-0401030

Screw-HHF M4x0.7x28 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro M-0401030

Screw-HHF M4x0.7x28 (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro M-0446030

Nut

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro M-0446030

Nut

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 52 089 07

Spring-Governor (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro M-0641060

Nut

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro SM-0642025

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 090 05

Lever-Governor (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 25_158_11

Bushing-Linkage

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 12 079 01

Linkage-Throttle (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 25_158_08

Bushing

Note: Obtain Parts From Kohler

$

$

Currently unavailable
