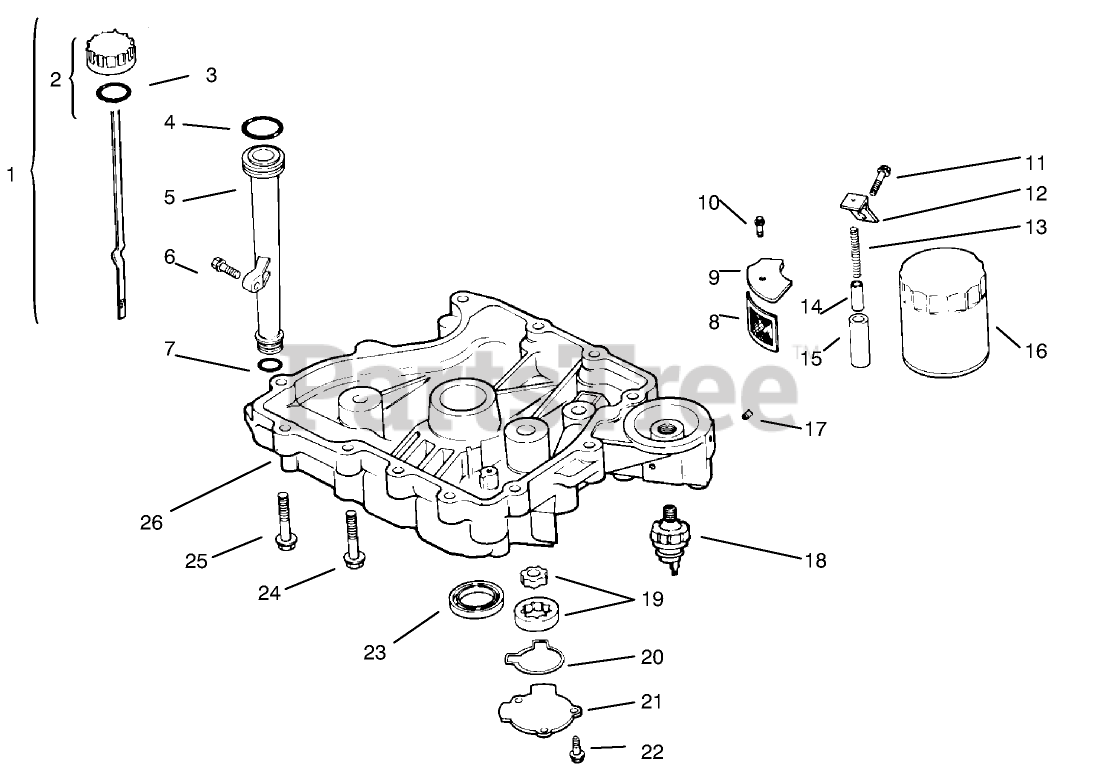

72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) Oil Pan/lubrication-Kohler Parts Diagram

Lawn & Garden Tractor

Oil Pan/lubrication-Kohler Parts Diagram

  • Title

1

Toro 12 038 01

Dipstick INC 2-3 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 25_755_13

Kit-Oil Fill Cap (Incl. Ref. #7)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 25_755_13

Kit-Oil Fill Cap (Incl. Ref. #7)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

3

12_153_03

ORing

Note: Included in a service kit or in an assembly

$

$

Not available

3

12_153_03

ORing

Note: Obtain Parts From Kohler

$

$

Not available

4

12_153_02

O Ring-Upper Fill Tube (Only On: 72103)

Note: Obtain Parts From Kohler

$

$

Not available

5

Toro 12 123 04

Tube-Oil Fill (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro M-0545020

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 12 153 01

O-Ring-Lower Fill Tube (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 162 07

Screen-Oil Pickup

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 096 03

Cover-Oil Pickup Screen (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro M-1039025

Screw M10x1.5x25 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

12_126_02

Bracket-Oil Pump Relief (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

13

12_089_03

Spring-Oil Relief Valve (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

14

Toro 12 462 01

Piston-Oil Relief Valve (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 12 208 01

Body-Oil Relief Valve (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

12_050_01

Filter-Oil

Note: Obtain Parts From Kohler

$

$

Not available

17

Toro X-75-10

Plug

Note: Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 52_099_06

Switch-Oil Pressure

Note: Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 12 393 01

Pump-Oil (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

20

12_032_04

O Ring-Oil Pump Cover (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

21

12_096_02

Cover-Oil Pump (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Not available

22

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

23

Toro 12 032 03

Seal-Crankshaft (Only On: 72042, 72043, 72062, 72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

24

Toro 24_086_16

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

25

Toro 24 086 17

Screw M8x1.25x45 (Only On: 72103, 72083)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

26

Toro 12_199_21

Pan-Oil (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 52_518_21

Lead-Oil Switch W/Tabs (Only On: 72042,72043,72062,72063)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro 52_518_21

Lead-Oil Switch W/Tabs (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable
