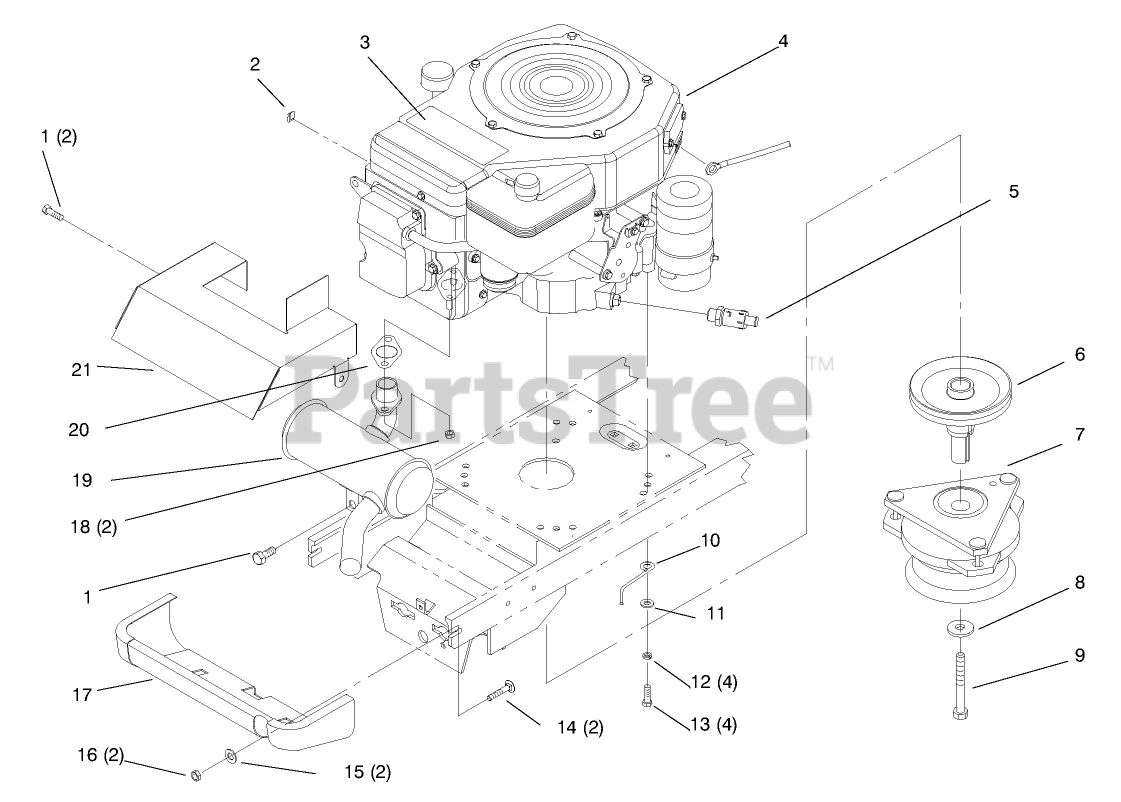

72045 (265-6) - Toro Lawn & Garden Tractor (SN: 089000400 - 089099999) (1998) Single Cylinder Engine, Muffler, And P.t.o. Parts Diagram

Lawn & Garden Tractor

Single Cylinder Engine, Muffler, And P.t.o. Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

2

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

3

Toro 94-2970

DISCONTINUED

$

$

Not available

4

Toro 95-3041

DISCONTINUED

$

$

Not available

5

Toro 92-6877

VALVE-DRAIN, OIL

$44.99

$

In Stock, only 3 left!

0

6

Toro 93-0321

PULLEY- ENGINE GEAR

$232.99

$

Usually ships in 3-6 days

0

7

Toro 94-2514

CLUTCH - PTO

$

$

Not available

8

Toro 112843

WASHER

$3.99

$

In Stock, Qty 6

0

9

Toro 9114466

SCREW-HH

$

$

Not available

10

Toro 79-0390

GUIDE-BELT

$

$

Not available

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 33114-030

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-6867-01

DISCONTINUED
(Superseded to 100-3541-01)

$

$

Not available

18

Toro 92-6780

See Supercession: 33004-00
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 9

0

19

Toro 95-1663

MUFFLER - SINGLE

$

$

Not available

20

Toro 92-6716

KOHLER 12-041-03

$

$

Not available

21

Toro 92-6878-03

SHIELD-MUFFLER

$125.99

$

Usually ships in 3-6 days

0
