72046 (265-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) ENGINE CONTROLS Parts Diagram

Lawn & Garden Tractor

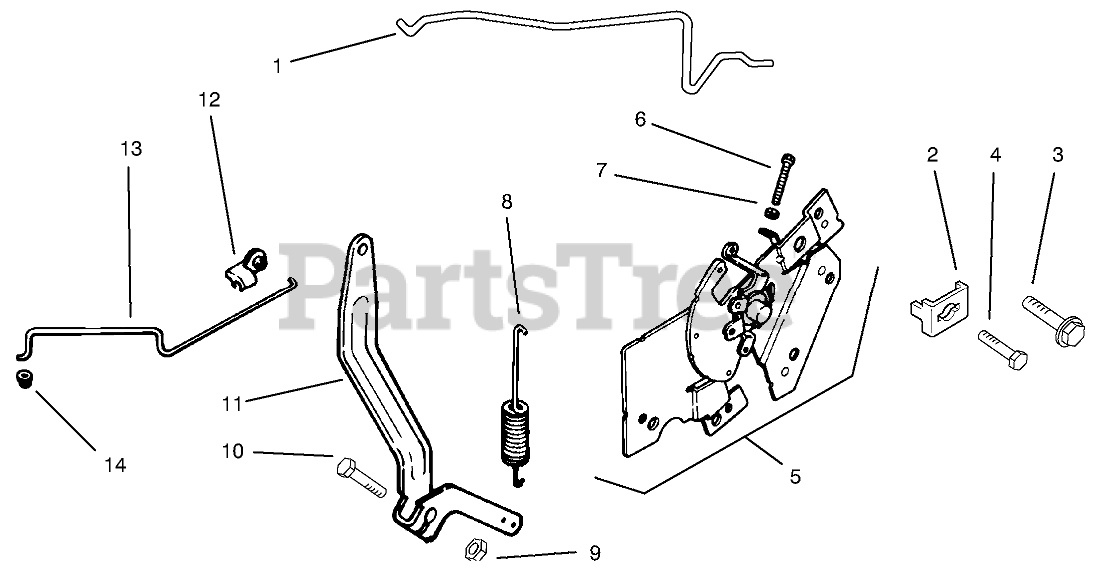

ENGINE CONTROLS Parts Diagram

  • Title

1

1207907

Linkage-Choke

$

$

Not available

2

1223701

Clamp

$

$

Not available

3

Kohler M-0664020

Screw Socket

$

$

Not available

4

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

5

1253602

Control-ASM INC 6-7

$

$

Not available

6

Kohler M-0401030

Screw
(Superseded to M-401030-S)

Note: Included in a service kit or in an assembly

$3.49

$

In Stock, only 1 left!

0

7

Kohler M-0446030

Nut
(Superseded to M-446030-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, Qty 9

0

8

5208907

Spring-Governor

$

$

Not available

9

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 17

0

10

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

11

1209005

Lever-Governor

$

$

Not available

12

2515811

Bushing-Linkage

$

$

Not available

13

1207901

Linkage-Throttle

$

$

Not available

14

2515808

Bushing-Linkage

$

$

Not available
