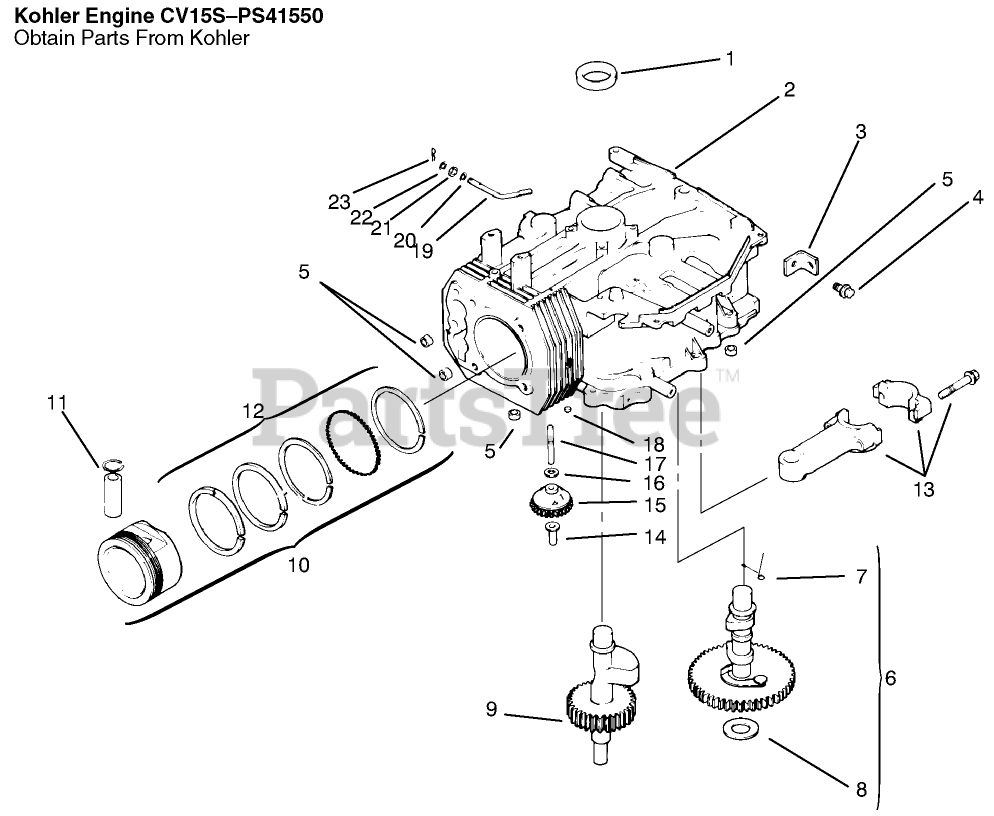

72047 (265-6) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) Crankcase Parts Diagram

Lawn & Garden Tractor

Crankcase Parts Diagram

  • Title

1

Toro 12 032 03

Seal-Crankshaft (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

2

Toro 12 522 18

Block-Short

$

$

Currently unavailable

3

Toro 12_445_02

Strap-Lifting (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

4

Toro M-0839025

Screw M8x1.25x22 (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

5

Toro 12_380_03

Pin-Dowel

$

$

Currently unavailable

6

Toro 12 755 49

Kit-Camshaft INC 7-8 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

7

12_089_18

Spring-Actuating (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

Toro 12_422_07

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_08

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_09

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_10

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_11

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_12

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_13

Shim-Camshaft

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

Toro 12 144 27

Shaft-Balance

$

$

Currently unavailable

10

Toro 12 874 07

Piston ASM STD Incl 11-2

$

$

Currently unavailable

10

Toro 12 874 08

Piston ASM .25 Incl 11-2

$

$

Currently unavailable

10

Toro 12 874 09

Piston ASM .50 Incl 11-2

$

$

Currently unavailable

11

12_018_02

Retainer-Piston Pin (Only On: 72042, 72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

Toro 12 018 07

Ring Set STD

$

$

Currently unavailable

12

Toro 12 018 08

Ring Set .25

$

$

Currently unavailable

12

Toro 12 018 09

Ring Set .50

$

$

Currently unavailable

13

Toro 12 067 05

Rod Connecting STD

$

$

Currently unavailable

13

Toro 12 067 06

Rod Connecting .25

$

$

Currently unavailable

14

Toro 12_380_01

Pin-Governor

$

$

Currently unavailable

15

Toro 12 043 05

Gear-Governor ASM (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

16

Toro M-0631005

Washer

$

$

Currently unavailable

17

12_144_02

Shaft-Govenor Gear

$

$

Not available

18

Toro 52_139_09

Cup

$

$

Currently unavailable

19

Toro 12 755 64

Kit-Governor Cross

$

$

Currently unavailable

20

Toro M-0631015

Washer, plain 6 mm

$

$

Currently unavailable

21

12_032_01

Seal

$

$

Not available

22

Toro X-25-102

Washer

$

$

Currently unavailable

23

Toro 12 154 05

Clip-Hitch Pin

$

$

Currently unavailable

Toro 12 722 59

Gasket Set

Note: Not illustrated

$

$

Currently unavailable
