72049 (265-6) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) FRAME ASSEMBLY Parts Diagram

Lawn & Garden Tractor

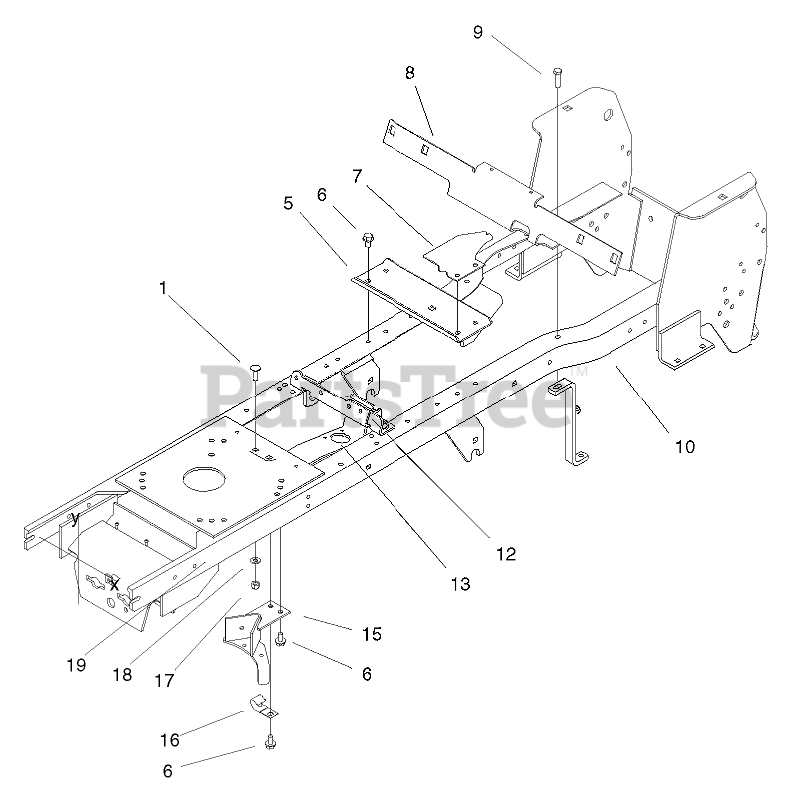

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

5

Toro 92-6868-03

BRACKET-IDLER PLATE

$41.99

$

Usually ships in 3-6 days

0

6

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

7

Toro 92-6964-03

BRACKET-HOC GAGE

$

$

Not available

8

Toro 100-1341-03

FENDER-SUPPORT

$

$

Not available

9

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

10

Toro 100-1345-03

FRAME W.A.

$1586.99

$

Usually ships in 3-6 days

0

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 10

0

13

Toro 100-3522-03

STEERING BRACKET W.A.

$168.99

$

Usually ships in 3-6 days

0

15

Toro 100-3526-03

PTO STOP ASM

$

$

Not available

16

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.99

$

In Stock, only 1 left!

0
