72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) Engine Controls Assembly Parts Diagram

Lawn & Garden Tractor

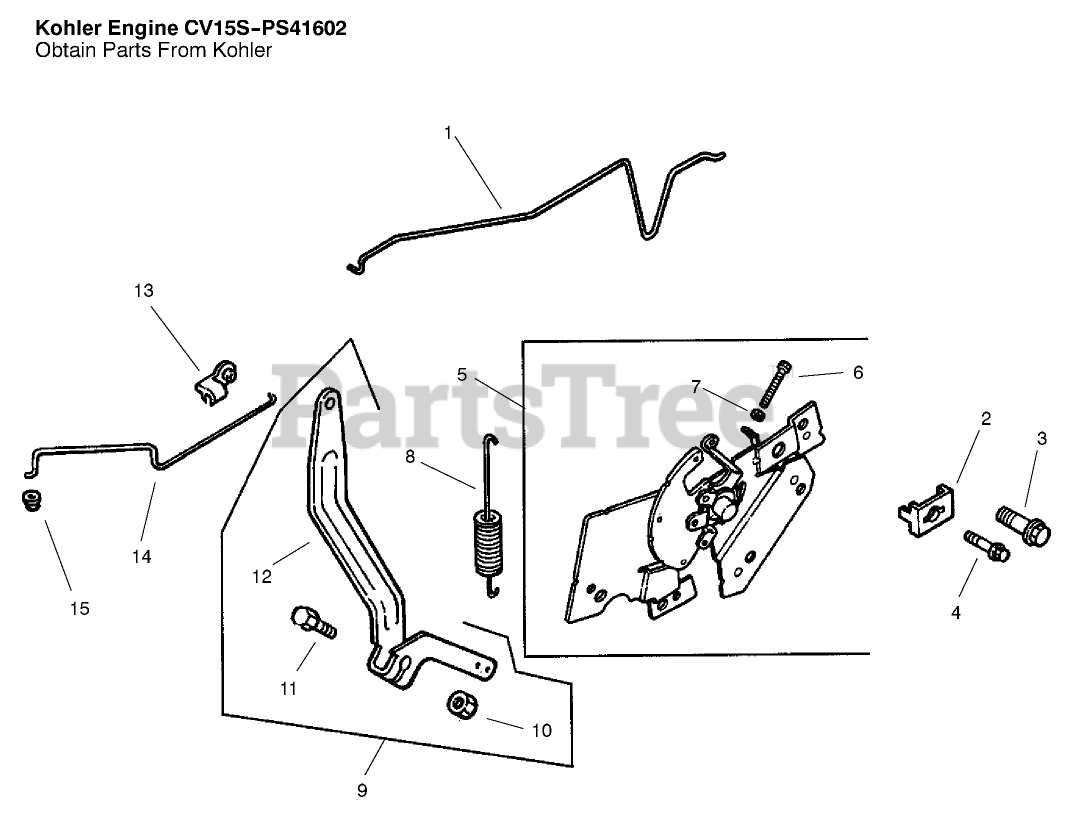

Engine Controls Assembly Parts Diagram

  • Title

1

12_079_07

Linkage-Choke (Only On: 72042,72043,72062,72063)

$

$

Not available

2

Toro 12_237_01

Clamp

$

$

Currently unavailable

3

Toro M-545016

Screw-HHF (M5x0.8x16)

$

$

Currently unavailable

4

Toro M-664020

Screw-Lobe Socket

$

$

Currently unavailable

5

Toro 12 536 02

Control-ASM INC 6-7 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

6

Toro M-401030

Screw-HH

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro M-446030

Nut-Hex

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 52 089 07

Spring-Governor (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

9

Toro 12 755 83

Set-Gasket

$

$

Currently unavailable

10

Toro 12 100 07

Nut

$

$

Currently unavailable

11

Toro 52 211 04

Bolt

$

$

Currently unavailable

12

Toro 12 090 28

Lever-Governor

$

$

Currently unavailable

13

Toro 25_158_11

Bushing-Linkage

$

$

Currently unavailable

14

Toro 12 079 01

Linkage-Throttle (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

15

Toro 25_158_08

Bushing

$

$

Currently unavailable
