72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) Fuel System Assembly Parts Diagram

Lawn & Garden Tractor

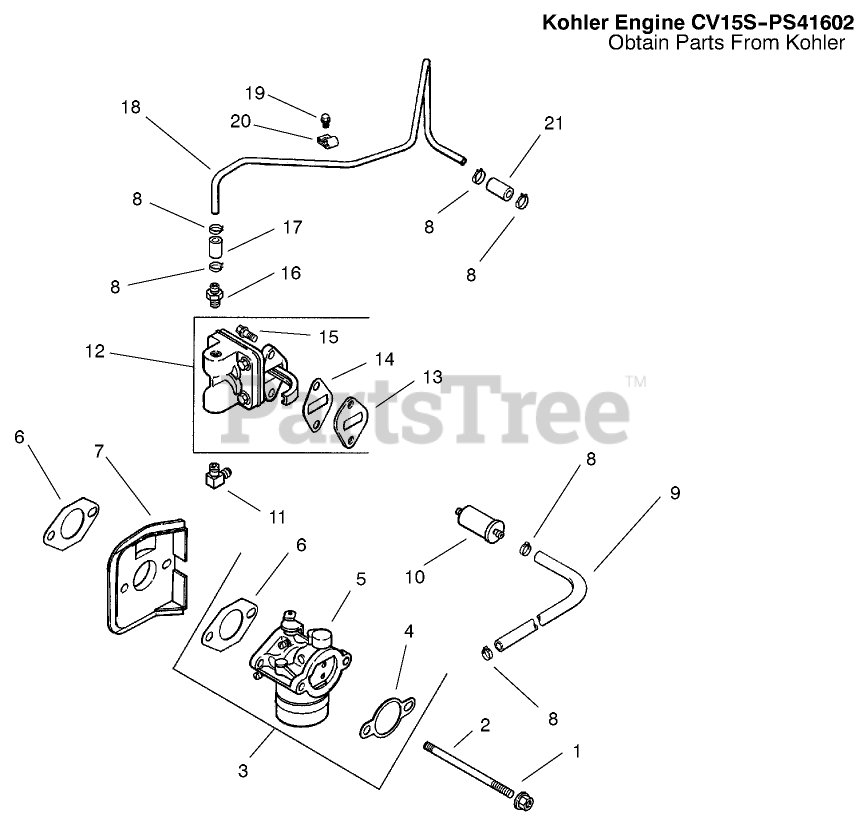

Fuel System Assembly Parts Diagram

  • Title

1

Toro M-641060

Nut (M6x1.0)

$

$

Currently unavailable

2

Toro M-629116

Stud M6x1.0x116

$

$

Currently unavailable

3

Toro 12 853 82

Kit-Carburatorw/Gasket (incl. 4-6)

$

$

Currently unavailable

4

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 12 053 82

Carurator ASM

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

6

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro 12 265 04

Deflector-Heat

$

$

Currently unavailable

8

Toro 25 237 14

Clamp-Hose

$

$

Currently unavailable

9

Toro 1235310

Line-Fuel

$

$

Currently unavailable

10

Toro 25_050_02

Filter-Fuel (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

11

Toro 25 155 02

Connector

$

$

Currently unavailable

12

Toro 12_559_01

Kit-Pump INCL 13-14 (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

13

12_112_05

Spacer-Fuel Pump

Note: Included in a service kit or in an assembly

$

$

Not available

14

Toro 25_041_09

Gasket-Fuel Pump (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

15

Toro M-645020

Screw-HF (M6x1.0x20)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

16

Toro 25 326 03

Connector-Straight

$

$

Currently unavailable

17

Toro 12_353_01

Line-Fuel 1.25 Inch (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

18

Toro 12 123 19

Line-Fuel

$

$

Currently unavailable

19

Toro M-545010

Screw (M5x0.8x10)

$

$

Currently unavailable

20

Toro 12 154 01

Clamp-Fuel Line (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

21

Toro 25 353 02

Line-Fuel 3" (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

Toro 12_757_02

Kit-Float (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 03

Kit-Carburetor Repair

Note: Not illustrated

$

$

Currently unavailable
