72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) Brake And Clutch Pedal Assembly Parts Diagram

Yard Tractor

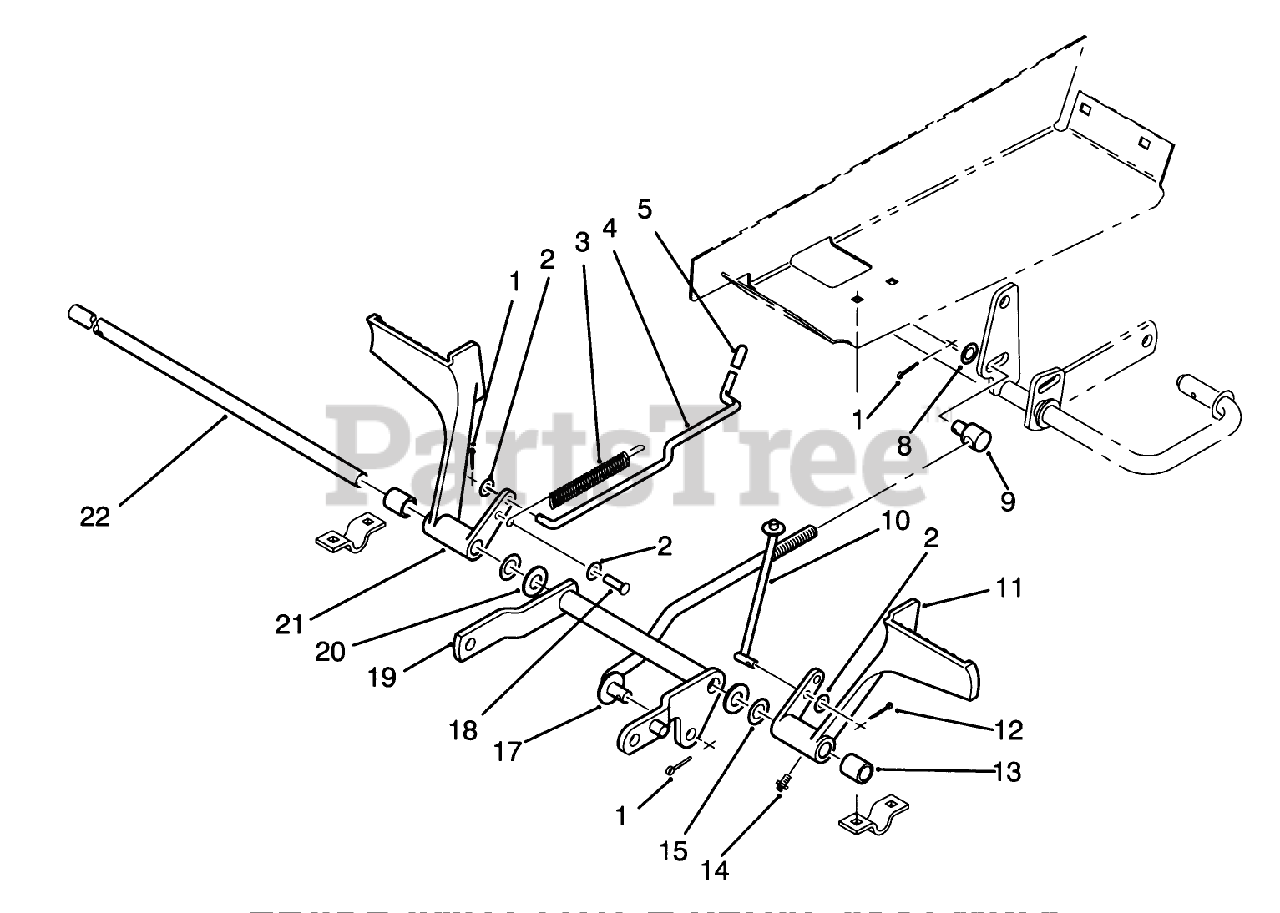

Brake And Clutch Pedal Assembly Parts Diagram

  • Title

1

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

3

Toro 78-9200

SPRING-BRAKE

$47.99

$

Usually ships in 3-6 days

0

4

Toro 78-6120

ROD-BRAKE LOCK

$

$

Not available

5

Toro 111439

GRIP

$

$

Not available

8

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

9

Toro 8870

DISCONTINUED

$

$

Not available

10

Toro 78-9730

DISCONTINUED

$

$

Not available

11

Toro 78-8180

See Supercession: 78-8180-03
(Superseded to 78-8180-03)

$

$

Not available

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 110015

SPACER

$

$

Not available

14

Toro 83-2750

See Supercession: 302-5
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

15

Toro 111712

WASHER-WAVE

$

$

Not available

17

Toro 78-2431

ROD

$

$

Not available

18

Toro 932957

See Supercession: 283-61
(Superseded to 283-61)

$2.49

$

In Stock, only 2 left!

0

19

Toro 78-2112

See Supercession: 92-6855-03
(Superseded to 92-6855-03)

$

$

Not available

20

Toro 920215

See Supercession: 9202154
(Superseded to 9202154)

$3.49

$

In Stock, Qty 14

0

21

Toro 117234

See Supercession: 93-3228
(Superseded to 93-3228)

$190.99

$

Usually ships in 3-6 days

0

22

Toro 78-6831

SHAFT

$94.99

$

Usually ships in 3-6 days

0
