72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) REAR WHEEL AND TRANSMISSION ASSEMBLY Parts Diagram

Yard Tractor

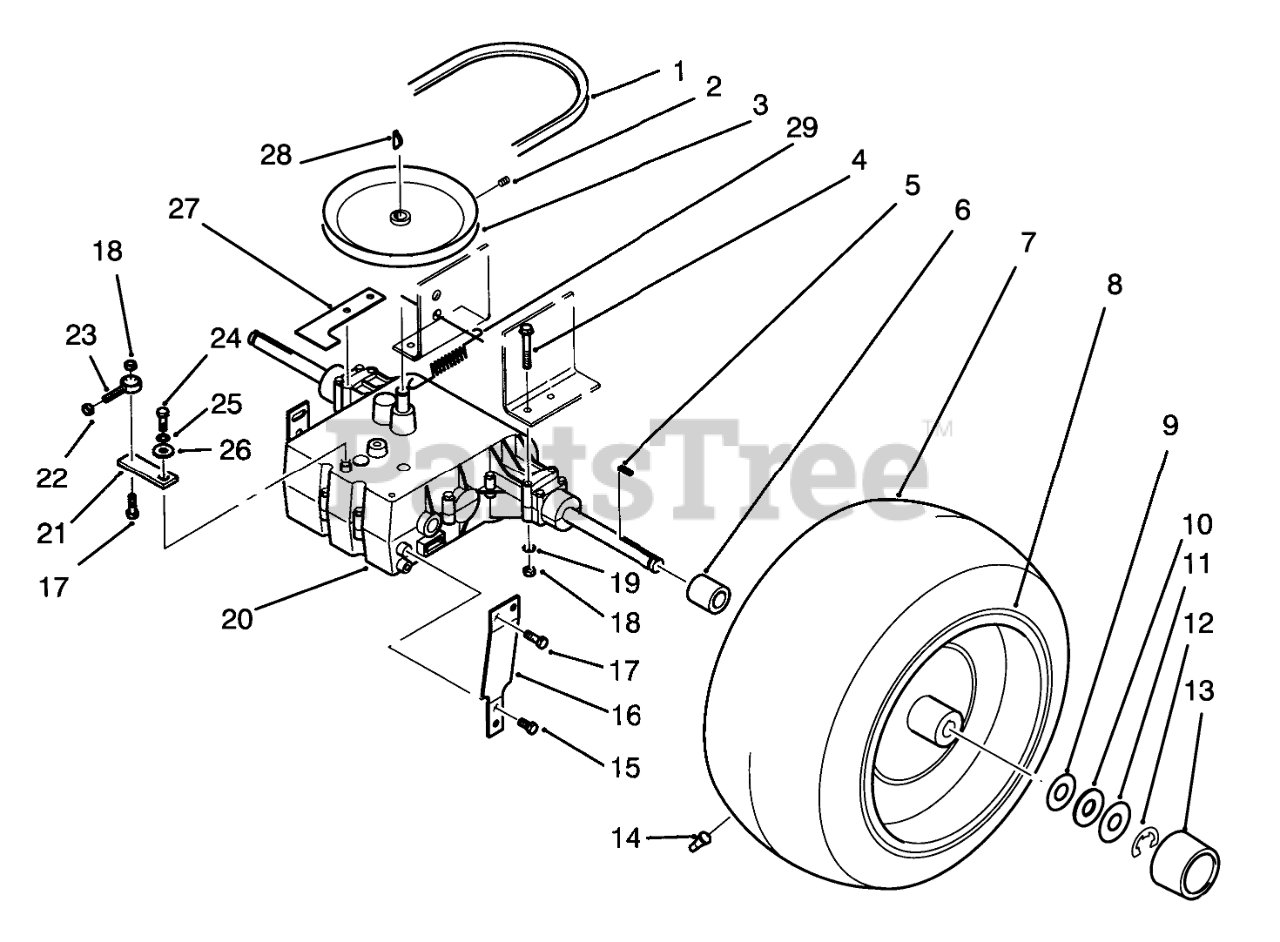

REAR WHEEL AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 111435

BELT-V

$

$

Not available

2

Toro 909543

SCREW-SQ HD SET

$3.49

$

Usually ships in 3-6 days

0

3

Toro 78-6650

PULLEY-TRANS R

$132.99

$

Usually ships in 3-6 days

0

4

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

5

Toro 1120

SQ KEY

$2.99

$

Usually ships in 3-6 days

0

6

Toro 110387

LH AXLE SPACER

$

$

Not available

7

Toro 78-1260

TIRE (20 X 10.00-10)

$262.99

$

Usually ships in 3-6 days

0

Toro 100040

TUBE

Note: Not illustrated

$

$

Not available

8

Toro 110877

Rim

$

$

Currently unavailable

9

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

11

Toro 109114

WASHER-WHEEL

$3.49

$

In Stock, Qty 9

0

12

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 20+

0

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

14

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

15

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

16

Toro 78-1800

STRAP R

$

$

Not available

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3396-29

Nut

$

$

Currently unavailable

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 78-6880

ASS'Y-TRANS 5-SPEED

$

$

Not available

21

Toro 78-7201

ARM-TRANS. R

$

$

Not available

22

Toro 915084

Nut
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

23

Toro 115575

BALL-END
(Superseded to 2411-52)

$36.99

$

In Stock, only 1 left!

0

24

Toro 329-5

SCREW-HH

$

$

Not available

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 104869

WASHER

$

$

Not available

27

Toro 78-7673

STOP-BRAKE R

$

$

Not available

28

Toro 937225

KEY-HI-PRO

$4.99

$

In Stock, only 1 left!

0

29

Toro 116792

SPRING-EXTENSION

$10.99

$

Usually ships in 3-6 days

0

Toro 78-1250

Wheel & Tire Assembly (Incl. Ref. #7, 8 & 14)

Note: Not illustrated

$872.99

$

Usually ships in 3-6 days

0
