72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) TRANSAXLE PEERLESS MODEL NO. 801-062 Parts Diagram

Yard Tractor

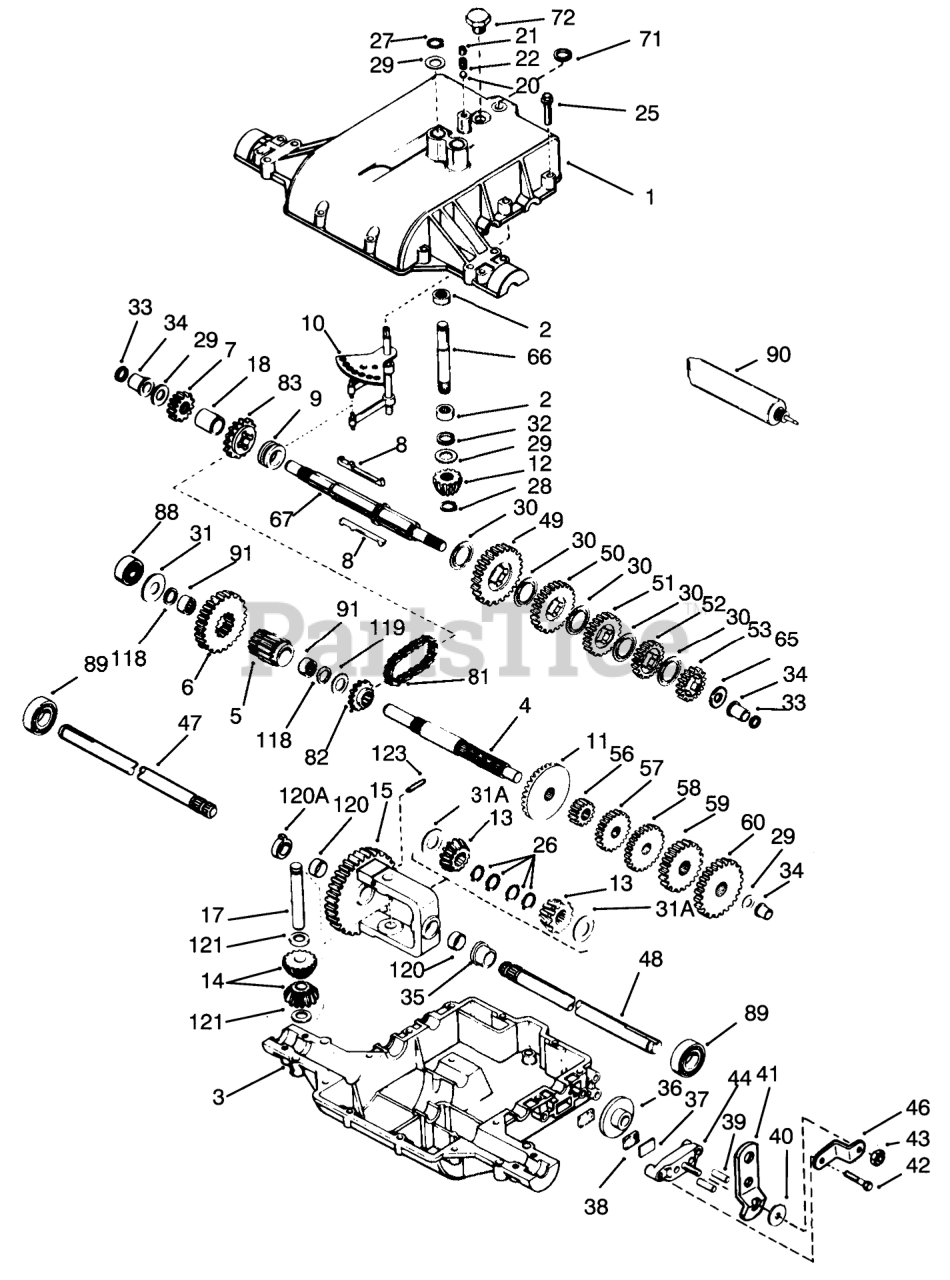

TRANSAXLE PEERLESS MODEL NO. 801-062 Parts Diagram

  • Title
1

Toro 772082

Cover, Transaxle

Note: Note Order Parts From Peerless

$

$

Currently unavailable

2

Toro 780122

Bearing, Needle

Note: Note Order Parts From Peerless

$

$

Currently unavailable

3

Toro 770071A

Case-transaxle

Note: Note Order Parts From Peerless

$

$

Currently unavailable

4

Toro 776204

Shaft, Counter

Note: Note Order Parts From Peerless

$

$

Currently unavailable

5

Toro 778138

Pinion-Output

Note: Note Order Parts From Peerless

$

$

Currently unavailable

6

Toro 778139

Gear-Output

Note: Note Order Parts From Peerless

$

$

Currently unavailable

7

Toro 778136

Gear-Spur 15 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

8

Toro 792089A

Key

Note: Note Order Parts From Peerless

$

$

Currently unavailable

9

Toro 784266

Collar-Shift

Note: Note Order Parts From Peerless

$

$

Currently unavailable

10

Toro 784290

Rod & Fork Assembly

Note: Note Order Parts From Peerless

$

$

Currently unavailable

11

Toro 778154

Gear-Bevel, 42 teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

12

Toro 778153

Bevel Pinion-Input

Note: Note Order Parts From Peerless

$

$

Currently unavailable

13

Toro 778221

Gear Bevel

Note: Note Order Parts From Peerless

$

$

Currently unavailable

14

Toro 778068

Gear Pinion

Note: Note Order Parts From Peerless

$

$

Currently unavailable

15

Toro 778175

Gear Assy., Differential (Incl. 2 of No. 120)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

17

Toro 786034

Drive Pin

Note: Note Order Parts From Peerless

$

$

Currently unavailable

18

Toro 786074

Spacer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

20

Toro 792077

Ball-Steel

Note: Note Order Parts From Peerless

$

$

Currently unavailable

21

Toro 792078

Screw-Set

Note: Note Order Parts From Peerless

$

$

Currently unavailable

22

Toro 792079

Spring

Note: Note Order Parts From Peerless

$

$

Currently unavailable

25

Toro 792073

Ring Set (.020 O S)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

26

Toro 792125

Retaining Ring (pkg of 2)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

27

Toro 792035

Ring-Snap

Note: Note Order Parts From Peerless

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

29

Toro 780072

Washer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

30

Toro 780108

Washer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

31

Toro 780113

Washer-Flat

Note: Note Order Parts From Peerless

$

$

Currently unavailable

31A

Toro 780001

Washer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

32

Toro 788057

Seal, Square cut

Note: Note Order Parts From Peerless

$

$

Currently unavailable

33

Toro 788051

Ring-Square Cut

Note: Note Order Parts From Peerless

$

$

Currently unavailable

34

Toro 780105A

Bushing-Flange

Note: Note Order Parts From Peerless

$

$

Currently unavailable

35

Toro 780118A

Bushing-Flanged

Note: Note Order Parts From Peerless

$

$

Currently unavailable

36

Toro 790003

Disk

Note: Note Order Parts From Peerless

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

Note: Note Order Parts From Peerless

$

$

Currently unavailable

38

Toro 790006

Brake Pad

Note: Note Order Parts From Peerless

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

Note: Note Order Parts From Peerless

$

$

Currently unavailable

40

Toro 792076

Washer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

41

Toro 790013

Lever-Brake

Note: Note Order Parts From Peerless

$

$

Currently unavailable

42

Toro 792073

Ring Set (.020 O S)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

43

Toro 792075

Locknut

Note: Note Order Parts From Peerless

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

Note: Note Order Parts From Peerless

$

$

Currently unavailable

46

Toro 786086

Bracket

Note: Note Order Parts From Peerless

$

$

Currently unavailable

47

Toro 774658

Axle (13-1/4" Long) (Incl. No. 26)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

48

Toro 774657

Axle (15-1/8" Long) (Incl. No. 26)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

49

Toro 778146A

Gear-Spur, 37 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

50

Toro 778124A

Gear-Spur, 30 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

51

Toro 778123A

Gear-Spur, 25 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

52

Toro 778122A

Gear-Spur (22 teeth)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

53

Toro 778121A

Gear-Spur 20 teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

56

Toro 778145

Gear-Spur, 12 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

57

Toro 778126A

Gear-Spur, 20 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

58

Toro 778127A

Gear-Spur, 25 Teeth

Note: Note Order Parts From Peerless

$

$

Currently unavailable

59

Toro 778128A

Gear-Spur (28 teeth)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

60

Toro 778129A

Gear-Spur (30 teeth)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

65

Toro 780109

Washer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

66

Toro 776135

Shaft-Input

Note: Note Order Parts From Peerless

$

$

Currently unavailable

67

Toro 776184A

Shaft, Brake

Note: Note Order Parts From Peerless

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

Note: Note Order Parts From Peerless

$

$

Currently unavailable

72

Toro 792074

Plug

Note: Note Order Parts From Peerless

$

$

Currently unavailable

81

Toro 786062A

Chain-Roller

Note: Note Order Parts From Peerless

$

$

Currently unavailable

82

Toro 786061

Sprocket 10t

Note: Note Order Parts From Peerless

$

$

Currently unavailable

83

Toro 786060

Sprocket (14 Teeth)

Note: Note Order Parts From Peerless

$

$

Currently unavailable

88

Toro 780121

Bearing, Ball

Note: Note Order Parts From Peerless

$

$

Currently unavailable

89

Toro 780119

Bearing-Ball

Note: Note Order Parts From Peerless

$

$

Currently unavailable

90

Toro 788067b

Grease 32 Oz

Note: Note Order Parts From Peerless

$

$

Currently unavailable

91

Toro 780112

Bearing-Needle

Note: Note Order Parts From Peerless

$

$

Currently unavailable

118

Toro 788053

Ring-Square Cut

Note: Note Order Parts From Peerless

$

$

Currently unavailable

119

Toro 780114

Washer-Flat

Note: Note Order Parts From Peerless

$

$

Currently unavailable

120

Toro 780064

Bushing

Note: Note Order Parts From Peerless

$

$

Currently unavailable

120A

Toro 780120

Bushing

Note: Note Order Parts From Peerless

$

$

Currently unavailable

121

Toro 780065

Thrust Washer

Note: Note Order Parts From Peerless

$

$

Currently unavailable

123

Toro 792040

Pin-Roll

Note: Note Order Parts From Peerless

$

$

Currently unavailable
